Overview

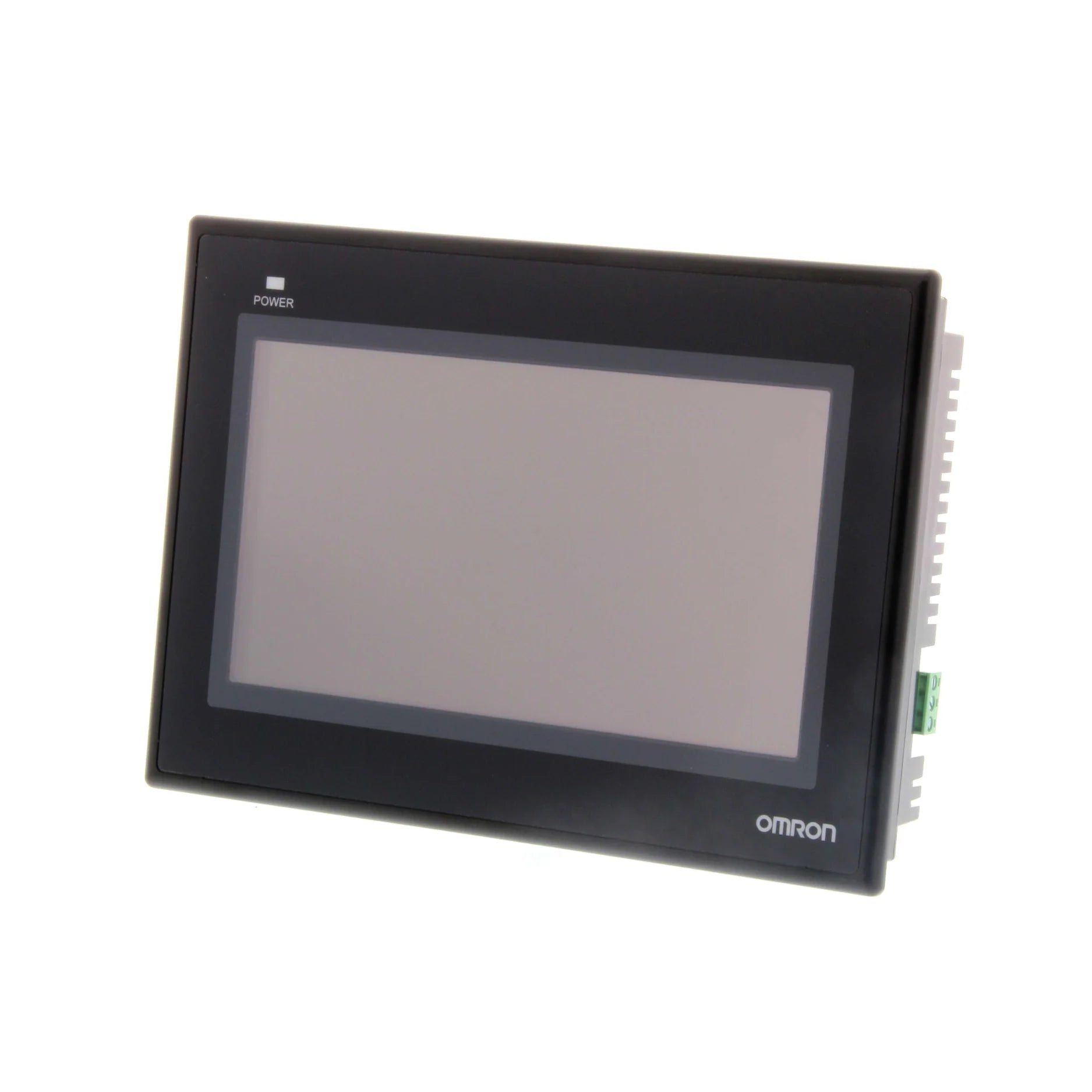

The Omron NB7W-TW01B-V1 is a feature-rich 7-inch TFT color touchscreen Human-Machine Interface (HMI) designed to provide intuitive and efficient control in industrial automation systems. With a resolution of 800×480 pixels, built-in Ethernet and USB host ports, and a robust IP65-rated front panel, this HMI ensures reliable performance and seamless integration into various industrial environments.

Key Features

• Display: 7-inch TFT color LCD with 65,536 colors and 800×480 pixel resolution, delivering clear and vibrant visuals.

• Touchscreen: Analog resistive membrane type with a resolution of 1024×1024 and a lifespan of 1 million touch operations.

• Connectivity:

  • Ethernet Port: 10/100 Base-T for network communication.

  • USB Host Port: Supports USB memory devices for data transfer and storage.

  • Serial Ports: Two RS-232 ports and one RS-422/485 port for versatile device connections.

• Backlight: Long-life LED with an estimated lifespan of 50,000 hours at normal temperature (25°C).

• Durability: IP65-rated front panel, offering protection against dust and water ingress.

• Compact Design: Dimensions of 148 mm (H) × 202 mm (W) × 46 mm (D), with a panel cutout size of 137 mm (H) × 191 mm (W).

• Operating Temperature: Suitable for environments ranging from 0°C to 50°C.

• Power Supply: Operates on 24 VDC with a power consumption of 7 W.

Technical Specifications

• Model Number: NB7W-TW01B-V1

• Display Type: 7-inch TFT color LCD

• Resolution: 800×480 pixels

• Number of Colors: 65,536

• Touch Panel Type: Analog resistive membrane

• Touch Panel Resolution: 1024×1024

• Touch Panel Lifespan: 1 million operations

• Ethernet Port: 1 (10/100 Base-T)

• USB Host Port: 1 (Type A, USB 2.0 full speed, output power 5 V, 150 mA)

• Serial Ports:

  • COM1: RS-232C

  • COM2: RS-232C/RS-422/RS-485 (not isolated)

• Backlight Type: LED

• Backlight Lifespan: 50,000 hours at 25°C

• Front Panel Protection: IP65

• Dimensions: 148 mm (H) × 202 mm (W) × 46 mm (D)

• Panel Cutout Dimensions: 137 mm (H) × 191 mm (W)

• Weight: Approximately 705 g

• Operating Temperature Range: 0°C to 50°C

• Storage Temperature Range: -20°C to 60°C

• Operating Humidity Range: 10% to 90% RH (non-condensing)

• Power Supply Voltage: 24 VDC (20.4 to 27.6 VDC)

• Power Consumption: 7 W

• Certifications: CE, cUL508, KC

Applications

• Manufacturing: Provides operators with real-time data visualization and control over production processes.

• Packaging: Facilitates user-friendly interfaces for packaging machinery, enhancing efficiency and reducing downtime.

• Process Control: Enables monitoring and control of various process parameters in industries such as chemical, pharmaceutical, and food processing.

• Building Automation: Serves as an interface for managing HVAC systems, lighting, and other building controls.

Why Choose Omron NB7W-TW01B-V1?

• High-Quality Display: The 7-inch TFT screen offers clear and vibrant visuals, enhancing user experience.

• Versatile Connectivity: Multiple communication ports, including Ethernet and USB host, allow seamless integration with various devices and networks.

• Durable and Reliable: The IP65-rated front panel ensures durability in harsh industrial environments.

• User-Friendly Interface: The resistive touchscreen provides responsive and accurate control, suitable for various applications.

• Compact and Efficient: Its compact design allows for easy installation in space-constrained panels, while the efficient power consumption ensures cost-effectiveness.
