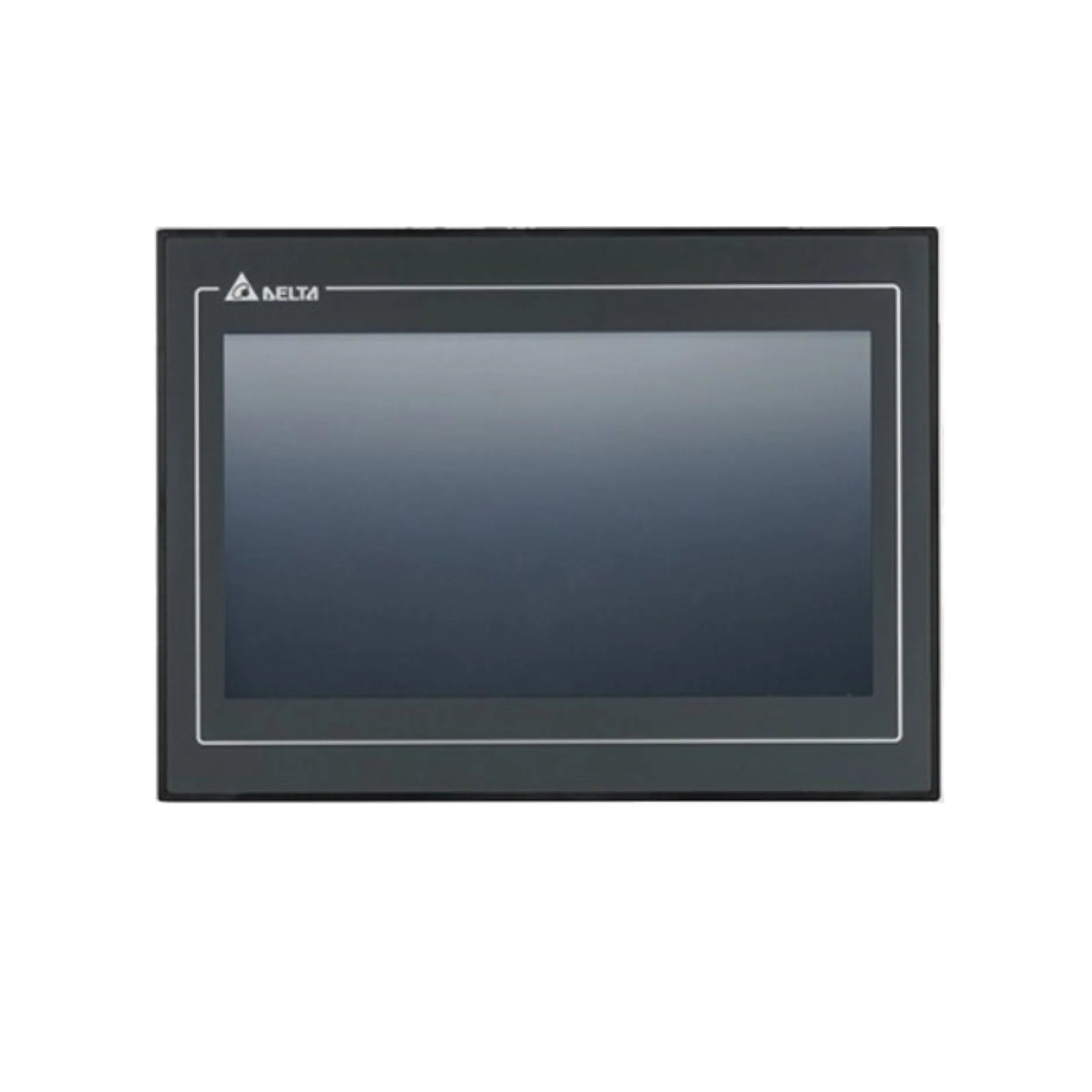

Delta DOP-115WX 15"

Delta DOP-115WX | 15-Inch Advanced HMI – 1024x768 Resolution, Dual Ethernet Ports, DOP-100 Series

Overview

The Delta DOP-115WX is a 15-inch Advanced Human-Machine Interface (HMI) from Delta's DOP-100 series, designed to provide intuitive and efficient control for industrial automation systems. Featuring a 1024x768 pixel 24-bit color TFT LCD, this HMI ensures clear and vibrant visuals for operators.

Key Features

• Display: 15-inch TFT LCD with 1024x768 pixel resolution and 24-bit color depth

• Processor: Dual Core 1 GHz MCU for high-performance operation

• Memory:

  • ROM: 8 GB

  • RAM: DDR3 1000 MHz 1 GB

• Communication Ports:

  • Ethernet Ports: 2 built-in ports (1 Gbps and 100 Mbps)

  • Serial Ports: 4 sets supporting RS-232, RS-422, and RS-485 communication

• USB Interfaces:

  • USB Host: Supports connection to USB devices such as disks, printers, and mice

  • USB Client: For data transfer and download

• SD Card Slot: Allows for additional storage and data logging

• Built-in RTC: Real-time clock for time-stamping and scheduling tasks

• Mounting: Panel mount with IP65-rated front panel for protection against dust and water

• Operating Temperature: 0°C to 50°C

• Certifications: CE, UL

Technical Specifications

• Model Number: DOP-115WX

• Series: DOP-100

• Display Size: 15 inches

• Resolution: 1024 x 768 pixels

• Color Depth: 24-bit

• Backlight: LED with a half-life of over 50,000 hours at room temperature (25°C)

• Brightness: 450 cd/m² (Typ.)

• Touchscreen: 4-wire resistive touchscreen with over 10 million operations

• Buzzer: Multi-tone frequency (2K – 4K Hz) / 85 dB

• Network Interfaces:

  • LAN1: 1000 Mbps

  • LAN2: 100 Mbps

• Serial Communication Ports:

  • COM1: RS-232 (supporting flow control) / RS-485

  • COM2: RS-422 / RS-485

  • COM3: RS-232 (supporting flow control) / RS-485

  • COM4: RS-422 / RS-485

• USB Ports:

  • USB Host: 1

  • USB Client: 1 Mini USB

• SD Card Slot: 1

• Power Supply: DC +24V (-15% to +15%)

• Power Consumption: Approximately 5.6W

• Cooling Method: Natural cooling

• Protection Rating: IP65 (front panel)

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -20°C to 60°C

• Dimensions (W x H x D): 387.7 mm x 295.7 mm x 63.5 mm

• Weight: Approximately 0.5 kg

• Certifications: CE, UL

Applications

• Industrial Automation: Facilitates user-friendly interfaces for machinery and process control

• Manufacturing: Enables operators to monitor and control production lines efficiently

• Building Management: Integrates with systems for HVAC, lighting, and security control

• Energy Management: Provides interfaces for monitoring and controlling power systems

Why Choose Delta DOP-115WX?

• High-Performance Processing: Dual Core 1 GHz MCU ensures smooth and responsive operation

• Versatile Communication: Multiple Ethernet and serial ports provide flexible connectivity options

• Robust Design: IP65-rated front panel offers durability in industrial environments

• Expandable Storage: SD card slot allows for additional data storage and logging capabilities
