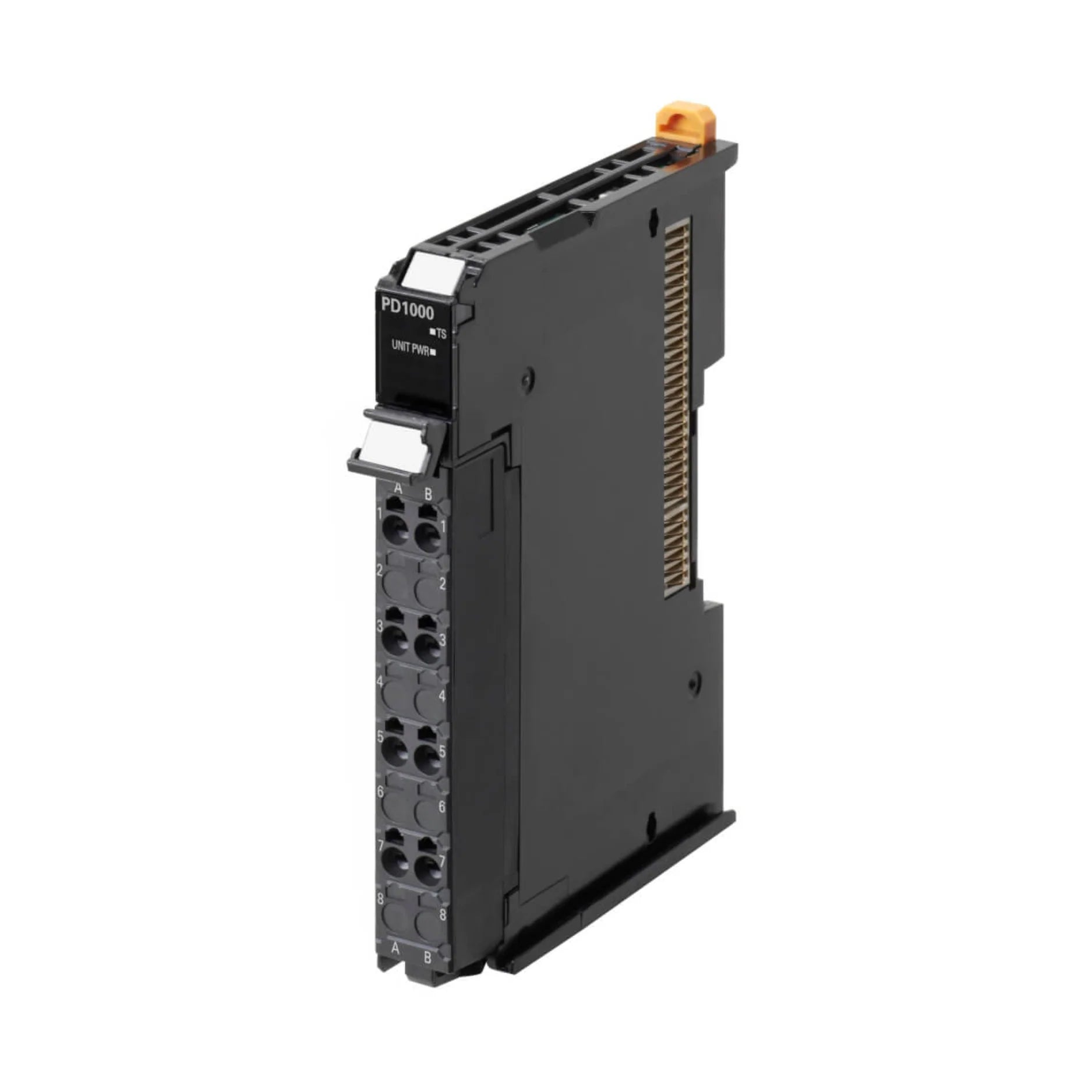

Omron NX-PD1000

Your Price:

$160.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

Omron NX-PD1000 | Additional NX Unit Power Supply Unit for NX Series Systems

Overview

The Omron NX-PD1000 is a power supply module designed to provide additional power to NX Series systems. With a 24V DC input and 10 W output, it ensures stable operation of NX units when the system's power requirements exceed the capacity of the primary power supply. Its compact 12 mm width and screwless push-in terminal block facilitate easy installation and wiring.

Key Features

Power Supply Voltage: 24V DC (operating range: 20.4 to 28.8 VDC)
Output Capacity: Provides up to 10 W for NX Bus power supply
Efficiency: 70% power conversion efficiency
Compact Design: Slim 12 mm width saves panel space
Easy Wiring: Equipped with an 8-terminal screwless push-in terminal block
Mounting: DIN rail mounting compatible
Non-Isolated: Designed for applications where isolation is not required

Technical Specifications

Model Number: NX-PD1000
Series: NX Series
Power Supply Voltage: 24V DC (20.4 to 28.8 VDC)
NX Bus Power Supply Capacity: 10 W max
Power Conversion Efficiency: 70%
Unwired Terminal Current Capacity: 4 A max (including through-wiring)
External Connection Terminals: Screwless push-in terminal block (8 terminals)
Dimensions: 12 mm (W) × 100 mm (H) × 71 mm (D)
Weight: Approximately 65 g
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +70°C
Operating Humidity: 10% to 95% (non-condensing)
Mounting Method: DIN rail
Isolation Method: Non-isolated
Certifications: CE, cULus, KC, NK, Lloyd

Applications

Industrial Automation: Provides additional power to NX Series I/O systems in manufacturing environments
Process Control: Ensures stable operation of control systems requiring extra power capacity
Machine Automation: Supports expansion of machine control systems by supplying necessary power to additional NX units

Why Choose Omron NX-PD1000?

Enhanced Power Capacity: Supplements existing power supplies to meet increased system demands
Space-Saving Design: Slim profile allows for efficient use of control panel space
Simplified Installation: Screwless push-in terminals reduce wiring time and effort
Reliable Performance: Designed to meet industrial standards for durability and efficiency

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron NX Series I/O units, controllers, and accessories to complete your automation system.
