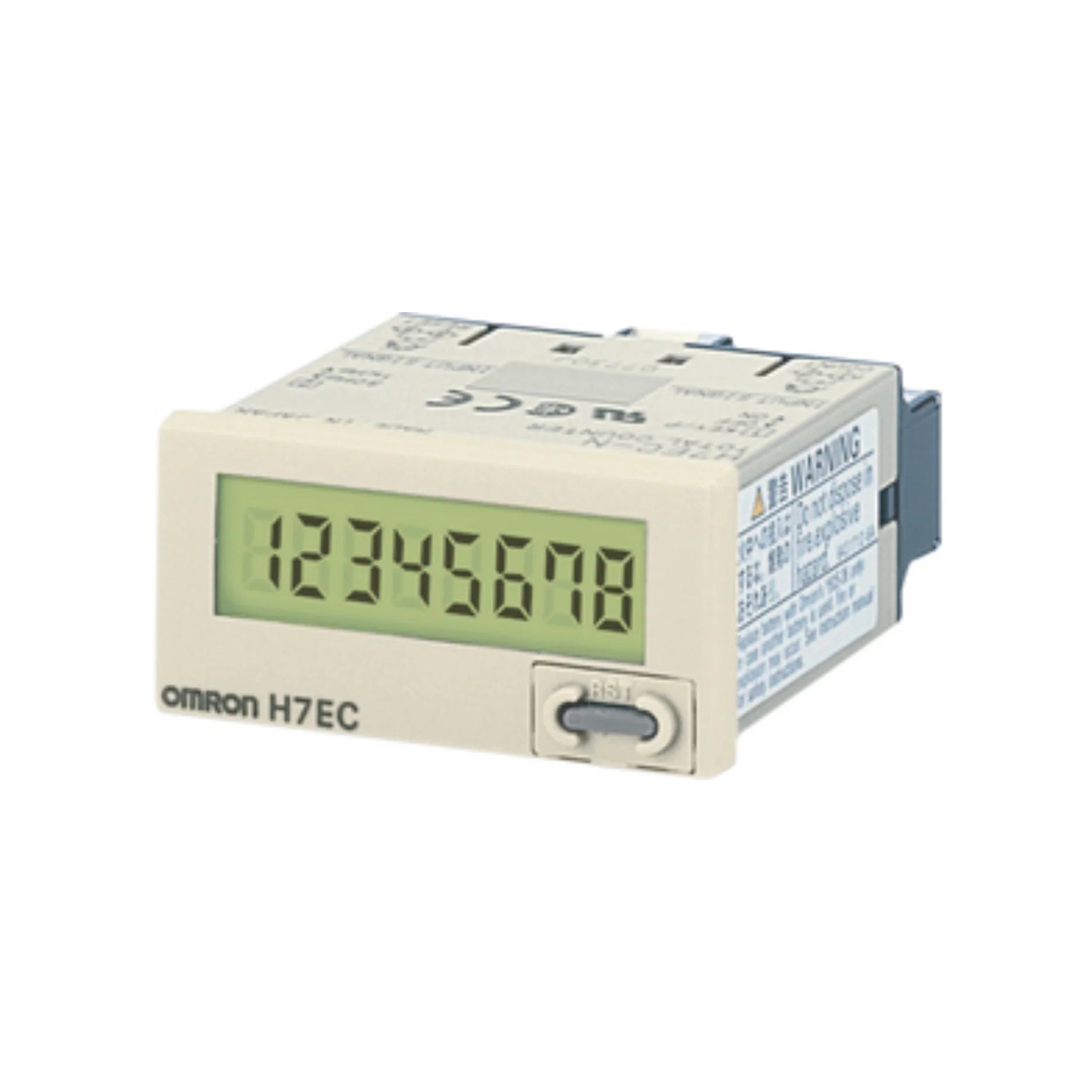

Omron H7EC-N | Self-Powered 8-Digit Totalizing Counter

Overview

The Omron H7EC-N is a compact totalizing counter featuring an 8-digit LCD display. It operates without the need for an external power supply, thanks to its built-in lithium battery, making it suitable for various counting applications where power availability is limited. Its panel-mount design ensures easy integration into equipment and control panels.

Key Features

Display: 8-digit, 7-segment LCD with 8.6 mm character height for clear visibility
Power Supply: Self-powered via built-in lithium battery, eliminating the need for external power
Input Type: No-voltage input with maximum counting speeds of 30 Hz or 1 kHz (switchable)
Reset Options: Supports both manual and external reset functions
Mounting: Panel mount with screw terminal connections for secure installation
Protection Rating: Front panel rated at IP66, providing resistance to dust and water
Compact Design: Dimensions of 48 mm (W) × 24 mm (H) × 48.5 mm (D), saving space in control panels

Technical Specifications

Model Number: H7EC-N
Display Type: LCD, 8 digits
Character Height: 8.6 mm
Input Method: No-voltage input
Maximum Counting Speed: 30 Hz or 1 kHz (selectable)
Reset Method: Manual and external reset
Power Supply: Internal lithium battery (3 V)
Battery Life: Approximately 7 years with continuous input at 25°C
Mounting Method: Panel mount
External Connections: Screw terminals
Operating Temperature: -10°C to +55°C (no condensation or icing)
Storage Temperature: -25°C to +65°C (no condensation or icing)
Operating Humidity: 25% to 85%
Front Panel Protection: IP66, NEMA 4 (indoors)
Dimensions: 48 mm (W) × 24 mm (H) × 48.5 mm (D)
Weight: Approximately 60 g
Certifications: UL863, CSA C22.2 No.14, CE

Applications

Production Counting: Tracks the number of items produced on manufacturing lines
Machine Operations: Monitors machine cycles or operations for maintenance scheduling
Event Counting: Suitable for counting occurrences of specific events in various processes
General Industrial Use: Applicable in any scenario requiring reliable counting without external power

Why Choose Omron H7EC-N?

Self-Powered Convenience: Operates independently of external power sources, enhancing flexibility in installation
High Visibility Display: Large, clear LCD ensures easy reading of counts
Versatile Input Handling: Accommodates no-voltage inputs with selectable counting speeds
Durable and Reliable: Designed to withstand industrial environments with IP66-rated front panel
