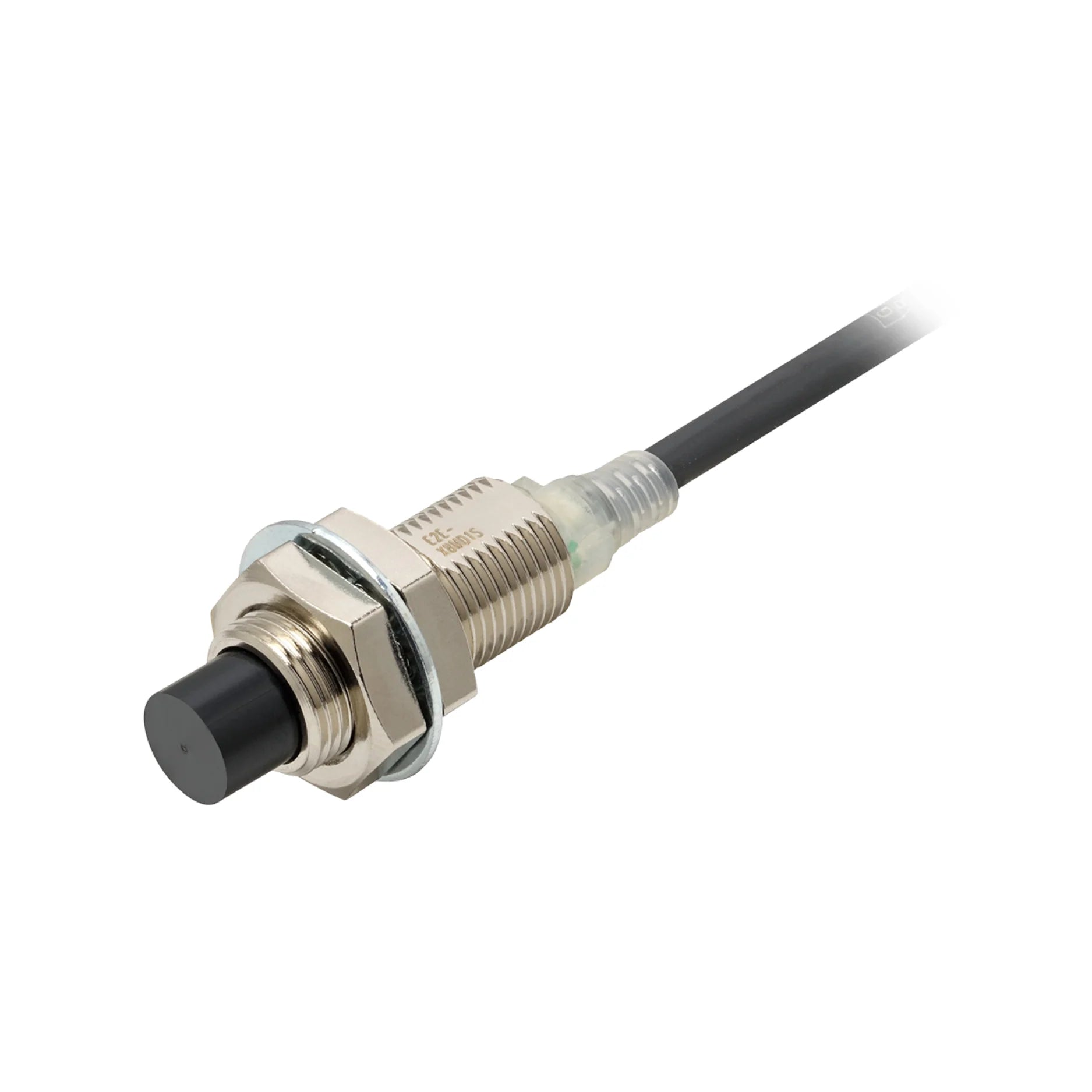

Omron E2E-X8MD1 2M | Reliable 8 mm Unshielded Inductive Sensor for Industrial Automation

Overview

The Omron E2E-X8MD1 2M is a robust inductive proximity sensor designed for reliable detection of ferrous metal objects in industrial environments. Featuring an 8 mm sensing distance, unshielded (non-flush) M12 housing, and NPN normally open (NO) output, this sensor ensures accurate and consistent performance. Its DC 2-wire configuration simplifies wiring, and the 2-meter oil-resistant PVC cable enhances durability in harsh conditions.

Key Features

Sensing Distance: 8 mm (unshielded, non-flush mounting)
Output Configuration: NPN, normally open (NO)
Power Supply: 12 to 24 VDC (operating range: 10 to 30 VDC)
Cable Length: 2 meters, oil-resistant PVC
Housing: M12 threaded, brass-nickel plated
Protection Rating: IP67 for dust-tight and water-resistant operation
Operating Temperature Range: –25°C to +70°C
Response Frequency: 800 Hz
Indicator: Red LED for operation status

Technical Specifications

Model Number: E2E-X8MD1 2M
Sensing Method: Inductive
Installation Type: Unshielded (non-flush)
Standard Sensing Object: Iron, 30 × 30 × 1 mm
Differential Travel: 10% max. of sensing distance
Leakage Current: 0.8 mA max.
Residual Voltage: 3 V max. (load current: 100 mA, cable length: 2 m)
Load Current: 3 to 100 mA
Insulation Resistance: 50 MΩ min. (at 500 VDC)
Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 min
Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock Resistance: 500 m/s², 10 times each in X, Y, and Z directions
Materials:
- Case: Brass-nickel plated
- Sensing Surface: Polybutylene terephthalate (PBT)
- Cable: PVC (oil-resistant)

Applications

Conveyor Systems: Detecting the presence or absence of items on belts.
Automated Assembly Lines: Positioning and end-of-travel detection.
Packaging Machinery: Monitoring components and ensuring correct placement.
Material Handling Equipment: Object detection for sorting and routing.

Why Choose Omron E2E-X8MD1 2M?

Long Sensing Distance: 8 mm range allows for flexible mounting options.
Simplified Wiring: DC 2-wire configuration reduces installation complexity.
Durable Construction: Oil-resistant cable and IP67 rating ensure longevity in harsh environments.
Reliable Performance: High response frequency and stable operation enhance system efficiency.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron controllers, relays, and other automation components to complete your system setup.
