Omron CJ1W-TS562 | High-Precision Temperature Monitoring for CJ-Series PLCs

Overview

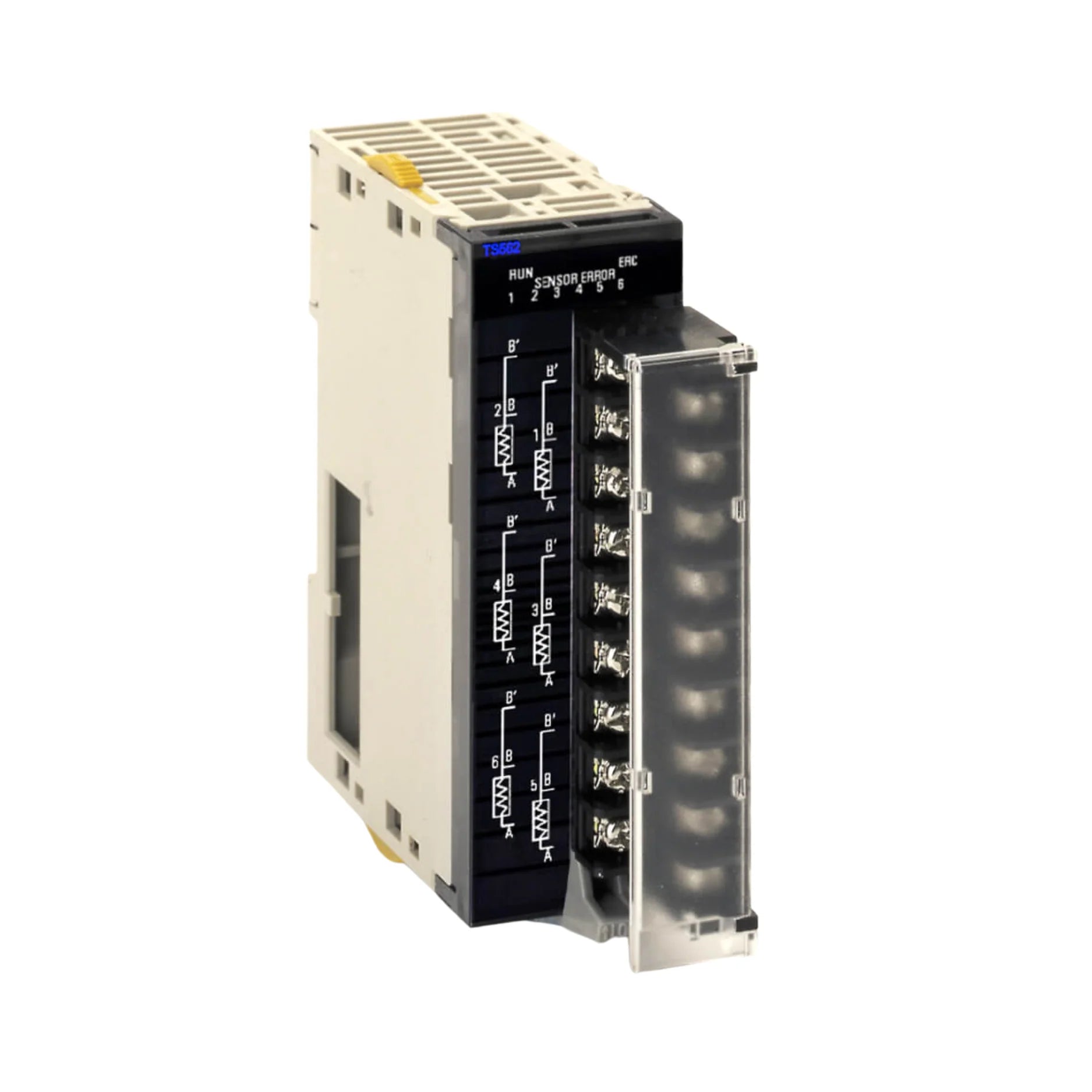

The Omron CJ1W-TS562 is a 6-channel RTD (Resistance Temperature Detector) input module designed to integrate seamlessly with CJ-Series Programmable Logic Controllers (PLCs). It supports Pt100 and Pt1000 sensors, providing high-accuracy temperature measurements with a resolution of 0.1°C, making it ideal for precise thermal monitoring and control in industrial automation systems.

Key Features

• Six RTD Input Channels: Accommodates up to six Pt100 or Pt1000 sensors for comprehensive temperature monitoring.

• High Resolution: Offers 0.1°C measurement resolution, ensuring detailed and accurate temperature readings.

• Wide Measurement Range: Capable of measuring temperatures from -200.0°C to +650.0°C, suitable for various industrial applications.

• Automatic Lead Wire Compensation: Utilizes 3-wire connections to automatically compensate for lead wire resistance, enhancing measurement accuracy.

• Compact Design: Occupies minimal space within the PLC system, facilitating efficient use of control panel real estate.

• Seamless Integration: Designed specifically for CJ-Series PLCs, ensuring straightforward installation and configuration.

Technical Specifications

• Model Number: CJ1W-TS562

• Input Type: RTD (Pt100, Pt1000)

• Number of Inputs: 6

• Measurement Range: -200.0°C to +650.0°C

• Resolution: 0.1°C

• Accuracy: ±0.5% of indicated value or ±0.8°C (whichever is larger) when using 3-wire connection

• Input Response Time: Selectable filtering options with response times ranging from 40 ms to 400 ms per input

• Power Consumption: 250 mA at 5 VDC

• Mounting: DIN rail

• Dimensions: 90 mm (H) × 31 mm (W) × 89 mm (D)

• Weight: Approximately 176 g

• Operating Temperature Range: 0°C to 55°C

• Certifications: CE, cULus

Applications

• Industrial Process Control: Provides accurate temperature data for processes requiring precise thermal regulation.

• HVAC Systems: Monitors temperatures in heating, ventilation, and air conditioning systems to ensure optimal performance.

• Food and Beverage Industry: Ensures temperature consistency in production lines, crucial for product quality and safety.

• Pharmaceutical Manufacturing: Maintains strict temperature control necessary for compliance with industry standards.

• Energy Sector: Monitors temperatures in power generation and distribution systems to prevent overheating and ensure efficiency.

Why Choose Omron CJ1W-TS562?

• Enhanced Accuracy: High-resolution measurements with automatic lead wire compensation provide reliable temperature data.

• Versatile Sensor Compatibility: Supports both Pt100 and Pt1000 sensors, offering flexibility in sensor selection.

• Efficient Integration: Designed for seamless compatibility with CJ-Series PLCs, simplifying system design and implementation.

• Compact and Robust: Space-saving design without compromising on durability or performance.
