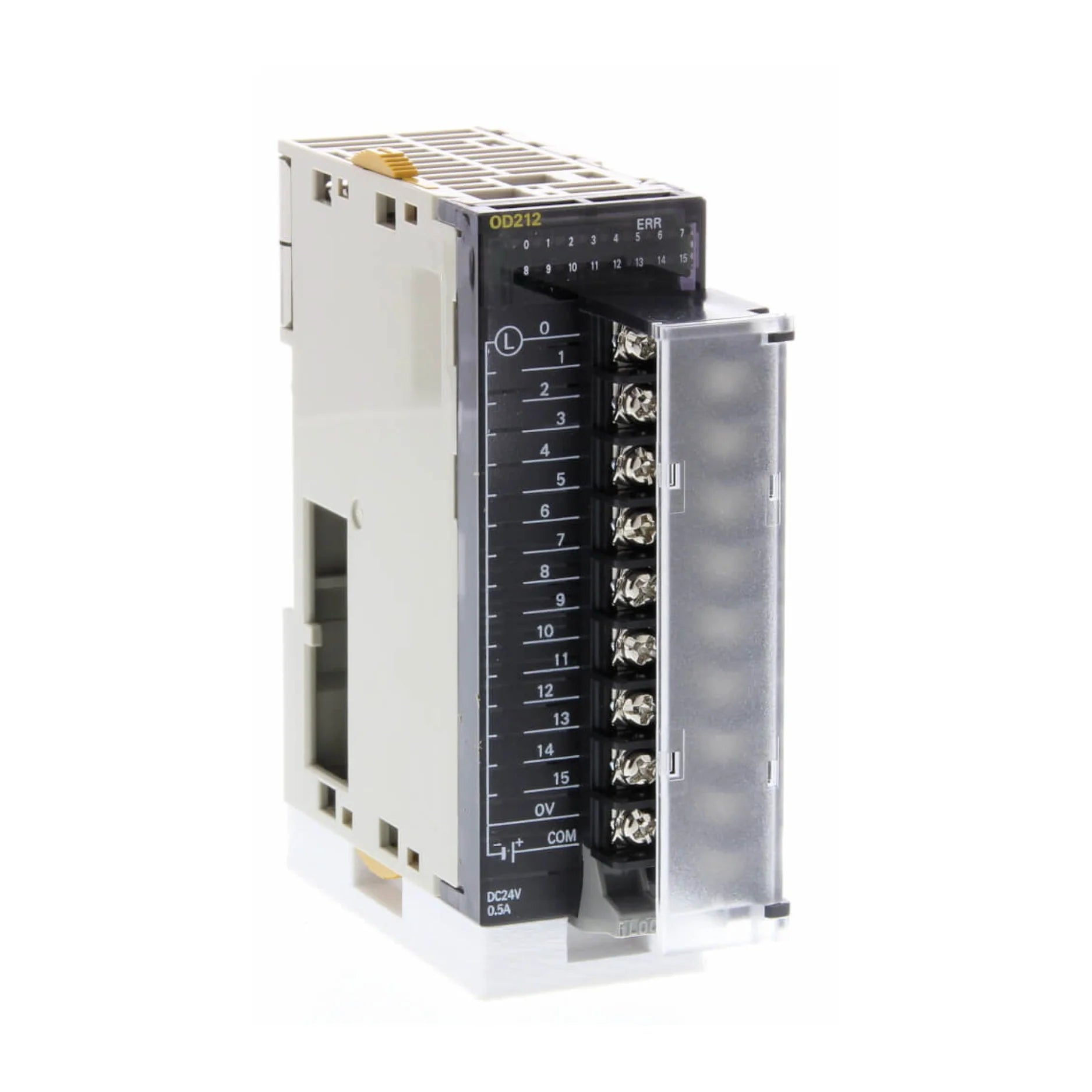

Omron CJ1W-OD212 | High-Performance Digital Output Module for CJ-Series PLCs

Overview

The Omron CJ1W-OD212 is a digital output module designed to provide 16 PNP (sourcing) transistor outputs for Omron's CJ-series Programmable Logic Controllers (PLCs). Operating at 24 VDC with a maximum output current of 0.5 A per channel, this module ensures reliable and precise control of various actuators and devices within industrial automation systems.

Key Features

Output Channels: 16 transistor outputs with PNP configuration
Output Voltage: 24 VDC
Output Current: Up to 0.5 A per channel
Response Time: ON: 0.5 ms max; OFF: 1.0 ms max
Short-Circuit Protection: Integrated load short-circuit protection for each output channel
Connection Method: Screw terminals for secure and straightforward wiring
Compact Design: Suitable for space-constrained control panels
Mounting: DIN rail mounting for easy installation
Status Indicators: LEDs for each output channel to display operational status
Certifications: CE, cULus, Lloyd, NK

Technical Specifications

Model Number: CJ1W-OD212
Series: CJ1W
Output Type: PNP (sourcing) transistor
Output Voltage Range: 24 VDC
Output Current: 0.5 A per channel
Response Time:
- ON: 0.5 ms max
- OFF: 1.0 ms max
Short-Circuit Protection: Yes, integrated for each channel
Connection Type: Screw terminals
Dimensions: Compact module designed for efficient use of space
Weight: Approximately 120 g
Operating Temperature: 0°C to 55°C
Protection Rating: IP20

Applications

Industrial Automation: Efficiently controls actuators, relays, and other devices in automated systems
Process Control: Manages output signals in various process control applications
Machine Control: Drives solenoids, lamps, and other output devices in machinery operations

Why Choose the Omron CJ1W-OD212?

High Channel Density: Provides 16 output channels in a compact module
Integrated Protection: Short-circuit protection ensures durability and reliability
Easy Installation: Screw terminals facilitate secure and straightforward wiring
Reliable Performance: Fast response times ensure timely signal processing
