Omron CJ1W-CTL41-E 4-axis pulse I/O module with 500 kHz output and encoder feedback for high-speed positioning in CJ-Series PLCs.

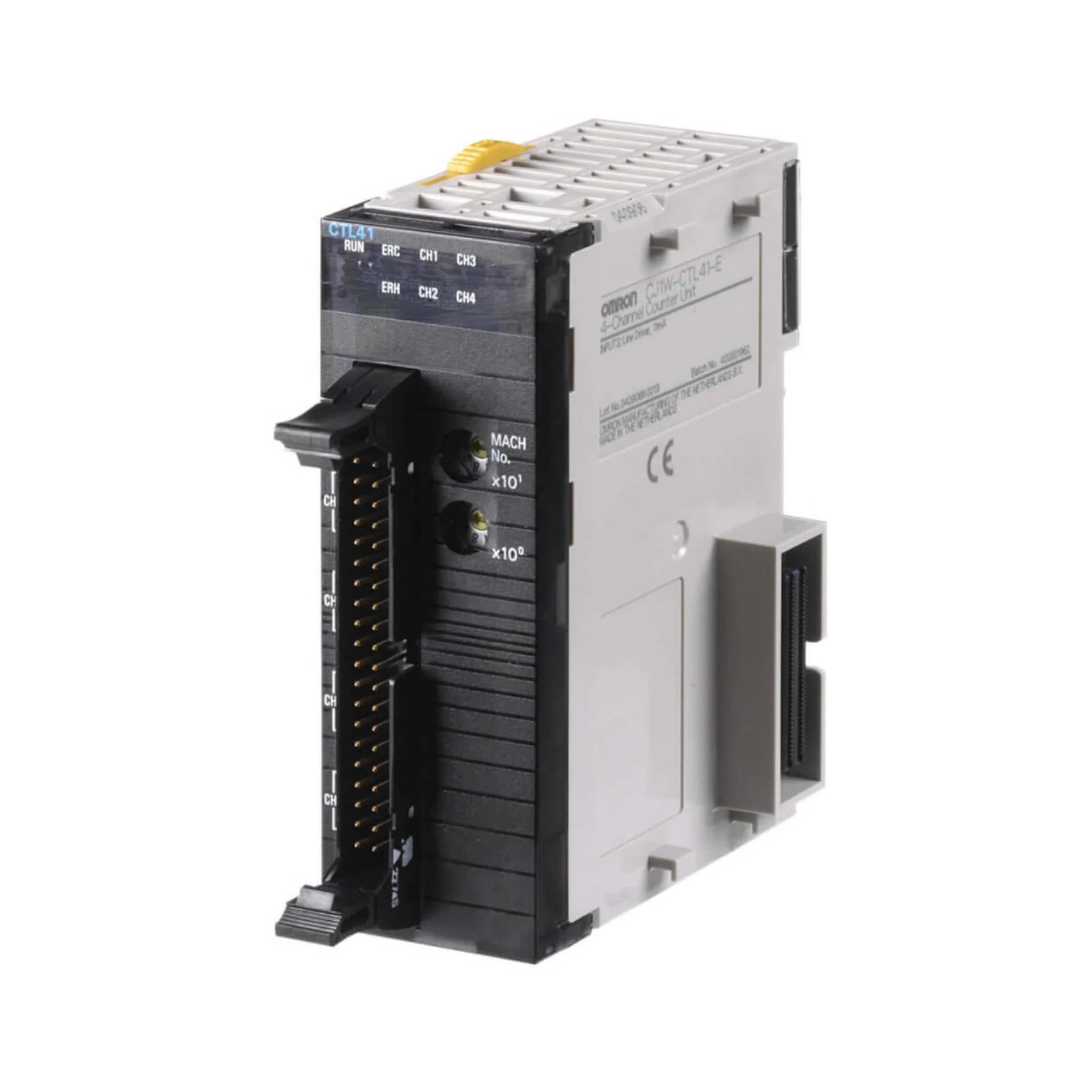

Omron CJ1W-CTL41-E

Your Price:
$2,100.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Omron CJ1W-CTL41-E | High-Speed Pulse I/O Module for Precise Multi-Axis Motion Control

Overview

The CJ1W-CTL41-E is a 4-axis position control module for Omron CJ-Series PLCs, designed to provide pulse train outputs and encoder feedback for high-speed, high-precision motion control. Capable of controlling up to four axes simultaneously, it’s perfect for applications that demand responsive and synchronized positioning.

Key Features

  • 4 Independent Axes: Simultaneously controls 4 servo or stepper drives

  • Pulse Output: Up to 500 kHz pulse train output per axis

  • Encoder Feedback: 4 inputs for incremental encoders to support closed-loop control

  • Control Modes: Positioning, origin return, jog operation, speed control

  • Data Refresh Rate: 1 ms for real-time performance

  • Compatibility: Fully integrates with Omron CJ-Series PLCs

  • Advanced Features: Interpolation (linear and circular), cam profiles, and origin search functions

Technical Specifications

  • Model Number: CJ1W-CTL41-E

  • Number of Axes: 4

  • Pulse Output Frequency: Max. 500 kHz

  • Output Signal Type: Pulse + direction or CW/CCW

  • Encoder Input: 4 channels, differential or single-ended

  • Input Frequency: Max. 500 kHz

  • Mounting: DIN rail

  • Power Supply: 5 VDC (supplied by PLC rack)

  • Operating Temperature: 0°C to 55°C

  • Dimensions: Approx. 90 mm (H) × 31 mm (W) × 89 mm (D)

  • Certifications: CE, cULus

Applications

  • Robotics and Automated Machinery

  • CNC Systems and Precision Assembly

  • Pick-and-Place Machines

  • Packaging Equipment

  • Inspection and Testing Systems

Why Choose Omron CJ1W-CTL41-E?

  • Multi-axis support for complex motion control in compact form

  • High-speed pulse control enables accurate, responsive movements

  • Encoder feedback allows closed-loop precision and diagnostics

  • Omron reliability with global support and integration flexibility

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
