Omron NX102-1100 | High-Performance Machine Automation Controller for Advanced Motion Control

Overview

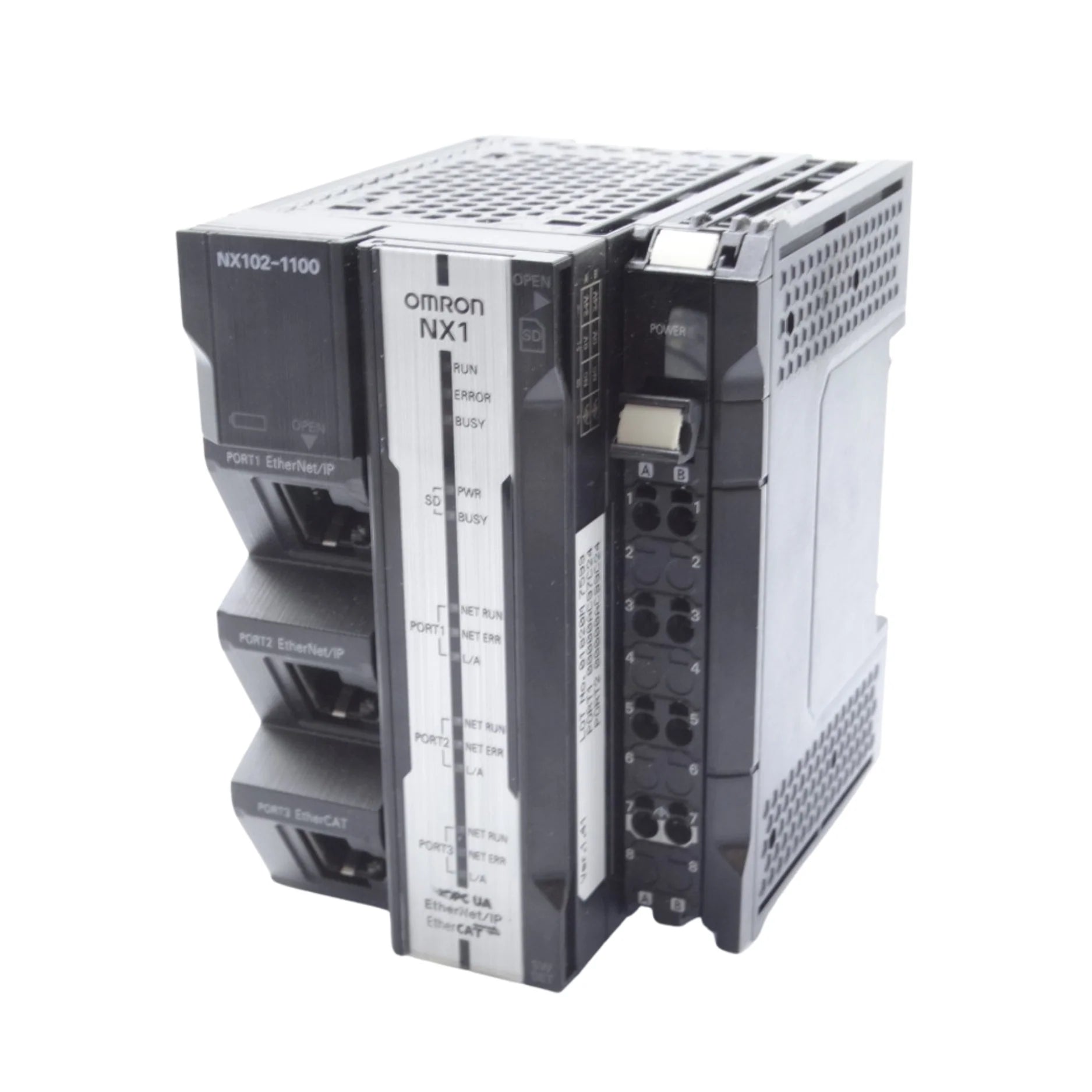

The Omron NX102-1100 is a compact and powerful Machine Automation Controller (MAC) that seamlessly integrates logic, motion, and data handling in a single unit. Designed to support up to 8 axes—comprising 4 motion control axes and 4 single-axis position control axes—it is well-suited for complex and high-speed automation applications. The controller's compatibility with EtherCAT, EtherNet/IP, and OPC UA ensures robust connectivity and interoperability within industrial environments.

Key Features

• Integrated Motion Control: Supports up to 4 synchronized motion axes and 4 single-axis position control axes, facilitating precise and coordinated movements in complex machinery.

• OPC UA Support: Enables secure and standardized communication for Industry 4.0 applications, allowing interoperability between various devices and systems.

• Extensive Memory: Equipped with 5 MB of program memory and 33.5 MB of variables memory, accommodating large and intricate programs.

• High-Speed Processing: Executes tasks with a primary cycle time of 1 ms, ensuring rapid response times and enhanced machine performance.

• Versatile Communication Ports: Includes built-in EtherCAT Master, EtherNet/IP, and Ethernet TCP/IP ports for flexible and robust network integration.

• Expandable I/O Capacity: Supports up to 32 local NX I/O Units, providing scalability for diverse applications.

• Compact Design: With dimensions of 100 mm (H) × 66 mm (W) × 100 mm (D) and a weight of approximately 470 g, it offers a space-saving solution without compromising performance.

Technical Specifications

• Model Number: NX102-1100

• Program Memory: 5 MB

• Variables Memory: 33.5 MB

• Maximum Number of Axes:

  • Synchronous Motion Control Axes: 4

  • Single-Axis Position Control Axes: 4

• Primary Task Cycle Time: 1 ms

• Communication Ports:

  • EtherCAT Master: For real-time control of field devices

  • EtherNet/IP: For seamless integration with enterprise and control networks

  • Ethernet TCP/IP: For general network communication

• I/O Capacity: Supports up to 32 local NX I/O Units

• Mounting: DIN rail

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus, KC, RoHS

Applications

• Complex Machinery Control: Ideal for applications requiring synchronized multi-axis motion, such as packaging machines, CNC equipment, and robotics.

• Data-Intensive Processes: Suited for systems that demand extensive data handling and storage, leveraging its substantial memory capacities.

• Industry 4.0 Integration: Facilitates seamless communication in smart factories through OPC UA support, enabling interoperability with various devices and systems.

• Scalable Automation Systems: Provides flexibility to expand I/O and functionality as system requirements evolve, accommodating future growth.

Why Choose Omron NX102-1100?

• Integrated Control: Combines logic and motion control in a single unit, simplifying system architecture and reducing development time.

• Future-Ready Communication: OPC UA support ensures compatibility with emerging industrial communication standards, promoting longevity and adaptability.

• Robust Performance: High-speed processing and ample memory cater to demanding applications, enhancing overall system efficiency.

• Flexible Networking: Built-in EtherCAT and EtherNet/IP ports offer versatile connectivity options for a wide range of devices and networks.

• Scalability: Support for up to 32 local NX I/O Units allows for system customization and growth without significant redesign.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron I/O modules, servo drives, and other automation components to complete your system setup.

Return to the Omron NX-Series I/O System collection.

Explore our full range of Omron PLCs | Programmable Logic Controllers to find reliable solutions for machine control, data monitoring, and automation applications.
