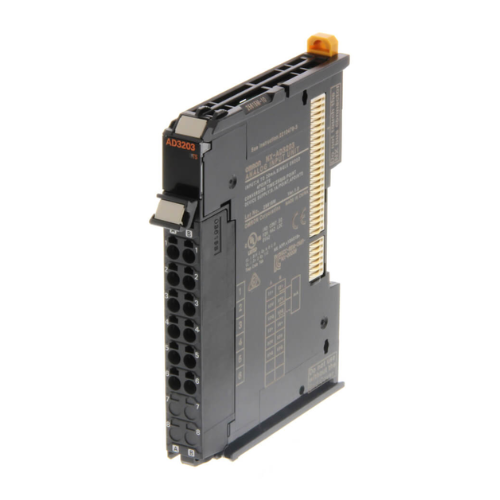

Omron NX-AD3203 | High-Precision Analog Input Module for NX-Series PLCs

Overview

The Omron NX-AD3203 is a 4-channel analog input module for the NX-series PLC platform, offering 16-bit resolution for precise measurement of analog voltage and current signals. Designed for high-speed, high-accuracy signal acquisition, it integrates seamlessly into Sysmac-based control systems via EtherCAT.

Key Features

Number of Channels: 4 analog inputs
Input Types: Voltage (±10V, 0–10V) and current (0–20 mA, 4–20 mA)
Resolution: 16-bit
Fast Sampling: Suitable for dynamic analog signal capture
Isolation: Channel-to-bus isolation improves reliability
Compact Size: Fits NX-series I/O racks with minimal space
LED Indicators: Channel diagnostics and status monitoring
Hot Swappable: Replace modules without shutting down system
Integration: Easy setup with Sysmac Studio software

Technical Specifications

Model: NX-AD3203
Channels: 4 (single-ended)
Input Ranges:
- Voltage: ±10V, 0–10V
- Current: 0–20 mA, 4–20 mA
Resolution: 16-bit
Conversion Time: 10 ms max. per module
Accuracy: ±0.1% full scale (typical)
Isolation: Between I/O and system bus
Power Supply: From NX bus
Operating Temperature: 0°C to +55°C
Mounting: DIN rail via NX I/O system
Dimensions: Approx. 12 × 100 × 70 mm
Weight: Approx. 100 g

Applications

Temperature and Pressure Sensor Input
Analog Level Monitoring
Flow and Load Measurement
Industrial Process Control
Factory Automation Systems

Why Choose Omron NX-AD3203?

High-resolution data capture for precise control
Flexible input support for both voltage and current
Compact and modular for scalable automation
Fast integration using Omron’s Sysmac Studio platform
Reliable isolation for long-term signal stability
