Omron NJ-PA3001

Omron NJ-PA3001 | Reliable 30W AC Power Supply Unit for NJ-Series Controllers

Overview

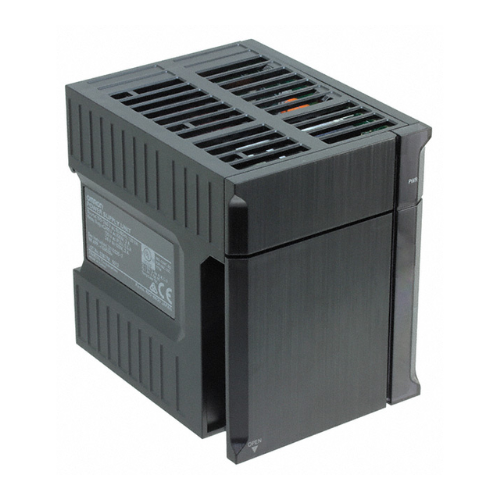

The Omron NJ-PA3001 is a 30W AC power supply unit engineered to provide stable and efficient power to Omron's NJ-Series Machine Automation Controllers. Accepting a wide-range 100 to 240 VAC input, this unit delivers precise 5 VDC and 24 VDC outputs, ensuring optimal performance of connected devices. Its compact design and robust features make it an ideal choice for industrial automation systems requiring dependable power solutions.

Key Features

• Wide Input Voltage Range: Operates with AC inputs from 100 to 240 VAC, accommodating various power sources.

• Dual DC Outputs:

  • 5 VDC Output: Supplies up to 6.0 A, supporting the CPU Unit and associated modules.

  • 24 VDC Output: Provides up to 1.0 A for peripheral devices.

• Total Output Capacity: Delivers a combined power output of 30 W, suitable for multiple components.

• RUN Output Indicator: Features an SPST-NO contact that signals the operational status of the CPU Unit.

• Compact and Lightweight: Designed for space-saving installation without compromising performance.

Technical Specifications

• Model Number: NJ-PA3001

• Input Voltage Range: 100 to 240 VAC, 50/60 Hz

• Operating Voltage Range: 85 to 264 VAC, 47 to 63 Hz

• Power Consumption: 120 VA maximum

• Inrush Current:

  • At 100 VAC: 20 A for 8 ms (cold start at room temperature)

  • At 200 VAC: 40 A for 8 ms (cold start at room temperature)

• Output Capacities:

  • 5 VDC Output: 6.0 A (including supply to CPU Unit using CPU Rack)

  • 24 VDC Output: 1.0 A

  • Total Output: 30 W maximum

• RUN Output:

  • Contact Configuration: SPST-NO

  • Switch Capacity: 250 VAC, 2 A (resistive load); 120 VAC, 0.5 A (inductive load); 24 VDC, 2 A (resistive load)

• Insulation Resistance: 20 MΩ minimum (at 500 VDC) between AC external and ground terminals

• Dielectric Strength: 2,300 VAC for 1 minute between AC external and ground terminals; leakage current 10 mA maximum

• Noise Immunity: 2 kV on power supply line (conforms to IEC 61000-4-4)

• Vibration Resistance: 5 to 8.4 Hz, 3.5-mm amplitude; 8.4 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 100 minutes (according to IEC 60068-2-6)

• Shock Resistance: 147 m/s², 3 times each in X, Y, and Z directions (according to IEC 60068-2-27)

• Operating Temperature Range: 0°C to 55°C

• Storage Temperature Range: -20°C to 75°C

• Operating Humidity Range: 10% to 90% (non-condensing)

• Weight: Approximately 470 g

• Certifications: CE, cULus, Lloyd, NK, RCM, KC

Applications

• Industrial Automation: Provides reliable power to NJ-Series controllers in manufacturing and processing environments.

• Machine Control Systems: Ensures stable operation of machines by supplying consistent power to control units.

• Robotics: Powers controllers managing robotic operations, ensuring precision and reliability.

• Packaging Equipment: Supports the electrical needs of packaging machinery controllers for seamless operations.

Why Choose Omron NJ-PA3001?

• Stable Power Supply: Delivers consistent and reliable power to NJ-Series controllers and associated modules.

• Versatile Input Range: Accommodates a broad range of AC input voltages, enhancing flexibility in various settings.

• Comprehensive Protection: Built-in features safeguard against overcurrent and ensure system integrity.

• Compact Design: Facilitates easy integration into control panels without occupying excessive space.

• Industry Compliance: Meets multiple international standards, affirming its quality and reliability.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron NJ-Series controllers, I/O modules, and other automation components to complete your system setup.
