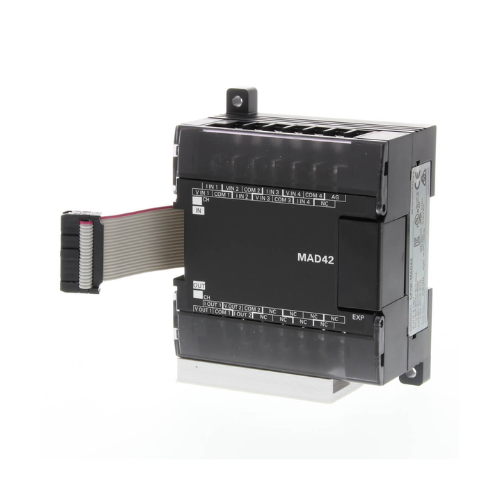

Omron CP1W-MAD42 | 4-Input, 2-Output Analog I/O Expansion Module for CP1 Series PLCs

Overview

The Omron CP1W-MAD42 is an analog I/O expansion module designed for the CP1 Series PLCs, providing 4 analog inputs and 2 analog outputs with 14-bit resolution. It supports a variety of voltage and current signal ranges, enhancing the PLC's capability to handle precise analog signal processing in diverse industrial applications.

Key Features

Analog Inputs: 4 channels supporting voltage and current signals
Analog Outputs: 2 channels supporting voltage and current signals
Input Signal Ranges: -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA
Output Signal Ranges: -10 to 10 V, 0 to 10 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA
Resolution: 14-bit for both inputs and outputs
Compact Design: Dimensions of 90 mm (H) × 86 mm (W) × 50 mm (D)
Seamless Integration: Directly connects to CP1 Series PLCs for expanded analog capabilities

Technical Specifications

Model Number: CP1W-MAD42
Series: CP1 Series
Number of Analog Inputs: 4
Number of Analog Outputs: 2
Input Signal Ranges: -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA
Output Signal Ranges: -10 to 10 V, 0 to 10 V, 1 to 5 V, 0 to 20 mA, 4 to 20 mA
Resolution: 14-bit for both inputs and outputs
Product Dimensions: 90 mm (H) × 86 mm (W) × 50 mm (D)
Product Weight: Approximately 260 g
Operating Temperature: 0°C to +55°C
Storage Temperature: -20°C to +75°C
Operating Humidity: 10% to 90% (non-condensing)
Certifications: CE, UL, RoHS

Applications

Process Control: Enables precise monitoring and control of analog variables in manufacturing processes
Machine Automation: Facilitates integration of analog sensors for temperature, pressure, and flow measurements
Data Acquisition: Provides high-resolution data collection for analysis and quality control
Energy Management: Assists in monitoring and controlling energy consumption through accurate analog measurements

Why Choose Omron CP1W-MAD42?

Enhanced Analog Capabilities: Expands CP1 Series PLCs with additional analog input and output channels
High Precision: 14-bit resolution ensures accurate analog signal processing
Versatile Signal Support: Accommodates multiple voltage and current signal ranges for diverse applications
Compact and Modular: Maintains a small footprint while offering significant expansion to PLC systems

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CP1 Series PLCs, I/O modules, and accessories to complete your automation system.
