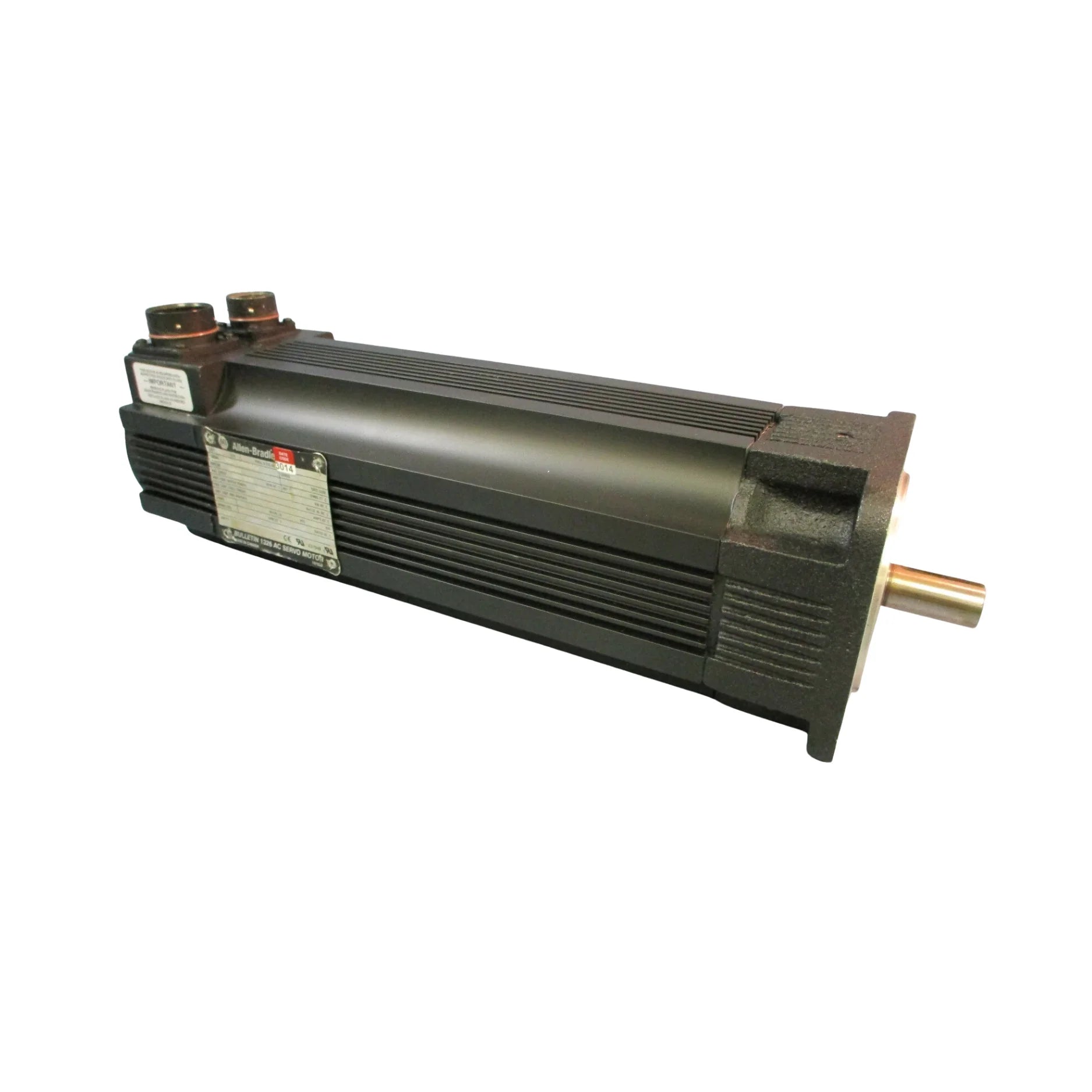

Allen‑Bradley 1326AB‑B430G‑21‑K4 servo motor, 6.44 Nm, 5000 RPM, 460 V, brake, resolver, frame 4

Allen‑Bradley 1326AB‑B430G‑21‑K4

Your Price:
$8,350.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen‑Bradley 1326AB‑B430G‑21‑K4

Overview

The Allen‑Bradley 1326AB‑B430G‑21‑K4 is a high-speed, high-torque AC servo motor from the Torque Plus series, featuring an integrated holding brake for enhanced motion control. Operating at 460 V, it delivers 6.44 Nm of continuous torque and reaches speeds up to 5000 RPM. With resolver feedback and an IP65-rated aluminum enclosure, this model is ideal for demanding applications requiring secure stop functionality and precise positioning.

Key Features

  • High-speed motor: 5000 RPM rated

  • Continuous torque: 6.44 Nm

  • Built-in 8.1 Nm (72 lb-in.) holding brake with 24 V DC coil

  • 76.2 mm (3.0 in.) magnet stack length

  • Frame 4: 108 mm diameter, 115 mm bolt circle

  • Resolver feedback

  • IP65-rated housing

  • IEC metric flange with keyway

  • UL-rated insulation system

  • Compatible with 1394, Kinetix, and Ultra3000 drives

Technical Specifications

  • Model: 1326AB‑B430G‑21‑K4

  • Voltage Rating: 460 V AC, 3-phase

  • Continuous Torque: 6.44 Nm

  • Peak Torque: ~18.0 Nm

  • Rated Speed: 5000 RPM

  • Brake: 8.1 Nm (72 lb-in.) holding brake, 24 V DC

  • Feedback Type: Resolver

  • Magnet Stack Length: 76.2 mm (3.0 in.)

  • Frame Size: 108 mm diameter, 115 mm bolt center

  • Enclosure Protection: IP65

  • Mounting Type: IEC metric flange with keyway

  • Housing Material: Aluminum

  • Insulation Class: UL-recognized

  • Motor Weight: Approximately 14.5 kg (including brake)

Applications

  • Precision robotics

  • High-speed packaging lines

  • Conveyor and pick-and-place systems

  • CNC axis control with emergency stop requirements

  • Industrial automation with power-off holding needs

Why Choose the 1326AB‑B430G‑21‑K4

  • Fast and powerful performance with 5000 RPM rating

  • Built-in brake for secure hold and safety stop functions

  • Reliable resolver feedback for accurate closed-loop control

  • Compatible with standard Allen‑Bradley servo systems

  • Rugged and compact with IP65 protection for harsh environments

Order Now

The Allen‑Bradley 1326AB‑B430G‑21‑K4 AC servo motor with holding brake is available and ships worldwide. Ideal for automation tasks requiring high speed, torque, and secure braking.

Explore our full range of Allen-Bradley Servo Motors for precise motion control solutions.

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.

Description

Allen‑Bradley 1326AB‑B430G‑21‑K4

Overview

The Allen‑Bradley 1326AB‑B430G‑21‑K4 is a high-speed, high-torque AC servo motor from the Torque Plus series, featuring an integrated holding brake for enhanced motion control. Operating at 460 V, it delivers 6.44 Nm of continuous torque and reaches speeds up to 5000 RPM. With resolver feedback and an IP65-rated aluminum enclosure, this model is ideal for demanding applications requiring secure stop functionality and precise positioning.

Key Features

  • High-speed motor: 5000 RPM rated

  • Continuous torque: 6.44 Nm

  • Built-in 8.1 Nm (72 lb-in.) holding brake with 24 V DC coil

  • 76.2 mm (3.0 in.) magnet stack length

  • Frame 4: 108 mm diameter, 115 mm bolt circle

  • Resolver feedback

  • IP65-rated housing

  • IEC metric flange with keyway

  • UL-rated insulation system

  • Compatible with 1394, Kinetix, and Ultra3000 drives

Technical Specifications

  • Model: 1326AB‑B430G‑21‑K4

  • Voltage Rating: 460 V AC, 3-phase

  • Continuous Torque: 6.44 Nm

  • Peak Torque: ~18.0 Nm

  • Rated Speed: 5000 RPM

  • Brake: 8.1 Nm (72 lb-in.) holding brake, 24 V DC

  • Feedback Type: Resolver

  • Magnet Stack Length: 76.2 mm (3.0 in.)

  • Frame Size: 108 mm diameter, 115 mm bolt center

  • Enclosure Protection: IP65

  • Mounting Type: IEC metric flange with keyway

  • Housing Material: Aluminum

  • Insulation Class: UL-recognized

  • Motor Weight: Approximately 14.5 kg (including brake)

Applications

  • Precision robotics

  • High-speed packaging lines

  • Conveyor and pick-and-place systems

  • CNC axis control with emergency stop requirements

  • Industrial automation with power-off holding needs

Why Choose the 1326AB‑B430G‑21‑K4

  • Fast and powerful performance with 5000 RPM rating

  • Built-in brake for secure hold and safety stop functions

  • Reliable resolver feedback for accurate closed-loop control

  • Compatible with standard Allen‑Bradley servo systems

  • Rugged and compact with IP65 protection for harsh environments

Order Now

The Allen‑Bradley 1326AB‑B430G‑21‑K4 AC servo motor with holding brake is available and ships worldwide. Ideal for automation tasks requiring high speed, torque, and secure braking.

Explore our full range of Allen-Bradley Servo Motors for precise motion control solutions.

Condition

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.

Warranty

1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.

Disclaimer

PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
