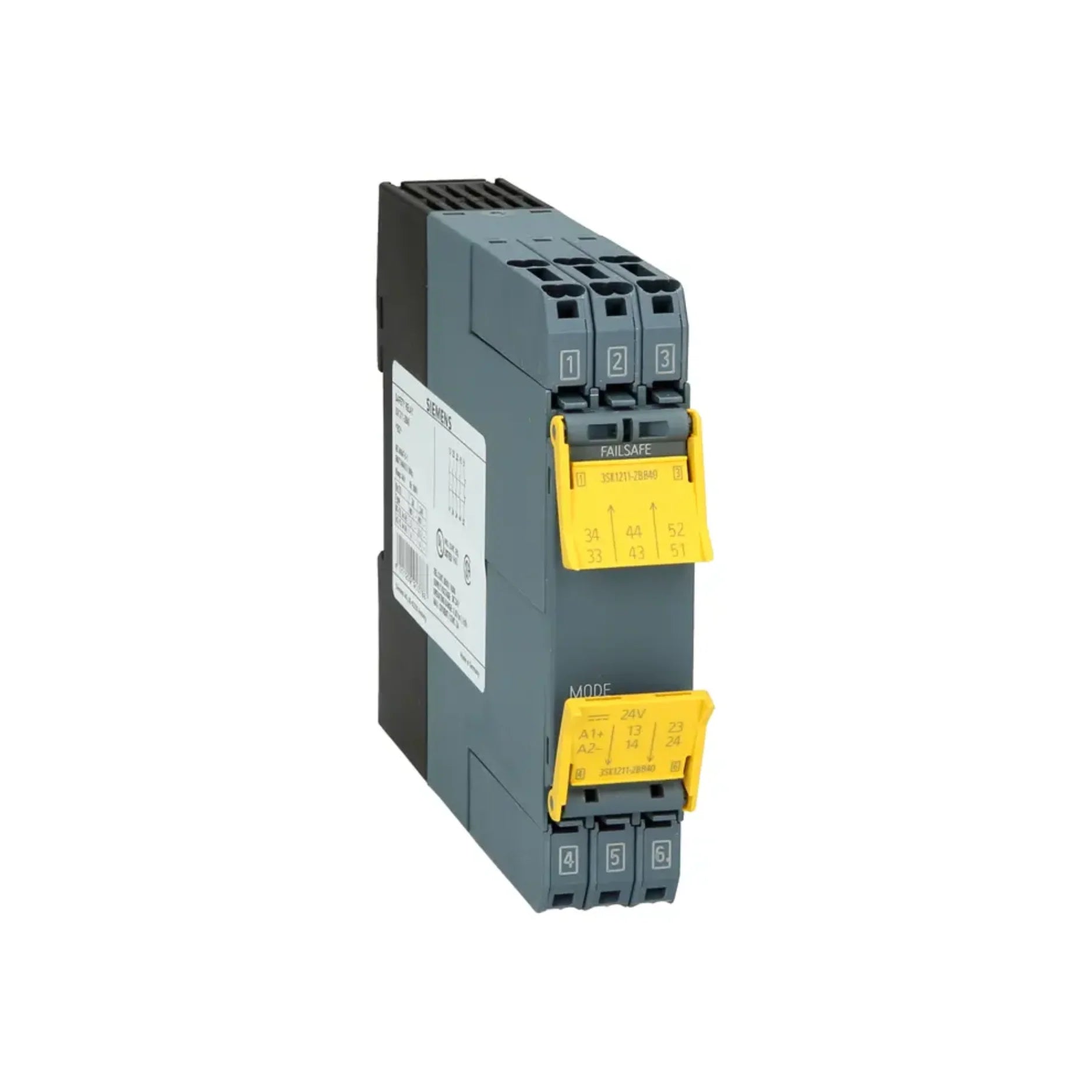

Siemens 3SK1211-2BB40 | SIRIUS Safety Relay Output Expansion Module
Overview:
The Siemens 3SK1211-2BB40 serves as a SIRIUS safety relay output expansion module to bolster the safety features of control systems. It comes with 4 Normally Open (NO) relay enabling circuits alongside 1 Normally Closed (NC) signaling contact, and functions on a 24 V DC power source. Its sleek design and spring-type push-in terminals allow for easy installation and integration into safety systems.
Key Features:
- Safety Function Expansion: Delivers additional relay enabling circuits to broaden the capabilities of safety control frameworks.
- High Switching Capacity: Each NO contact manages up to 5 A at 230 V AC, suitable for industrial uses.
- Compact Design: At a width of 22.5 mm, it saves space in control cabinets.
- User-Friendly Installation: Equipped with spring-type push-in terminals for safe and easy connection.
- Robust Performance: Built to function reliably within temperatures from -25°C to +60°C.
Technical Specifications:
- Product Type: Safety Relay Output Expansion Module
- Part Number: 3SK1211-2BB40
- Number of Outputs: 4 NO relay enabling circuits, 1 NC signaling contact
- Control Supply Voltage: 24 V DC
- Output Current Rating: 5 A at 230 V AC (AC-15)
- Connection Type: Spring-type push-in terminals
- Dimensions (W x H x D): 22.5 mm x 100 mm x 121.6 mm
- Mounting: DIN rail mounting
- Protection Rating: IP20
- Standards Compliance: Complies with IEC 61508 (SIL 3) and ISO 13849-1 (PL e) safety standards
Applications:
- Industrial Automation: Boosts safety control in automated systems and production lines.
- Process Control Systems: Offers dependable safety function expansion in intricate process settings.
- Material Handling Equipment: Ensures safe operation of conveyors, hoists, and other handling mechanisms.
- Packaging Machinery: Integrates into packaging lines to uphold safety norms during operations.
The Siemens 3SK1211-2BB40 SIRIUS Safety Relay Output Expansion Module is vital for industries aiming to enhance their safety control frameworks with reliable and effective relay outputs.
Brand-New, Authentic, Factory-Sealed Components
At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage
Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
Description
Siemens 3SK1211-2BB40 | SIRIUS Safety Relay Output Expansion Module
Overview:
The Siemens 3SK1211-2BB40 serves as a SIRIUS safety relay output expansion module to bolster the safety features of control systems. It comes with 4 Normally Open (NO) relay enabling circuits alongside 1 Normally Closed (NC) signaling contact, and functions on a 24 V DC power source. Its sleek design and spring-type push-in terminals allow for easy installation and integration into safety systems.
Key Features:
- Safety Function Expansion: Delivers additional relay enabling circuits to broaden the capabilities of safety control frameworks.
- High Switching Capacity: Each NO contact manages up to 5 A at 230 V AC, suitable for industrial uses.
- Compact Design: At a width of 22.5 mm, it saves space in control cabinets.
- User-Friendly Installation: Equipped with spring-type push-in terminals for safe and easy connection.
- Robust Performance: Built to function reliably within temperatures from -25°C to +60°C.
Technical Specifications:
- Product Type: Safety Relay Output Expansion Module
- Part Number: 3SK1211-2BB40
- Number of Outputs: 4 NO relay enabling circuits, 1 NC signaling contact
- Control Supply Voltage: 24 V DC
- Output Current Rating: 5 A at 230 V AC (AC-15)
- Connection Type: Spring-type push-in terminals
- Dimensions (W x H x D): 22.5 mm x 100 mm x 121.6 mm
- Mounting: DIN rail mounting
- Protection Rating: IP20
- Standards Compliance: Complies with IEC 61508 (SIL 3) and ISO 13849-1 (PL e) safety standards
Applications:
- Industrial Automation: Boosts safety control in automated systems and production lines.
- Process Control Systems: Offers dependable safety function expansion in intricate process settings.
- Material Handling Equipment: Ensures safe operation of conveyors, hoists, and other handling mechanisms.
- Packaging Machinery: Integrates into packaging lines to uphold safety norms during operations.
The Siemens 3SK1211-2BB40 SIRIUS Safety Relay Output Expansion Module is vital for industries aiming to enhance their safety control frameworks with reliable and effective relay outputs.
