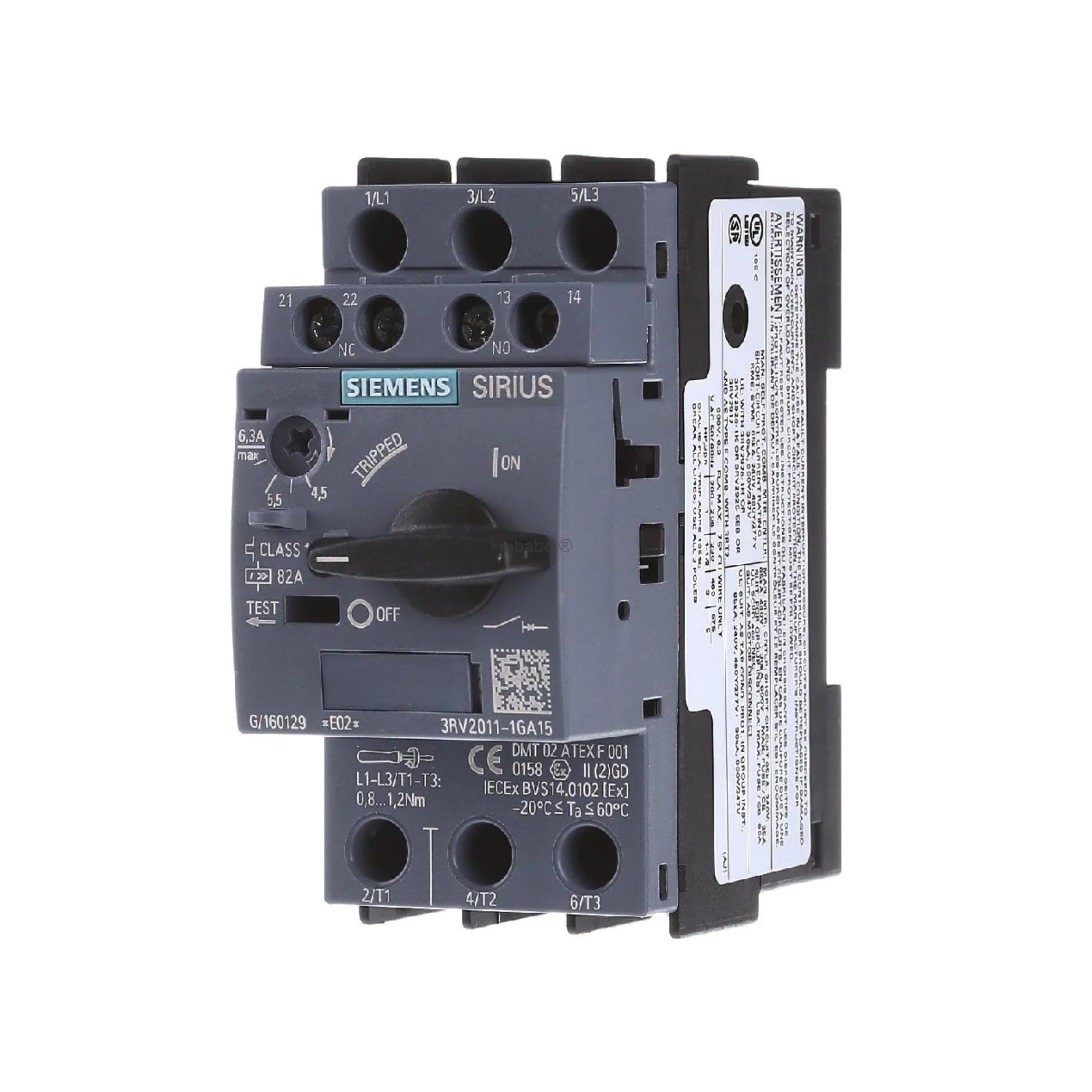

Siemens 3RV2011-1GA15 | SIRIUS 3RV2 Motor Protection Circuit Breaker
Overview:
The Siemens 3RV2011-1GA15 is a motor protection circuit breaker from the SIRIUS 3RV2 series, crafted to protect motors from overloads and short circuits. Classified under size S00, it is suitable for motors up to 2.2 kW at 400 V. It includes an adjustable thermal overload release from 4.5 to 6.3 A and a fixed instantaneous short-circuit release at 82 A. The device is equipped with both normally open (NO) and normally closed (NC) transverse auxiliary contacts, enabling versatile control and signaling applications.
Key Features:
- Adjustable Thermal Overload Release: Offers current settings from 4.5 to 6.3 A, allowing flexibility to match motor requirements.
- Instantaneous Short-Circuit Release: Set at 82 A to ensure immediate disconnection during short-circuit situations, protecting both the motor and circuitry.
- Operational Voltage: Supports a range up to 690 V AC, accommodating various industrial power systems.
- Auxiliary Contacts: Features 1 normally open (NO) and 1 normally closed (NC) transverse auxiliary contact for improved control and monitoring capabilities.
- Mounting and Connections: Designed for easy installation on DIN rails with screw terminal connections, ensuring secure and reliable wiring.
Technical Specifications:
- Product Type: Motor Protection Circuit Breaker
- Part Number: 3RV2011-1GA15
- Frame Size: S00
- Thermal Overload Release Setting: 4.5 to 6.3 A
- Instantaneous Short-Circuit Release: 82 A
- Operational Voltage: Up to 690 V AC
- Motor Power Rating at 400 V (AC-3): 2.2 kW
- Auxiliary Contacts: 1 NO + 1 NC transverse
- Mounting: DIN rail
- Terminal Type: Screw terminals
- Dimensions (H x W x D): 97 mm x 45 mm x 96 mm
- Weight: Approximately 0.369 kg
- Protection Class: IP20
- Operating Temperature Range: -20°C to +60°C
- Standards Compliance: IEC 60947-4-1, IEC 60947-2
Applications:
- Industrial Automation: Protects motors in manufacturing equipment, conveyors, and processing machinery from electrical faults.
- HVAC Systems: Ensures reliable operation of motors in heating, ventilation, and air conditioning units.
- Pumping Stations: Safeguards pumps against overloads and short circuits, ensuring continuous fluid movement.
- Material Handling: Provides protection for motors in cranes, hoists, and other material handling equipment.
The Siemens 3RV2011-1GA15 motor protection circuit breaker offers a robust and reliable solution for safeguarding motors across various industrial applications, ensuring operational efficiency and equipment longevity.
