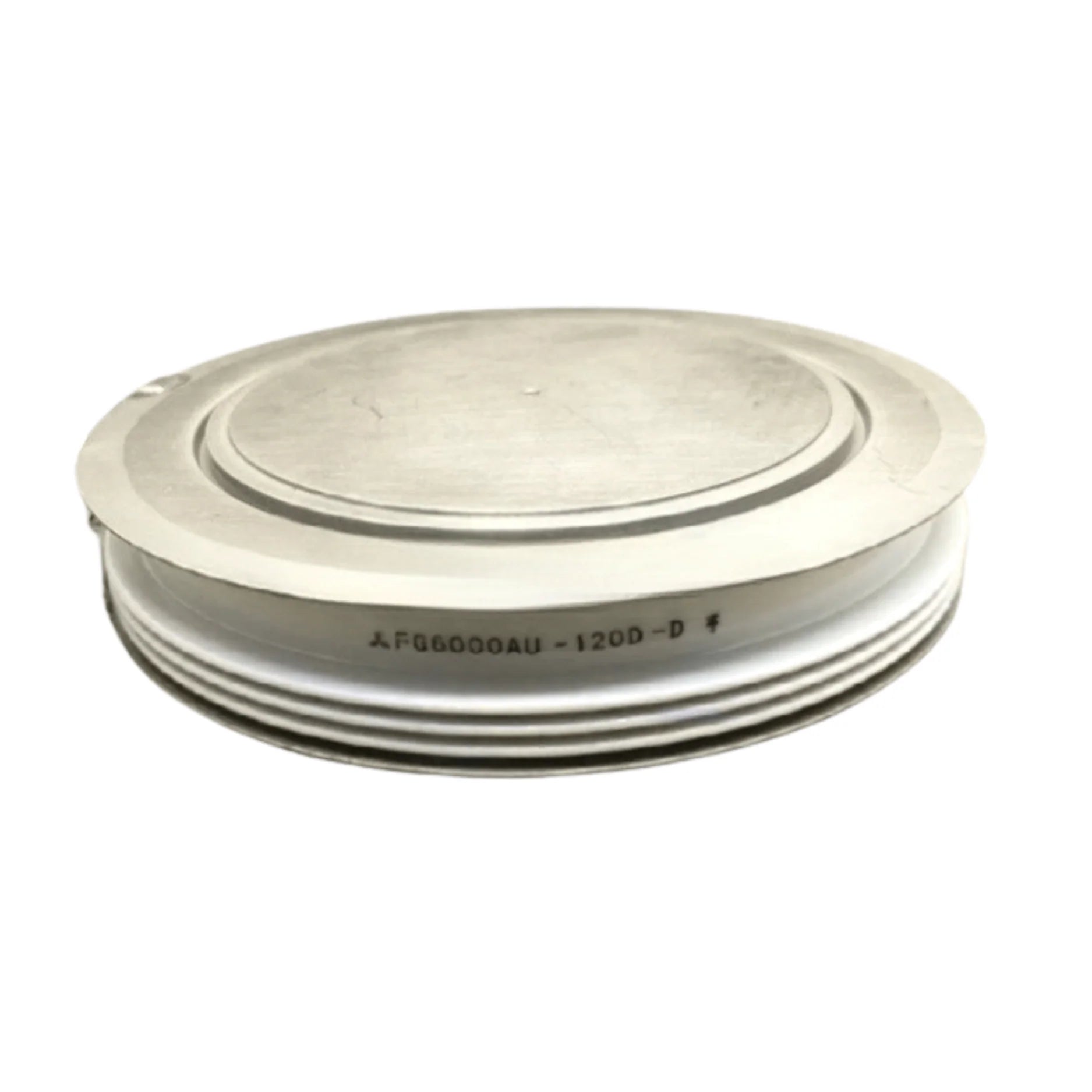

Mitsubishi FG6000AU-120D

Your Price:

$4,940.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

Overview

With a 6000 A current capability and 6000 V blocking voltage, this anode-short thyristor offers outstanding power density and endurance for converters, induction heating, and high-power inverter systems. Voltage rating: 6000 V Repetitive controllable current: 6000 A Surge current capability: 40 kA Press-pack configuration with anode-short structure Heavy-duty gate control design Excellent thermal and electrical stability Model: FG6000AU-120D Type: Gate Turn-Off Thyristor (GTO) Package: Press-pack type Configuration: Anode-short VDRM/VRRM: 6000 V VRDC: 4800 V ITQRM: 6000 A IT(RMS): 3100 A IT(AV): 1500 A ITSM: 40,000 A I²t: 6.7 × 10⁶ A²s di/dt: 500 A/µs VFGM: 10 V VRGM: 22 V IFGM: 200 A IRGM: 2400 mA PFGM: 2000 W PRGM: 50 W PFG(AV): 140 W PRG(AV): 630 W Tj: –40 °C to +125 °C Tstg: –40 °C to +150 °C Mounting Force: 98–118 kN Weight: 4600 g High-voltage inverters D.C.

Key Features

Press-pack configuration with anode-short structure
Heavy-duty gate control design
Excellent thermal and electrical stability
Type: Gate Turn-Off Thyristor (GTO)
Package: Press-pack type
Configuration: Anode-short

Technical Specifications

Manufacturer: Mitsubishi Electric
Model: Mitsubishi FG6000AU-120D
Product type: thyristor
Voltage rating: 6000 V
Repetitive controllable current: 6000 A
Surge current capability: 40 kA
Voltage rating: 4800 V
Current rating: 6000 A
Current rating: 3100 A
Current rating: 1500 A
Current rating: 000 A

Applications

Industrial automation systems
Control panels
Manufacturing equipment

Why Choose This Model?

Clear technical identification for correct selection
Reliable operation in industrial environments
Supports long-term system stability

Order Now

Order Mitsubishi FG6000AU-120D today to ensure reliable performance in your automation project.
