Overview

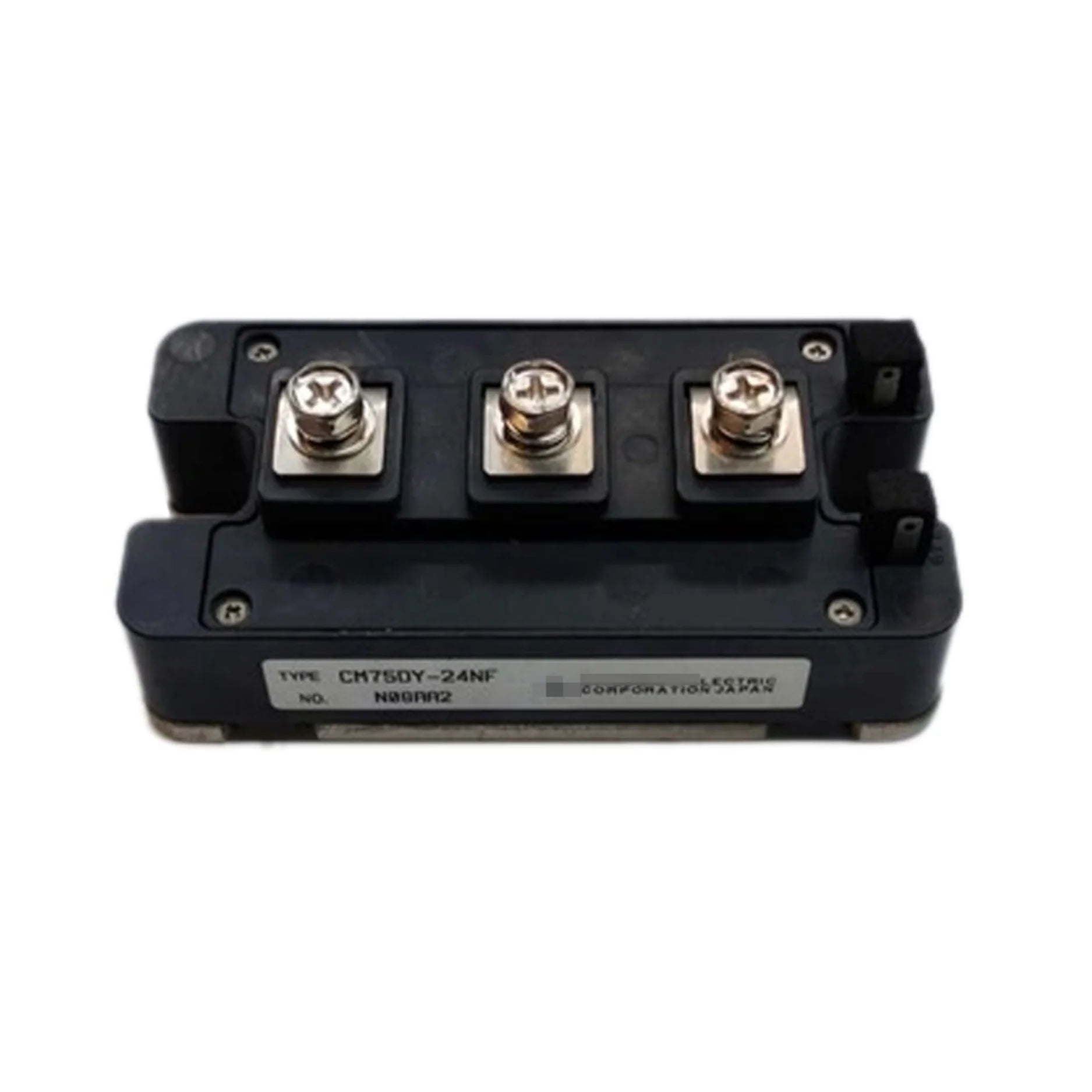

The Mitsubishi CM75DY-24NF is a dual IGBT module rated at 75 A and 1200 V, ideal for compact and efficient power conversion systems. With trench-gate IGBT technology and integrated free-wheeling diodes, this module provides excellent switching performance and thermal reliability.
Key Features
- Dual IGBT half-bridge configuration
- Trench-gate structure for low switching losses
- Integrated fast-recovery diodes
- Insulated baseplate for effective heat dissipation
- Compact chassis mount housing
- High-performance in a compact footprint
Technical Specifications
- Manufacturer: Mitsubishi Electric
- Model: Mitsubishi CM75DY-24NF
- Product type: IGBT module
- Collector current: 75 A
- Collector-emitter voltage: 1200 V
- Current rating: 75 A
- Voltage rating: 1200 V
- Voltage rating: 0 V
- Voltage rating: 20 V
Applications
- Industrial automation systems
- Control panels
- Manufacturing equipment
Why Choose This Model?
- Clear technical identification for correct selection
- Reliable operation in industrial environments
- Supports long-term system stability
Order Now
Order Mitsubishi CM75DY-24NF today to ensure reliable performance in your automation project.
