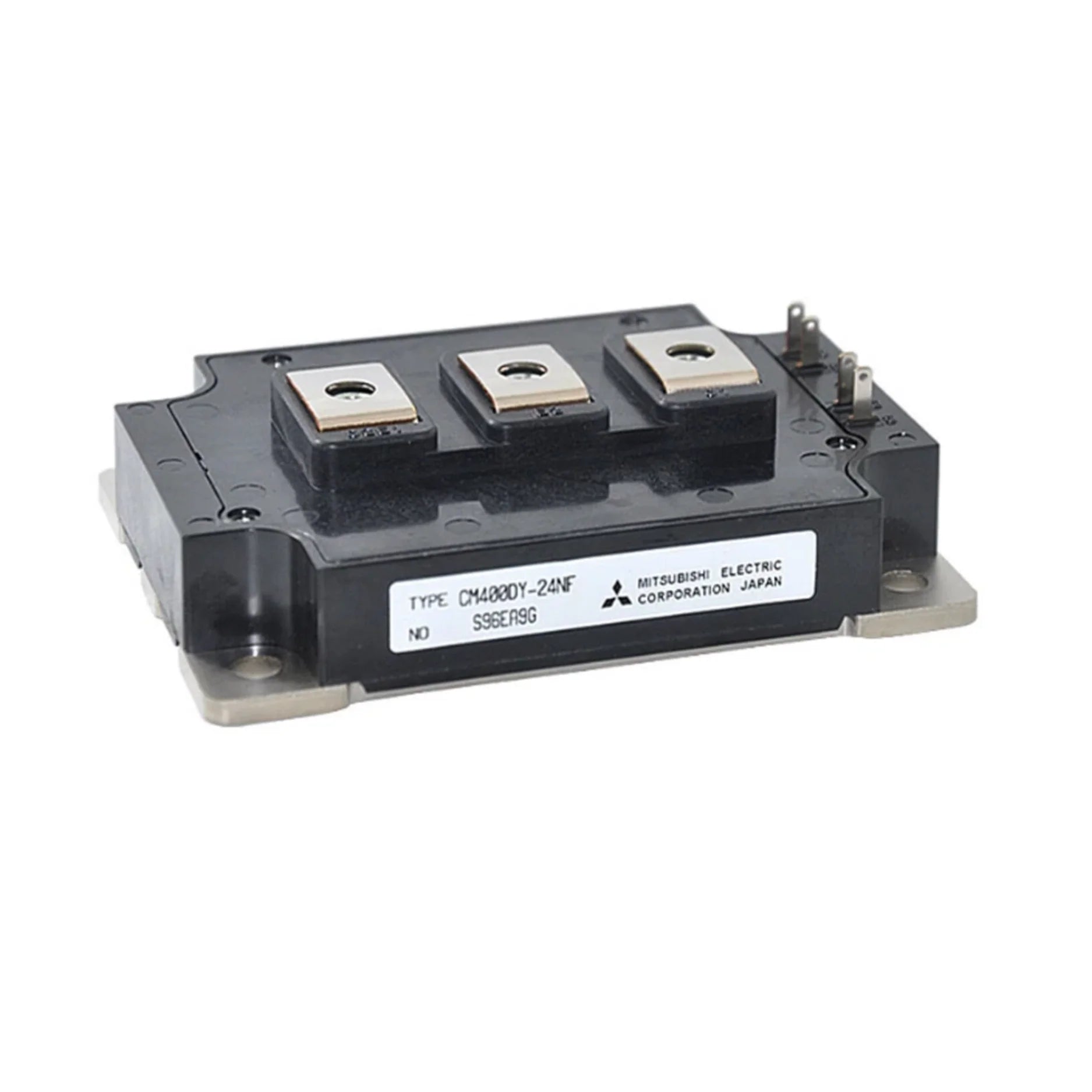

Mitsubishi CM400DY-24NF

Your Price:

$262.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

Overview

With a trench-gate structure and integrated free-wheeling diodes, it ensures efficient, low-loss switching, making it ideal for inverters, motor drives, and renewable energy systems. Dual IGBT configuration Rated at 400 A, 1200 V Trench gate design for low saturation voltage Integrated fast recovery diodes Insulated baseplate for simplified cooling High-speed switching Chassis mount for easy installation Rugged, industrial-grade housing Model: CM400DY-24NF Collector Current (Ic): 400 A (continuous) Collector-Emitter Voltage (Vces): 1200 V Vce(sat): Approx.

Key Features

Dual IGBT configuration
Trench gate design for low saturation voltage
Integrated fast recovery diodes
Insulated baseplate for simplified cooling
High-speed switching
Chassis mount for easy installation

Technical Specifications

Manufacturer: Mitsubishi Electric
Model: Mitsubishi CM400DY-24NF
Product type: IGBT module
Voltage rating: 1200 V
Model: CM400DY-24NF
Collector Current (Ic): 400 A (continuous)
Collector-Emitter Voltage (Vces): 1200 V
Vce(sat): Approx. 2.2 V @ 400 A
Power Dissipation: ~1350 W
Gate-Emitter Voltage: ±20 V
Input Capacitance (Cies): ~150 nF

Applications

Industrial automation systems
Control panels
Manufacturing equipment

Why Choose This Model?

Clear technical identification for correct selection
Reliable operation in industrial environments
Supports long-term system stability

Order Now

Order Mitsubishi CM400DY-24NF today to ensure reliable performance in your automation project.
