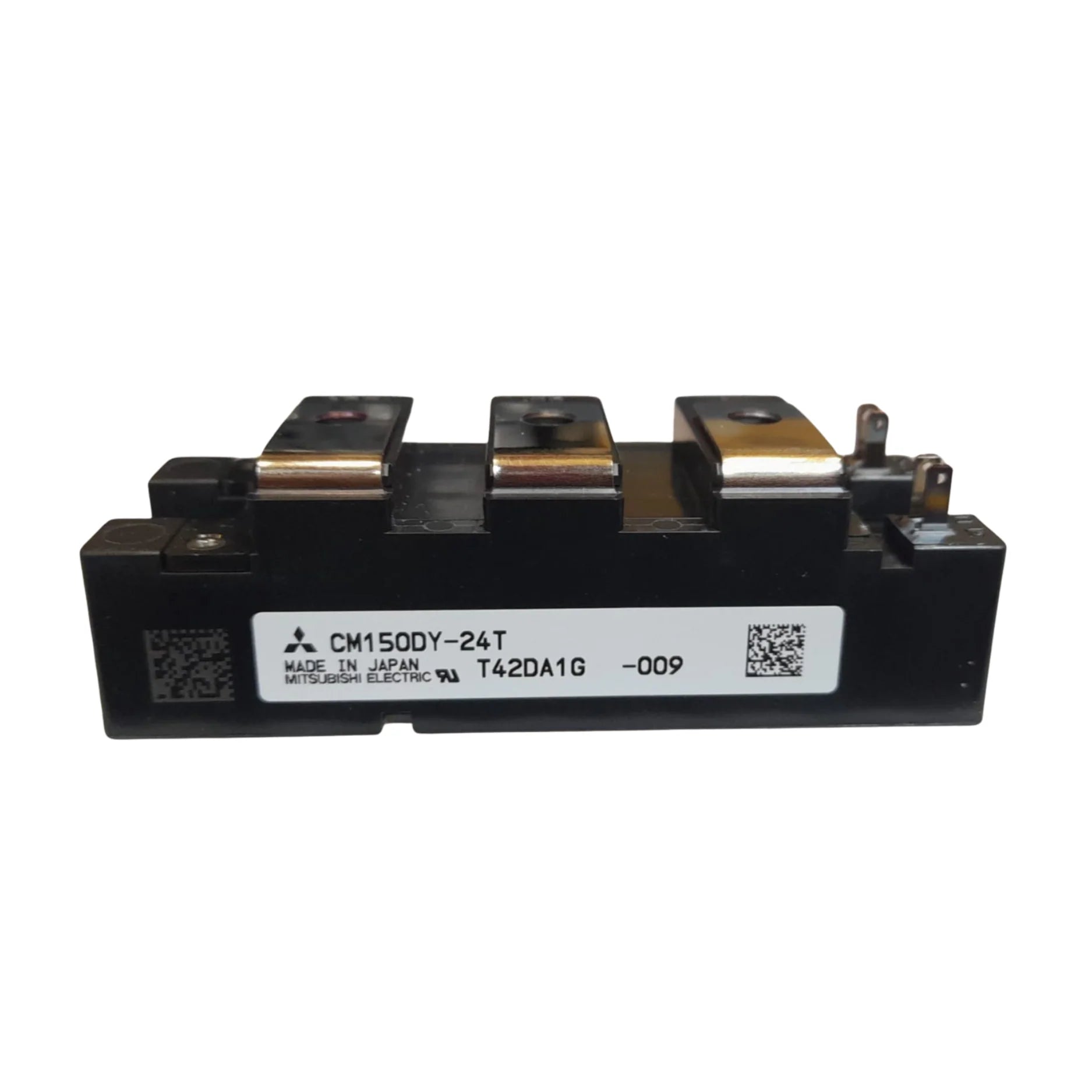

Mitsubishi CM150DY-24T

Your Price:

$235.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

Overview

With a 150 A current rating and 1200 V blocking voltage, it features trench-gate IGBT technology and integrated fast-recovery diodes to support low conduction losses, reliable performance, and thermal efficiency in industrial-grade systems. Dual IGBT half-bridge configuration Rated current: 150 A Collector-emitter voltage: 1200 V Trench-gate IGBT design Built-in fast-recovery diodes Insulated baseplate for efficient heat transfer Chassis mount construction Suitable for compact industrial power systems Part Number: CM150DY-24T Configuration: Dual IGBT with free-wheeling diodes Collector Current: 150 A Collector-Emitter Voltage: 1200 V VCE(sat): ~2.0–2.2 V at rated current Gate-Emitter Voltage: ±20 V Switching Speed: Fast Thermal Resistance (Junction-Case): ~0.16 °C/W Mounting Type: Chassis mount (isolated base) Operating Temperature: –40 °C to +150 °C Package Type: Power module Weight: Approx.

Key Features

Dual IGBT half-bridge configuration
Trench-gate IGBT design
Built-in fast-recovery diodes
Insulated baseplate for efficient heat transfer
Chassis mount construction
Suitable for compact industrial power systems

Technical Specifications

Manufacturer: Mitsubishi Electric
Model: Mitsubishi CM150DY-24T
Product type: IGBT module
Rated current: 150 A
Collector-emitter voltage: 1200 V
Current rating: 150 A
Voltage rating: 1200 V
Voltage rating: 2 V
Voltage rating: 20 V

Applications

Industrial automation systems
Control panels
Manufacturing equipment

Why Choose This Model?

Clear technical identification for correct selection
Reliable operation in industrial environments
Supports long-term system stability

Order Now

Order Mitsubishi CM150DY-24T today to ensure reliable performance in your automation project.
