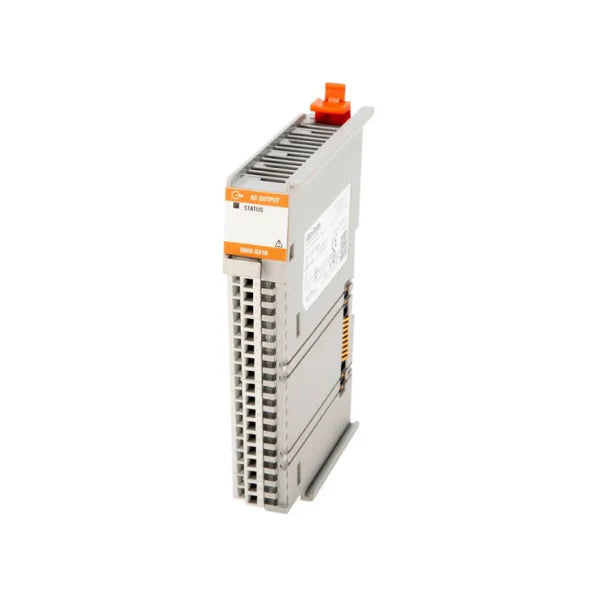

Allen-Bradley 5069-OA16 | 16-Channel AC Output Module – Compact 5000 Series

Overview

The 5069-OA16 by Allen-Bradley (Rockwell Automation) is a 16-channel AC digital output module, crafted for Compact 5000 I/O systems. It offers superior AC control for components like solenoids, lights, and actuators, perfect for robust systems in manufacturing and processing settings.

Key Features

Number of Outputs: 16 digital AC channels
Output Voltage Range: 74–264V AC
Output Current per Channel: 0.5 A continuous
Total Module Current: 8 A max
Isolation: Channel-to-backplane and channel-to-channel
Output Type: Triac (zero-cross switching)
Status Indicators: Per channel and module status LEDs
Diagnostics: Open-load detection and short-circuit protection
Wiring Connection: Removable terminal block (RTB)
Mounting Type: DIN rail, CompactLogix/ControlLogix compatible

Technical Specifications

Module Type: Digital AC Output
Voltage Category: 120/240V AC
Number of Outputs: 16 (individually isolated or grouped based on wiring)
Output Delay: Typically ≤ 0.5 ms
Power Dissipation: Approx. 8.4 W max
Operating Temp: 0 °C to 60 °C
Standards: UL, CE, c-UL, ATEX, IECEx (depending on version)
Product Series: Compact 5000 (Compact I/O)

Applications

Discrete device control (lamps, valves, contactors)
Packaging and conveying systems
Machine automation requiring AC output switching
Factory automation and process control

Why Choose the 5069-OA16?

Compact form factor for scalable systems
Rockwell Automation reliability
Built-in diagnostics for safe, dependable operation
Designed for demanding industrial environments

Need help finding a compatible power supply, RTB terminal base, or Logix controller to complete your setup?
