Product Description:

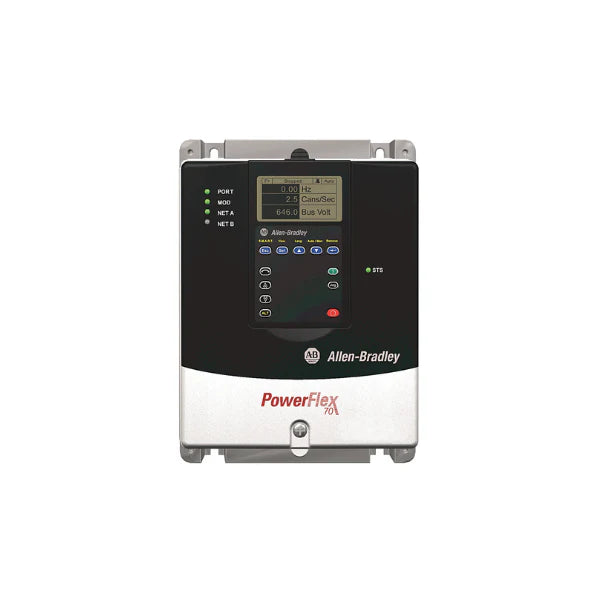

The Allen-Bradley 20AC5P0A0AYNNNC0 PowerFlex 70 AC drive offers a flexible and robust solution for intensive industrial applications. This drive manages 2.2 kW in Normal Duty and 1.5 kW in Heavy Duty, providing a 5 Amp output current suitable for 400V AC three-phase input.
Designed for panel mounting, it features an IP20/NEMA Type 1 enclosure, ideal for safeguarded environments. Enhanced with conformal coating for added resistance to harsh conditions, it operates without the Human Interface Module, requiring external programming. It includes a brake IGBT for dynamic braking, needing an external brake resistor.
A notable attribute is the absence of the second environment filter for CE EMC directive compliance, perfect for situations where compliance is not needed or external filtering is used. This variant lacks a communication module but boasts enhanced control capabilities without feedback. It is in stock and can be dispatched today.
Key Features and Specifications:
- 2.2 kW (Normal Duty) / 1.5 kW (Heavy Duty) Rating: Suitable for various motor applications.
- 400V AC, 3-Phase Input: Works with standard three-phase power.
- 5 Amp Output Current: Supplies ample current for the specific motor.
- Panel Mount - IP20/NEMA Type 1: Suited for protected settings.
- Conformal Coating: Increases protection from extreme conditions.
- No HIM (Blank Plate): Needs external programming.
- Brake IGBT Installed: Supports dynamic braking (external resistor needed).
- No Drive-Mounted Brake Resistor: Requires an external brake resistor.
- No CE Compliant Filter: Does not follow CE EMC directive (89/336/EEC).
- No Communication Module: Requires an additional communication module for network connections.
- Enhanced Control: Provides advanced control algorithms.
- No Feedback: Operates in open-loop mode.
- IN STOCK: Purchase now for quick shipping.
Technical Specifications:
- Catalog Number: 20AC5P0A0AYNNNC0
- Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
- Output Voltage: 0-Input Voltage, 3-Phase
- Output Current: 5 Amps
- Power Rating: 2.2 kW (Normal Duty), 1.5 kW (Heavy Duty)
- Enclosure: Panel Mount - IP20/NEMA Type 1
- Cooling Method: Convection/Heatsink (Likely)
- Braking: Brake IGBT Installed (External Resistor Required)
- Filtering: No CE Compliant Filter
- Control Method: Enhanced Control (Sensorless Vector Control)
- Feedback: No Feedback (Open Loop)
Applications:
- Applications where CE EMC compliance is not needed.
- Pumps, fans, and blowers.
- Conveyors.
- Material handling systems.
- Other general-purpose industrial uses where feedback is not essential.
Benefits:
- Cost-Effective: Provides an economic solution for basic motor control without CE filtering requirements.
- Enhanced Control: Delivers sophisticated control algorithms for improved performance.
- Conformal Coating: Apt for demanding environments.
Why Choose the 20AC5P0A0AYNNNC0 ?
- Immediate Availability (IN STOCK): Minimizes downtime.
- Competitive Pricing: Offers cost-effective rates.
- Fast and Reliable Shipping: We prioritize timely delivery.
- Expert Customer Service: Our skilled team assists with drive selection and application.
- USA Based: Ensuring local support and quick delivery within the U.S.
- Trusted Supplier: We are a reputable supplier.
