Product Description:

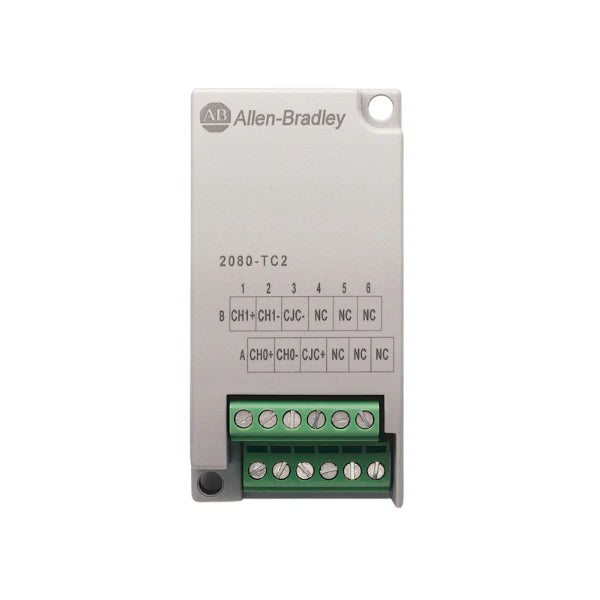

The Allen-Bradley 2080-TC2 module provides an effective approach to boost temperature measurement for Micro800 controllers. With two thermocouple input channels, it delivers exact monitoring and management of thermal processes. Its plug-in feature allows easy integration with Micro800 controllers, saving both time and effort
Key Features:
- 2 Thermocouple Input Channels: Connects up to two thermocouples of various types.
- Supported Thermocouple Types: J, K, N, T, E, R, S, B (refer to the documentation for precise accuracy details for each type).
- 14-bit Resolution: Ensures high precision in temperature measurements.
- Cold Junction Compensation (CJC): Built-in for accurate readings by compensating for the reference junction temperature.
- Screw Terminal Connections: Provides secure and trustworthy connections for thermocouples.
- Easy Plug-in Installation: Supports quick integration with Micro800 controllers.
- Non-Isolated: This module does not provide galvanic isolation between the channels and the controller.
Technical Specifications:
- Number of Channels: 2
- Resolution: 14-bit
- Supported Thermocouple Types: J, K, N, T, E, R, S, B
- Accuracy: ±1.0 °C @ 25 °C (77 °F) (refer to the datasheet for specific details for each thermocouple type)
- CJC Error: ±1.2 °C @ 25 °C (77 °F)
- Normal Mode Rejection: 70 dB @ 50/60 Hz
- Common Mode Rejection: 100 dB @ 50/60Hz
- Wiring Method: Screw terminals
- Wire Size: Solid: 0.14 mm² to 1.5 mm²; Stranded: 0.14 mm² to 1.0 mm²
- Open Circuit Detection Time: 8 to 15 ms
- Certifications: C-TICK, CCC, CE, CUL, KC, UL (Check the product label for specific certifications, as they may vary depending on the manufacturing date).
Typical Applications:
- Oven Temperature Control: Accurate temperature monitoring in heat treatment processes.
- Plastics Machinery: Temperature control in extruders and injection molding machines.
- HVAC Systems: Temperature monitoring in heating, ventilation, and air conditioning systems.
- General Industrial Processes: Temperature measurement in various processes using thermocouples.
Why Choose the Allen-Bradley 2080-TC2?
- Simplified Integration: Specifically designed for Micro800 controllers, ensuring easy configuration and use.
- High Accuracy: 14-bit resolution for precise temperature readings.
- Allen-Bradley Reliability: Renowned quality and durability in the industrial automation sector.
- Technical Support: Comprehensive technical support from Rockwell Automation.
Important Additional Information:
- Non-Isolated: This module does not provide galvanic isolation. Consider the implications for your system.
- Datasheet: Always consult the official Rockwell Automation datasheet for complete and up-to-date technical information.
- Compatibility: Verify compatibility with the specific model of your Micro800 controller.
Brand-New, Authentic, Factory-Sealed Components
At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage
Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
