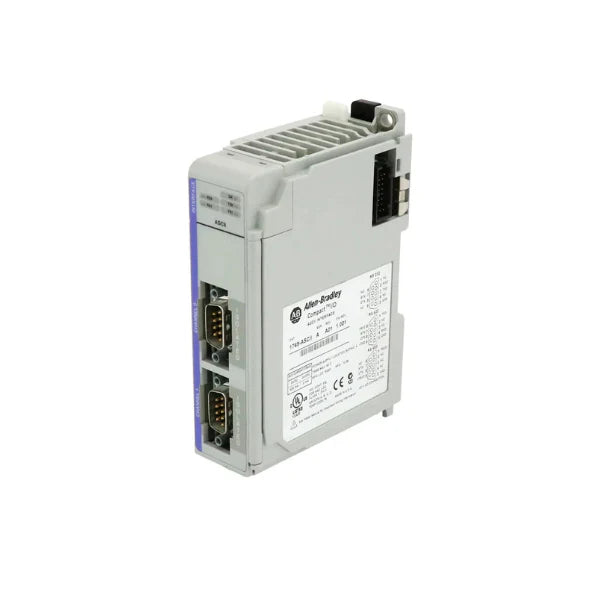

Allen-Bradley 1769-ASCII | 2-Channel Serial ASCII Module – RS232, RS422, RS485 Communication for CompactLogix

Overview

The Allen-Bradley 1769-ASCII is a 2-channel serial communication module tailored for CompactLogix and MicroLogix 1500 systems. It supports RS232, RS422, and RS485 protocols, perfect for integrating ASCII-based serial devices such as barcode scanners, printers, sensors, and custom control hardware into your automation system.

Each channel is independently adjustable, offering maximum flexibility for various serial devices or protocols.

Key Features

Channels: 2 independent serial ports
Protocols Supported: RS232, RS422, RS485
Communication Type: ASCII serial
Baud Rate: Up to 115.2 Kbps
System Compatibility: CompactLogix and MicroLogix 1500
Compact DIN Rail Mountable – Saves space in control panels
Simple Integration – Communicate with non-Allen-Bradley serial devices
Independent Configuration – Each channel can be uniquely set

Technical Specifications

Model: 1769-ASCII
Channels: 2 serial (independent)
Supported Interfaces: RS232, RS422, RS485
Baud Rates: 300 to 115200 bps
Power Supply: From I/O backplane
Mounting: DIN rail or panel (via CompactLogix chassis)
Operating Temp: 0°C to +60°C
Dimensions: Standard 1769 I/O module size
Certifications: UL, CE, c-UL

Applications

Barcode Readers & Scanners – ASCII string communication
Labeling & Printing Systems – Serial printer control
Weigh Scales & Measurement Devices – Digital serial input
Legacy Device Integration – Communicate with older RS devices
Machine-to-Machine (M2M) Serial Data Exchange

Why Choose the 1769-ASCII?

Multi-protocol support for RS232, RS422, and RS485
Dual independent channels for flexible communication setups
Integrates easily with CompactLogix and MicroLogix systems

Order Now

In stock and ships worldwide. Ask about configuration support, CompactLogix controllers, or starter bundles.
