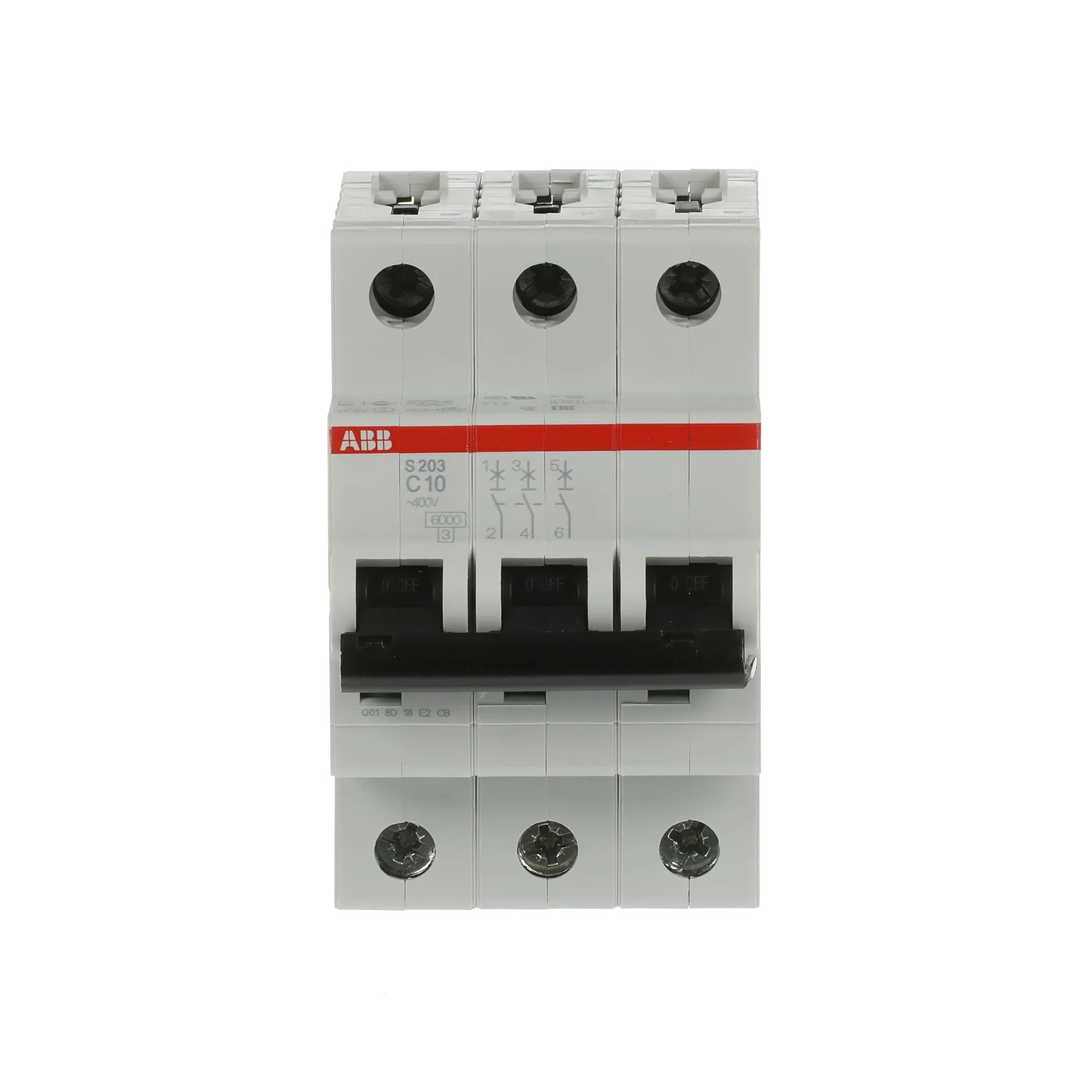

ABB S203-C10 | 10 A Miniature Circuit Breaker, 3-Pole, C Curve
Global Commercial Alias: S203-C10Product ID: 2CDS253001R0104ABB Type Designation: S203-C10Catalog Description: Miniature Circuit Breaker 3P C 10 A, 6 kA, IEC/EN 60898-1
Overview
The ABB S203-C10 is a 3-pole miniature circuit breaker (MCB) rated at 10 A with a C trip characteristic. It offers effective protection for residential, commercial, and industrial electrical installations, safeguarding circuits against overloads and short circuits.
Key Features
Poles: 3
Rated Current: 10 A
Tripping Curve: C (5–10 In)
Rated Breaking Capacity: 6 kA (IEC/EN 60898-1)
Rated Voltage: 400/415 V AC
Frequency: 50/60 Hz
Terminal Type: Screw terminals
Mounting: DIN rail (35 mm)
Position: Horizontal or vertical installation
Isolation Function: Yes, in accordance with IEC/EN 60898-1
Contact Position Indicator: Red/Green window for on/off status
Technical Specifications
Model Number: S203-C10
Standards: IEC/EN 60898-1
Endurance: 20,000 operations (mechanical)
Tightening Torque: 2 Nm
Operating Temperature: -25°C to +55°C
Storage Temperature: -40°C to +70°C
Dimensions (H x W x D): 88 mm x 52.5 mm x 69 mm
Weight: Approx. 0.35 kg
Degree of Protection: IP20 (when installed)
Applications
Distribution boards in residential buildings
Commercial electrical systems
Industrial control panels
Protection for lighting, outlets, and branch circuits
Product Description
The ABB S203-C10 provides effective and efficient circuit protection with rapid fault response. It is created for smooth integration in different applications, offering dependability, long lifespan, and straightforward installation.
Why Choose ABB S203-C10?
High-quality and durable protection
Safe operation with visual status indicator
Easy DIN rail mounting
Complies with global standards
Order Now
Available for worldwide delivery.
