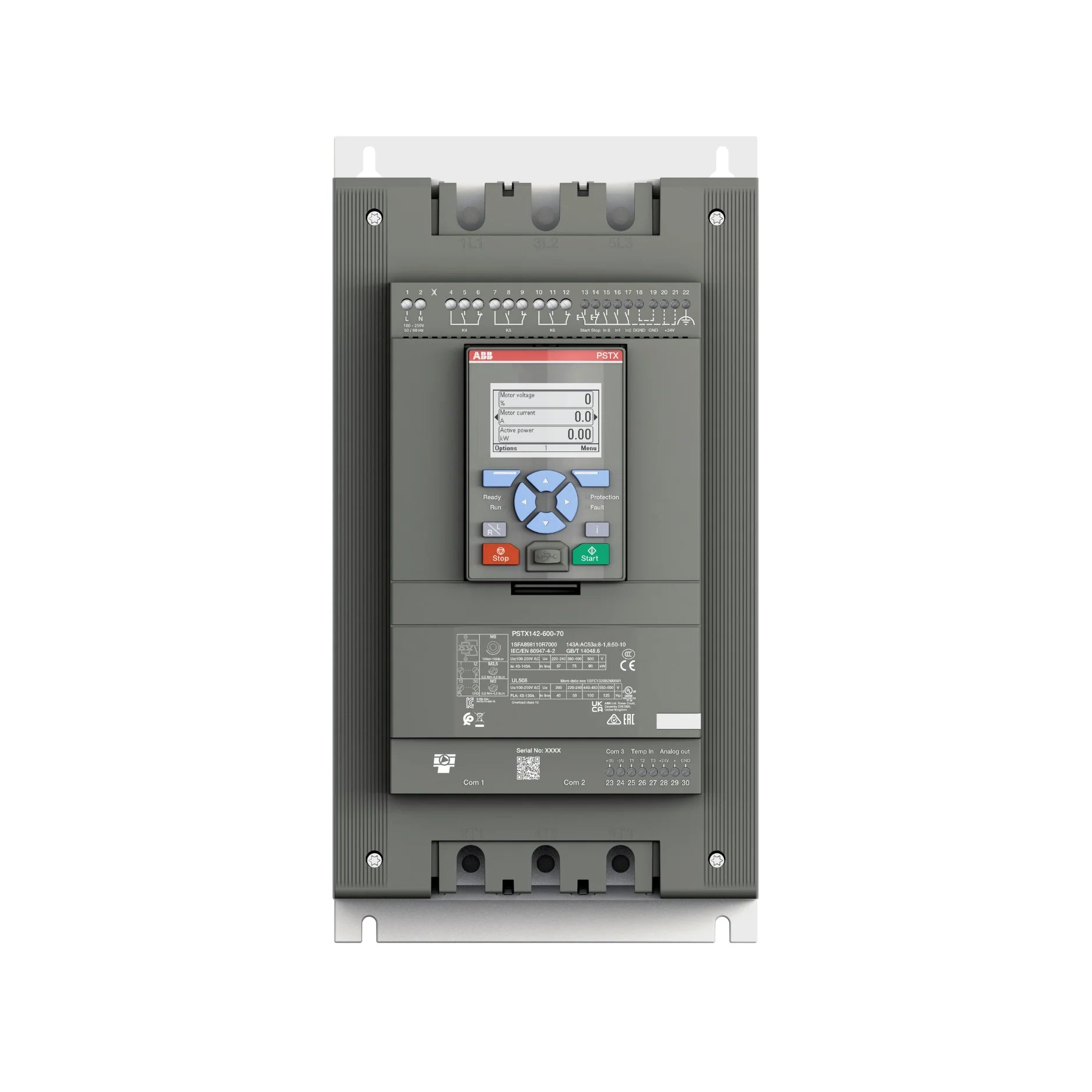

ABB PSTX142-600-70 | 142 A Softstarter, 600 V, Advanced Motor Control
Global Commercial Alias: PSTX142-600-70
Product ID: 1SFA898110R7000
ABB Type Designation: PSTX142-600-70
Catalog Description: Softstarter PSTX, 600 V, 142 A, three-phase, with advanced protection and control functions
Overview
The ABB PSTX142-600-70 is a top-tier softstarter for motors up to 75 kW (400 V), offering solid motor control and extensive protection features. Crafted for industrial settings, it supports voltages up to 600 V and manages 142 A of rated operational current. Its user-friendly interface, versatile settings, and in-built protections make it a robust solution for tough applications.
Key Features
Rated Operational Current: 142 A
Rated Operational Voltage: 208–600 V AC, 3-phase
Control Voltage: 100–250 V AC/DC
Motor Power: Up to 75 kW (400 V)
Bypass Contactor: Integrated
Display: Graphical, with keypad and navigation dial
-
Protections:
Overload
Underload
Phase loss
Locked rotor
Communication Options: Fieldbus plug-in modules (Modbus, Profibus, Ethernet, etc.)
Ramp Functions: Voltage ramp, current limit, torque control
Cooling Method: Natural convection
Technical Specifications
Model Number: PSTX142-600-70
Main Circuit Terminals: Screw type
Mounting Type: Panel mounting
Operating Temperature: -25°C to +60°C
Dimensions (H x W x D): 340 mm x 196 mm x 212 mm
Weight: Approx. 9.4 kg
Certifications: CE, UL, cUL, CSA
Applications
Pumps
Fans
Compressors
Crushers
Conveyors
HVAC systems
Industrial process machinery
Product Description
The ABB PSTX142-600-70 provides a superior softstarting solution with an integrated bypass, easy navigation, and thorough motor protections. It reduces mechanical wear and electrical surges, prolonging equipment lifespan while conserving energy. Ideal for essential motor applications in automation, water, building, and manufacturing industries.
Why Choose ABB PSTX142-600-70?
Integrated bypass for energy savings
Advanced motor protection features
User-friendly graphical interface
Adaptable control and communication features
Superior performance in tough environments
Order Now
Ready for immediate shipment with ABB's reliability and worldwide support.
Description
ABB PSTX142-600-70 | 142 A Softstarter, 600 V, Advanced Motor Control
Global Commercial Alias: PSTX142-600-70
Product ID: 1SFA898110R7000
ABB Type Designation: PSTX142-600-70
Catalog Description: Softstarter PSTX, 600 V, 142 A, three-phase, with advanced protection and control functions
Overview
The ABB PSTX142-600-70 is a top-tier softstarter for motors up to 75 kW (400 V), offering solid motor control and extensive protection features. Crafted for industrial settings, it supports voltages up to 600 V and manages 142 A of rated operational current. Its user-friendly interface, versatile settings, and in-built protections make it a robust solution for tough applications.
Key Features
Rated Operational Current: 142 A
Rated Operational Voltage: 208–600 V AC, 3-phase
Control Voltage: 100–250 V AC/DC
Motor Power: Up to 75 kW (400 V)
Bypass Contactor: Integrated
Display: Graphical, with keypad and navigation dial
-
Protections:
Overload
Underload
Phase loss
Locked rotor
Communication Options: Fieldbus plug-in modules (Modbus, Profibus, Ethernet, etc.)
Ramp Functions: Voltage ramp, current limit, torque control
Cooling Method: Natural convection
Technical Specifications
Model Number: PSTX142-600-70
Main Circuit Terminals: Screw type
Mounting Type: Panel mounting
Operating Temperature: -25°C to +60°C
Dimensions (H x W x D): 340 mm x 196 mm x 212 mm
Weight: Approx. 9.4 kg
Certifications: CE, UL, cUL, CSA
Applications
Pumps
Fans
Compressors
Crushers
Conveyors
HVAC systems
Industrial process machinery
Product Description
The ABB PSTX142-600-70 provides a superior softstarting solution with an integrated bypass, easy navigation, and thorough motor protections. It reduces mechanical wear and electrical surges, prolonging equipment lifespan while conserving energy. Ideal for essential motor applications in automation, water, building, and manufacturing industries.
Why Choose ABB PSTX142-600-70?
Integrated bypass for energy savings
Advanced motor protection features
User-friendly graphical interface
Adaptable control and communication features
Superior performance in tough environments
Order Now
Ready for immediate shipment with ABB's reliability and worldwide support.
