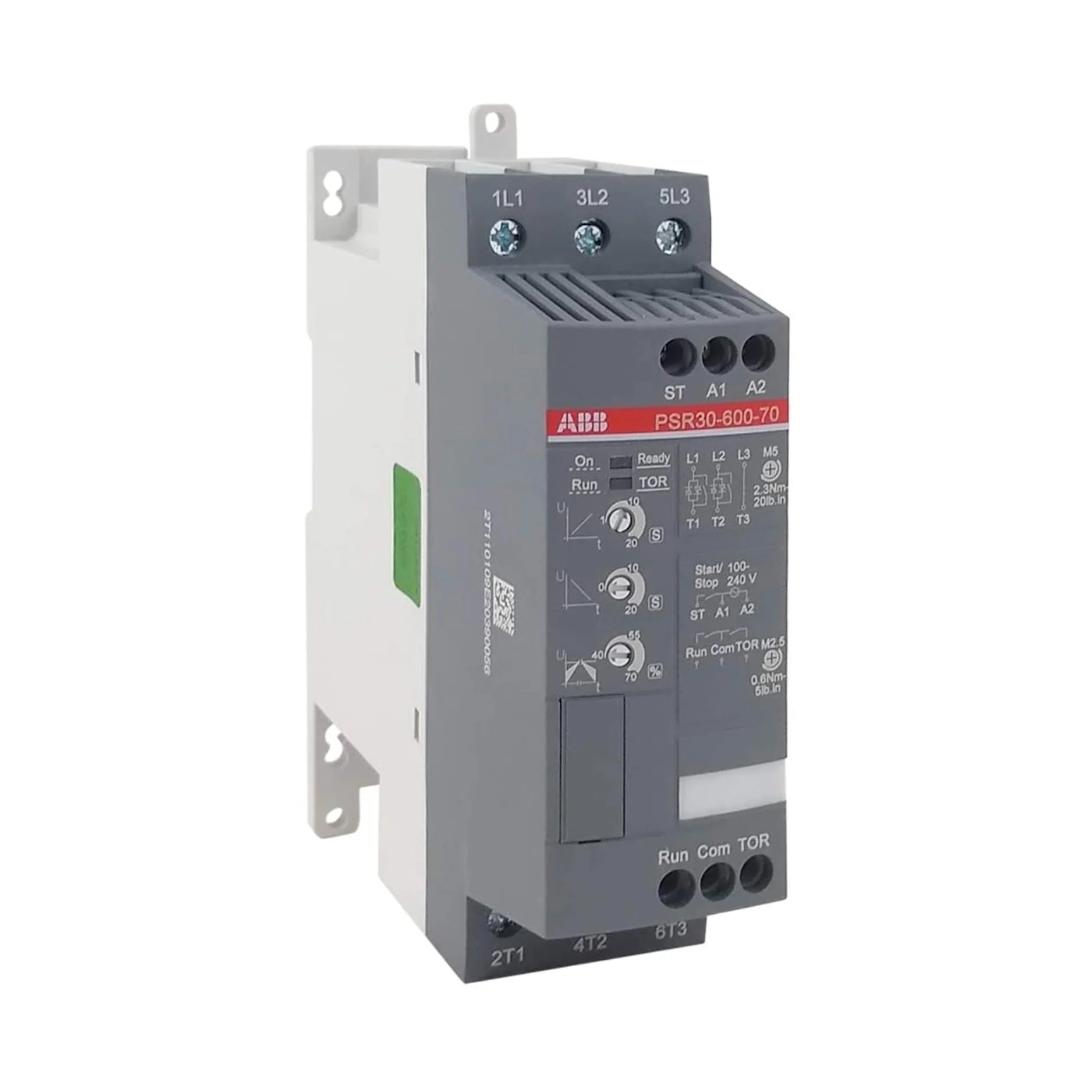

ABB PSR30-600-70 softstarter rated at 30 A, 208–600 V AC, two-phase control and bypass, compact design for starting motors.

ABB PSR30-600-70 | 1SFA896109R7000

Your Price:

$433.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

ABB PSR30-600-70 | 30 A Softstarter – 208 to 600 V AC, Compact 2-Phase Control

Global Commercial Alias: PSR30-600-70
Extended Product Type: PSR30-600-70
Product ID: 1SFA896109R7000
ABB Type Designation: PSR30-600-70
EAN: 7320500338308
Catalog Description:
PSR30-600-70 Softstarter - 30 A - 208 ... 600 V AC

Overview

The ABB PSR30-600-70 is a compact softstarter made for small three-phase motors with a rated operational current of 30 A. It supports an operating voltage range of 208 to 600 V AC, and a control voltage of 100 to 240 V AC. Its integrated two-phase control ensures smooth motor startup and stopping with voltage ramping.

Key Features

Rated Operational Current: 30 A
Operating Voltage: 208…600 V AC
Control Voltage: 100…240 V AC (50/60 Hz)
Control Type: Two-phase voltage ramp soft start and stop
Built-in Bypass: Reduces heat and energy consumption
Adjustable Start/Stop Ramps: 3 front-facing potentiometers
Signal Outputs: RUN and TOR via NO relay output
Compact Housing: Saves panel space
Max Starts per Hour: 100
Mounting: DIN rail or screw mount
Mechanical Accessories: Compatible with ABB MMS and connection kits
Communication: Optional Fieldbus via external adapter

Technical Specifications

Model Number: PSR30-600-70
Product Series: PSR (Compact Softstarters)
Rated Current: 30 A
Voltage Range: 208–600 V AC
Control Voltage: 100–240 V AC
Frequency: 50/60 Hz
Control Type: Voltage ramp (2-phase)
Built-in Bypass: Yes
Relay Outputs: RUN and TOR (NO)
Start/Stop Adjustments: Potentiometer (time and ramp)
Maximum Starts per Hour: 100
Operating Temperature: -25°C to +60°C
Degree of Protection: IP20
Standards: IEC/EN 60947-4-2
Dimensions (H x W x D): Approx. 145 mm x 45 mm x 114 mm
Weight: Approx. 0.65 kg

Applications

Pumps
Fans
Compressors
Conveyors
General machinery requiring reduced inrush current and mechanical stress

Product Description

The ABB PSR30-600-70 provides essential yet effective softstarting for small motors. Designed for easy installation, it features a built-in bypass to reduce wiring complexity and improve energy efficiency. Simple adjustments via three potentiometers allow users to fine-tune the motor startup and stop durations. This unit is ideal for OEMs and system integrators seeking a cost-effective, compact, and robust solution.

Why Choose ABB PSR30-600-70

Simplified commissioning with front-panel controls
Energy savings with internal bypass
Compact size for space-limited enclosures
Reliable motor protection with gentle starts and stops
ABB quality and global support

Order Now

Available for immediate worldwide shipping. Contact us for bulk orders, technical support, and compatible MMS or Fieldbus accessories.
