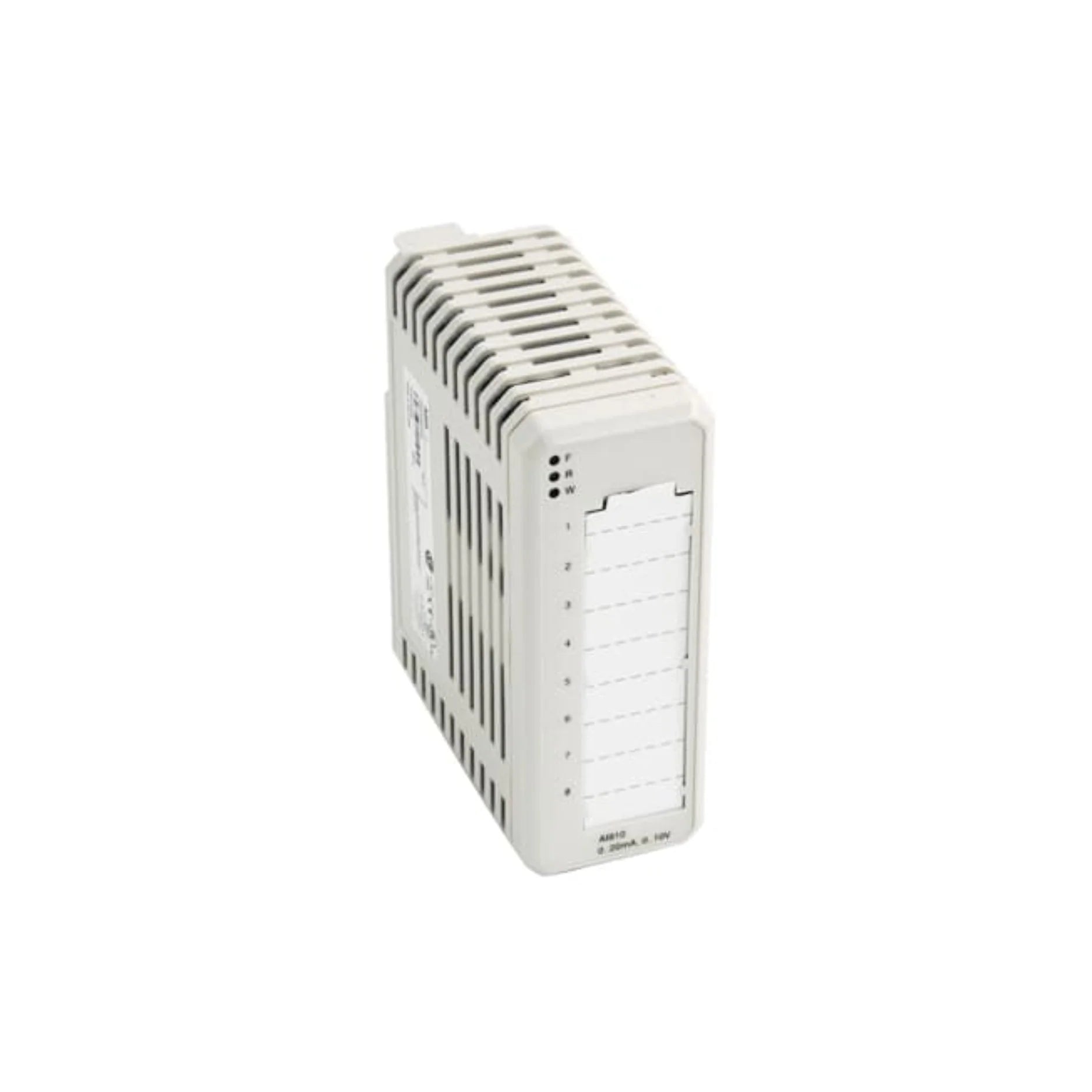

ABB AI810 | Analog Input Module 8 Channels, 0-10V, S800 I/O Series
Global Commercial Alias: AI810
Product ID: 3BSE008516R1
ABB Type Designation: AI810
Catalog Description: Analog Input Module AI810, 8 channels, 0–10 V, S800 I/O
Overview
The ABB AI810 is an 8-channel analog input module from the S800 I/O series, designed to acquire voltage signals (0–10 V) for process automation systems. It provides high accuracy and diagnostic capabilities, ensuring reliable signal acquisition in distributed control applications.
Key Features
Channels: 8 analog inputs
Input Signal: 0 to 10 V DC
Resolution: 12-bit
Input Impedance: > 200 kΩ
Status Indicators: LED for module diagnostics
Diagnostics: Channel error detection and reporting
Connection Type: 16-pin I/O connector (TU8xx series)
Mounting: DIN rail mount
Series Compatibility: ABB S800 I/O
Technical Specifications
Model Number: AI810
Power Consumption: 1.1 W
Isolation: Channel-to-bus isolation
Operating Temp: -20°C to +55°C
Storage Temp: -40°C to +70°C
Dimensions (H x W x D): 119 mm x 45 mm x 102 mm
Weight: Approx. 0.2 kg
Certifications: CE, UL, cUL, RoHS
Applications
Distributed control systems (DCS)
Process monitoring and control
Industrial automation for chemical, power, water, and oil & gas sectors
Voltage-based sensor signal acquisition
Product Description
The ABB AI810 delivers reliable 0–10 V analog input readings with high precision and robust signal conditioning. Its compatibility with S800 I/O architecture makes it ideal for scalable automation systems. Designed for efficiency, it offers easy integration, diagnostics, and compact installation.
Why Choose ABB AI810?
Accurate 0–10 V analog signal acquisition
Compact, modular design for flexible deployment
Built-in diagnostics for system reliability
Seamless integration with ABB S800 I/O and control systems
Order Now
Available for worldwide delivery.
