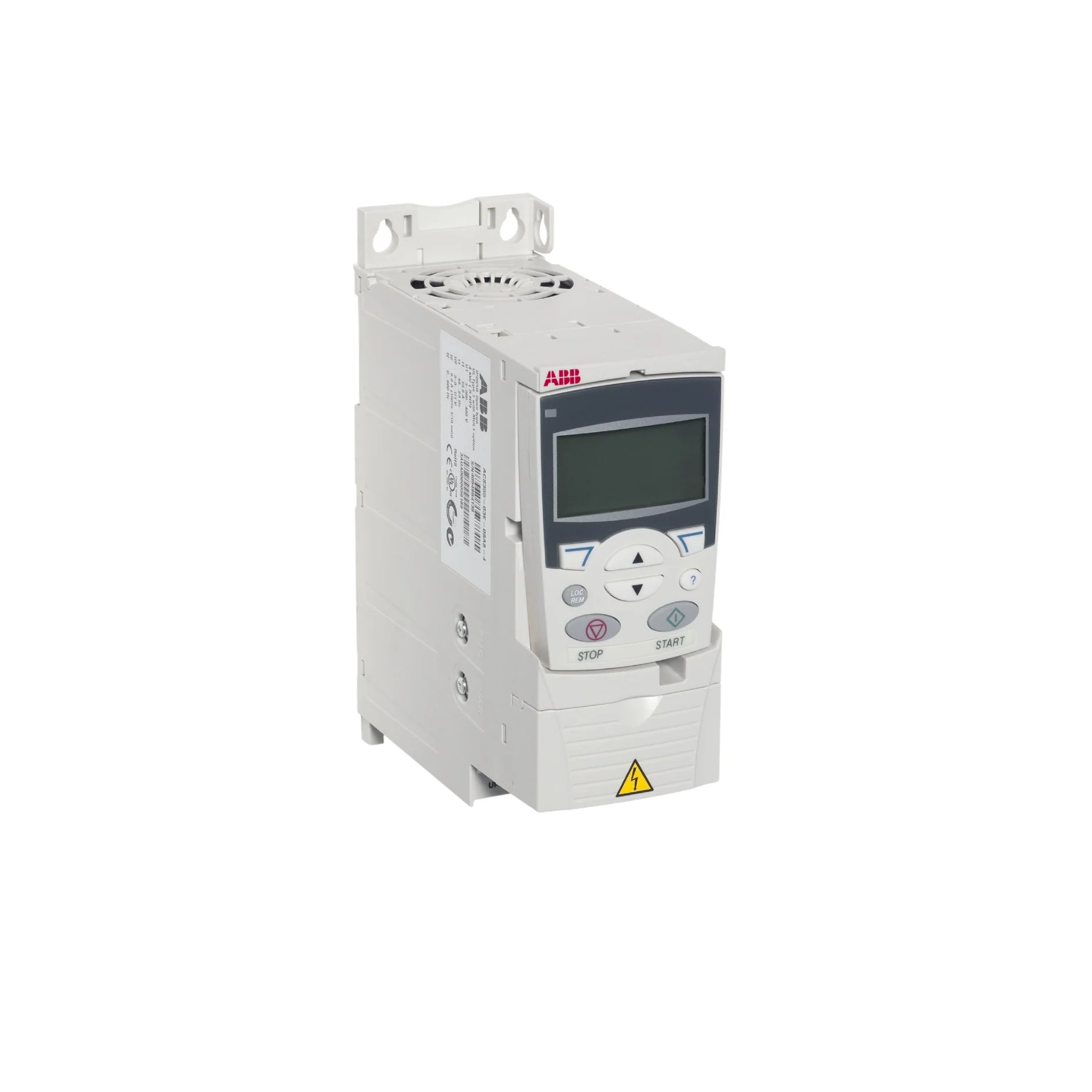

ABB ACS355-03E-07A3-4 | 3 kW Compact Frequency Drive, 400V, IP20
Global Commercial Alias: ACS355-03E-07A3-4
Product ID: 3ABD0000058248
ABB Type Designation: ACS355-03E-07A3-4
Catalog Description: Machinery drive, 3-phase, 400 V, 7.3 A, 3.0 kW, IP20
Overview
The ABB ACS355-03E-07A3-4 is a compact 3 kW variable frequency drive made for tough machinery tasks. Featuring 400V 3-phase input and IP20 casing, it offers precise motor management, built-in functionalities, and an intuitive interface for swift setup.
Key Features
Motor Power: 3 kW (4 HP)
Input Voltage: 3-phase, 380–480 V AC
Output Current: 7.3 A
Output Frequency: 0 to 500 Hz
Control Methods: Scalar (V/f), Sensorless Vector
-
Overload Capacity:
Heavy Duty: 150% for 60 sec
Normal Duty: 110% for 60 sec
Safety Function: Safe Torque Off (STO)
Communication: Modbus RTU, optional fieldbus modules
User Interface: Removable keypad with assistant
Enclosure Type: IP20
Cooling: Internal fan (forced air)
Technical Specifications
Model Number: ACS355-03E-07A3-4
Input Frequency: 50/60 Hz
Analog Inputs: 2
Digital Inputs: 5
Analog Outputs: 1
Relay Outputs: 1
Operating Temp: -10°C to +50°C (without derating)
Dimensions (H x W x D): 260 mm x 100 mm x 160 mm
Weight: Approx. 1.9 kg
Certifications: CE, UL, cUL, RoHS
Applications
Packaging machinery
Material handling systems
Textile machines
Food and beverage processing
Conveyors, mixers, pumps, and fans
Product Description
The ABB ACS355-03E-07A3-4 ensures dependable, compact motor management for OEMs and machine producers. Featuring built-in safety, solid performance, and flexible I/O, it minimizes setup time and increases operational efficiency in industrial environments.
Why Choose ABB ACS355-03E-07A3-4?
Compact and effective design for machinery
Includes STO and flexible connectivity
Simple parameterization and diagnostics
Optimized for fast setup and installation
Order Now
Available for worldwide delivery.
Description
ABB ACS355-03E-07A3-4 | 3 kW Compact Frequency Drive, 400V, IP20
Global Commercial Alias: ACS355-03E-07A3-4
Product ID: 3ABD0000058248
ABB Type Designation: ACS355-03E-07A3-4
Catalog Description: Machinery drive, 3-phase, 400 V, 7.3 A, 3.0 kW, IP20
Overview
The ABB ACS355-03E-07A3-4 is a compact 3 kW variable frequency drive made for tough machinery tasks. Featuring 400V 3-phase input and IP20 casing, it offers precise motor management, built-in functionalities, and an intuitive interface for swift setup.
Key Features
Motor Power: 3 kW (4 HP)
Input Voltage: 3-phase, 380–480 V AC
Output Current: 7.3 A
Output Frequency: 0 to 500 Hz
Control Methods: Scalar (V/f), Sensorless Vector
-
Overload Capacity:
Heavy Duty: 150% for 60 sec
Normal Duty: 110% for 60 sec
Safety Function: Safe Torque Off (STO)
Communication: Modbus RTU, optional fieldbus modules
User Interface: Removable keypad with assistant
Enclosure Type: IP20
Cooling: Internal fan (forced air)
Technical Specifications
Model Number: ACS355-03E-07A3-4
Input Frequency: 50/60 Hz
Analog Inputs: 2
Digital Inputs: 5
Analog Outputs: 1
Relay Outputs: 1
Operating Temp: -10°C to +50°C (without derating)
Dimensions (H x W x D): 260 mm x 100 mm x 160 mm
Weight: Approx. 1.9 kg
Certifications: CE, UL, cUL, RoHS
Applications
Packaging machinery
Material handling systems
Textile machines
Food and beverage processing
Conveyors, mixers, pumps, and fans
Product Description
The ABB ACS355-03E-07A3-4 ensures dependable, compact motor management for OEMs and machine producers. Featuring built-in safety, solid performance, and flexible I/O, it minimizes setup time and increases operational efficiency in industrial environments.
Why Choose ABB ACS355-03E-07A3-4?
Compact and effective design for machinery
Includes STO and flexible connectivity
Simple parameterization and diagnostics
Optimized for fast setup and installation
Order Now
Available for worldwide delivery.
