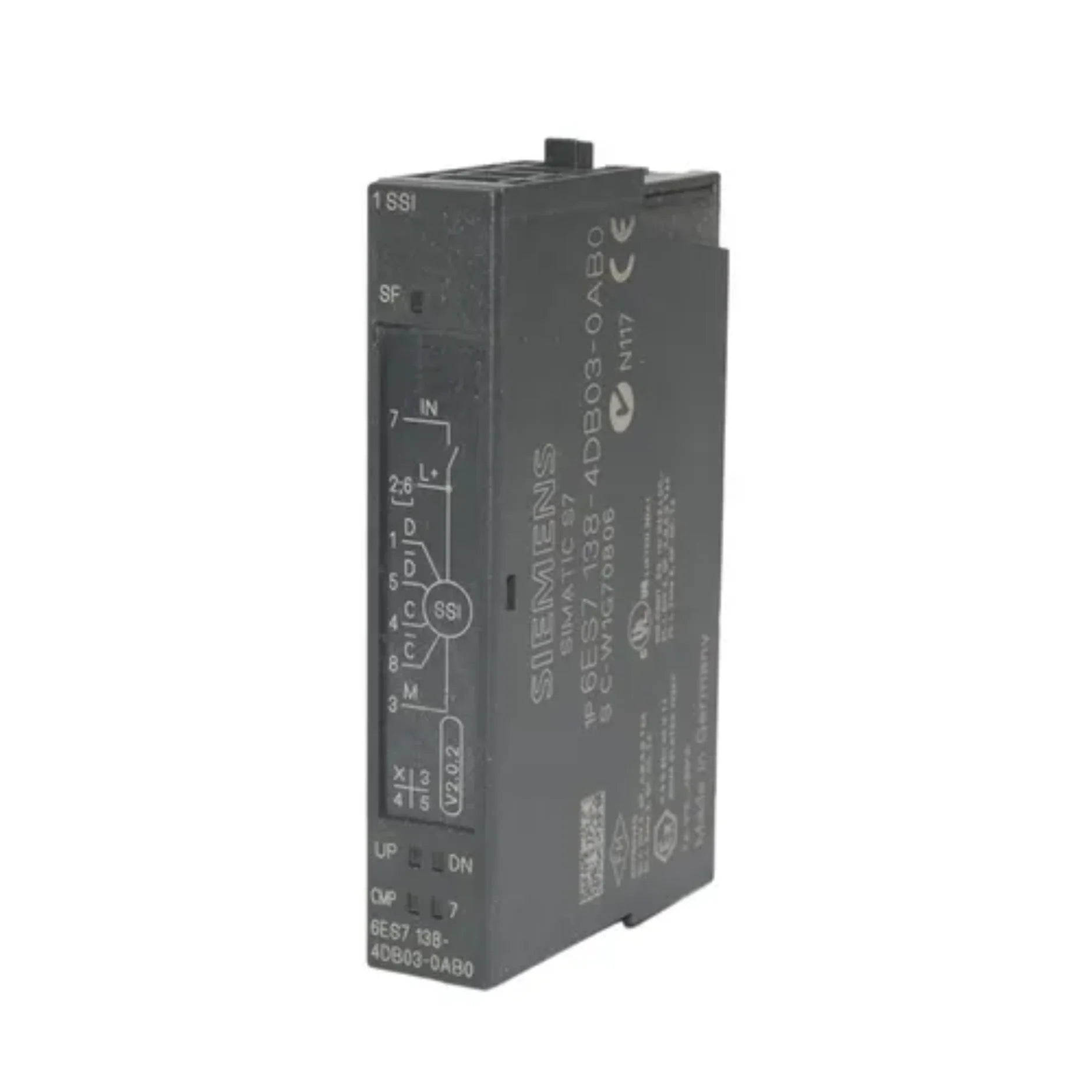

Siemens 6ES7138-4DB03-0AB0 | SIMATIC DP ET 200S SSI Module
Overview
The Siemens 6ES7138-4DB03-0AB0 is an electronic module from the SIMATIC DP ET 200S series, designed to interface with absolute encoders using the Synchronous Serial Interface (SSI) protocol. This module allows for high-precision position detection in industrial automation applications, supporting a 25-bit data format and a clock frequency of 1 MHz. Its compact 15 mm width ensures efficient space utilization within control cabinets.
Key Features
- SSI Protocol Support: Facilitates easy integration with absolute encoders using the SSI communication standard.
- High-Resolution Data Handling: Supports 25-bit data inputs, guaranteeing precise position measurements.
- Fast Data Transmission: Functions at a 1 MHz clock rate, enabling quick data updates.
- Compact Design: Narrow 15 mm width saves space in control panel setups.
- Integrated Digital Input: Includes one digital input for extra control or monitoring.
- Clock Synchronization: Offers clock synchronization capabilities for aligned data acquisition.
Technical Specifications
- Model: 6ES7138-4DB03-0AB0
- Series: SIMATIC DP ET 200S
- Interface: Synchronous Serial Interface (SSI)
- Data Width: 25 bits
- Clock Frequency: 1 MHz
- Module Width: 15 mm
- Digital Inputs: 1
- Supply Voltage: 24 V DC (20.4 V to 28.8 V permissible range)
- Encoder Supply: 24 V DC with short-circuit protection, max. 500 mA output
-
Input Voltage Range:
- Signal "0": -30 V to +5 V
- Signal "1": +11 V to +30 V
-
Input Current:
- Signal "0": Max. 2 mA
- Signal "1": Typically 9 mA
- Input Delay: Max. 300 µs for both "0" to "1" and "1" to "0"
- Cable Length: Up to 50 m (shielded) for digital inputs; up to 320 m (shielded) for encoder signals at 125 kHz
- Diagnostics: LED indicators for group error (SF), digital input status, forward and backward counting
- Operating Temperature: Suitable for standard industrial environments
- Dimensions: 15 mm (W) x 81 mm (H) x 52 mm (D)
- Weight: Approximately 40 g
Applications
- Industrial Automation: Provides accurate position feedback for machinery and robotic systems.
- Material Handling: Ensures precise control in conveyor systems and automated storage solutions.
- Process Control: Enhances measurement accuracy in industries like manufacturing, packaging, and assembly lines.
Why Choose the Siemens 6ES7138-4DB03-0AB0?
- Precision: Supports high-resolution 25-bit data input for exact position sensing.
- Efficiency: High-speed 1 MHz clock rate ensures timely data processing.
- Space-Saving: Compact 15 mm width design optimizes control cabinet space.
- Reliability: Built-in diagnostics and robust construction ensure dependable performance in industrial settings.
Order Now
Incorporate the Siemens 6ES7138-4DB03-0AB0 SSI module into your automation system to achieve precise and reliable position measurements. Enhance operational efficiency with this compact and high-performance solution suitable for modern industrial applications.
Brand-New, Authentic, Factory-Sealed Components
At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage
Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
