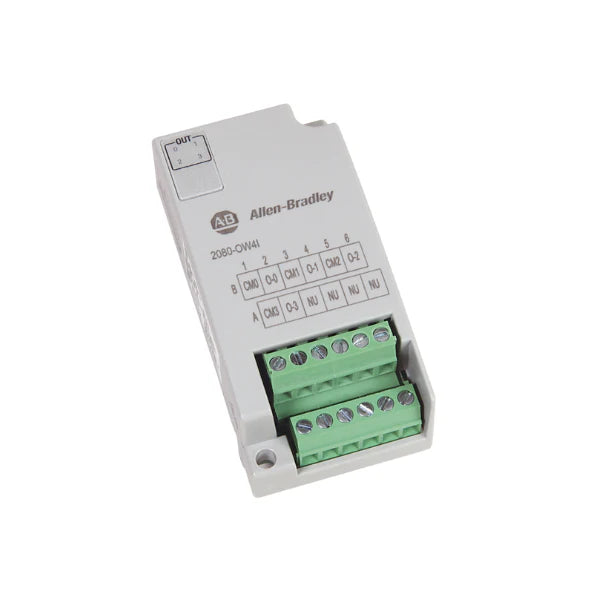

Allen-Bradley 2080-OW4I
Overview
The Allen-Bradley 2080-OW4I is a 4-channel relay output plug-in module created for use with the Micro800 family of programmable logic controllers (PLCs). This module offers isolated relay outputs, enabling flexible management of both AC and DC loads. Its compact design simplifies integration without enlarging the controller's footprint.
Key Features
Channels: 4 isolated relay outputs
Output Type: Dry contact relay closures
-
Load Capacity:
-
Resistive Loads:
2A @ 5–30V DC
2A @ 125V AC
2A @ 240V AC
-
Inductive Loads:
1.0A steady state @ 5–28V DC
0.93A steady state @ 30V DC
2.0A steady state, 15A make @ 125V AC (PF = 0.4)
2.0A steady state, 7.5A make @ 240V AC (PF = 0.4)
-
Minimum Load per Point: 10 mA
Isolation Voltage: 240V (continuous), reinforced insulation between output channels and backplane
Status Indicators: 4 yellow LEDs (one per channel)
Mounting: Direct plug-in to Micro800 controllers
Wiring Connection: Screw terminals
Technical Specifications
Catalog Number: 2080-OW4I
Backplane Power Consumption: 3.3V DC @ 38 mA
Inrush Current: <120 mA @ 3.3V, <120 mA @ 24V
Output Delay Time: ≤10 ms (ON to OFF and OFF to ON)
Wire Size: 0.05–1.31 mm² (30–16 AWG) solid copper wire rated @ 90°C
Insulation Stripping Length: 5 mm
Operating Temperature: -20°C to +65°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% non-condensing
Shock Resistance: 10 g (operational)
Vibration Resistance: 2.0 g @ 10–500 Hz
Enclosure Type Rating: None (open-style)
Certifications: UL Listed, cULus, CE, RCM, KC, UKCA
Applications
Controlling AC/DC loads such as motors, solenoids, and lamps
Industrial automation systems requiring isolated relay outputs
Expansion of output capabilities in Micro800 PLC systems
Applications needing flexible switching of various voltage levels
Why Choose the 2080-OW4I?
Compact Integration: Adds relay outputs without increasing controller size
Versatile Load Control: Handles both AC and DC loads with isolated channels
Reliable Performance: Designed for industrial environments with robust specifications
Easy Installation: Plug-in design simplifies setup and reduces wiring complexity
Order Now
The Allen-Bradley 2080-OW4I Micro800 4-Channel Relay Output Plug-in Module is available and ready to ship worldwide.
