Delta VFD5A5MS43ANSAA | 3HP Variable Frequency Drive – 460V 3-Phase, MS300 Series

Overview

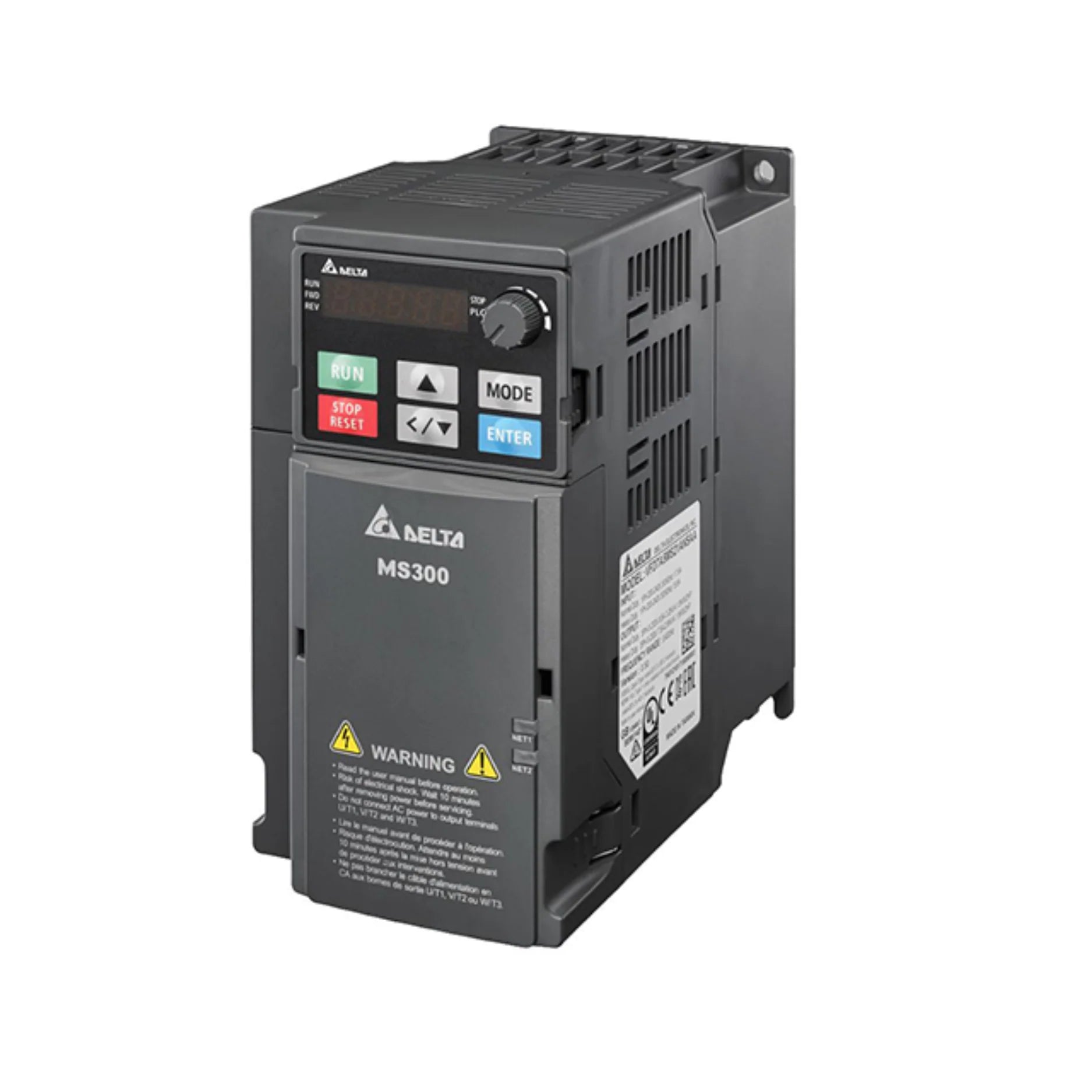

The Delta VFD5A5MS43ANSAA is a 3-horsepower (2.2 kW) variable frequency drive from Delta's MS300 series, designed for precise motor control in industrial applications. Operating with a 460V 3-phase input, it offers advanced vector control, built-in PLC functionality, and a compact design, making it suitable for a wide range of machinery and automation systems.

Key Features

• Motor Power: 3 HP (2.2 kW)

• Input Voltage: 460V AC, 3-phase

• Output Frequency: 0 to 599 Hz

• Control Methods: V/f and Sensorless Vector Control (SVC) for both Induction Motors (IM) and Permanent Magnet Motors (PM)

• Overload Capacity:

  • Normal Duty (ND): 120% of rated current for 60 seconds; 150% for 3 seconds

  • Heavy Duty (HD): 150% of rated current for 60 seconds; 200% for 3 seconds

• Built-in PLC: 2K steps capacity for simple programming needs

• Brake Chopper: Integrated for enhanced braking performance

• Safety Compliance: Safe Torque Off (STO) function meeting SIL2/PLd standards

• Communication Interfaces: Built-in RS-485 (Modbus); optional cards for CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET

• Design: Compact with side-by-side installation capability; removable 5-digit LED keypad for remote operation

• Protection Rating: IP20

Technical Specifications

• Model Number: VFD5A5MS43ANSAA

• Series: MS300

• Input Voltage Range: 380V to 480V AC (-15% to +10%)

• Input Frequency: 50/60 Hz

• Output Voltage: 0 to input voltage

• Output Frequency Range: 0 to 599 Hz

• Rated Output Current:

  • Heavy Duty: 5.5 A

  • Normal Duty: 6.5 A

• Control Inputs:

  • Analog Inputs: 2 (0–10V DC, 0–20mA, or 4–20mA)

  • Digital Inputs: 7 programmable (1 can be used as high-speed pulse input up to 33 kHz)

• Control Outputs:

  • Analog Output: 1 (0–10V DC or 0–20mA)

  • Digital Outputs: 2 programmable

  • Relay Output: 1 set of changeover contacts

• Cooling Method: Forced air cooling

• Operating Temperature: -20°C to +60°C

• Dimensions (H x W x D): 157 mm x 87 mm x 152 mm

• Weight: Approximately 1.2 kg

• Certifications: CE, UL, cUL

Applications

• Machine Tools: Precise speed and torque control for lathes, milling machines, and grinders

• Textile Machines: Efficient operation of spinning and weaving equipment

• Woodworking Machines: Smooth control of saws, planers, and routers

• Packaging Machines: Accurate handling of conveyors, fillers, and sealers

• Fans and Pumps: Energy-efficient control in HVAC and water treatment systems

• Air Compressors: Optimized performance and energy savings

Why Choose Delta VFD5A5MS43ANSAA?

• Versatile Motor Control: Supports both IM and PM motors with advanced vector control

• Compact Design: Saves space with side-by-side installation capability

• Integrated Functions: Built-in PLC and brake chopper reduce the need for external components

• Enhanced Safety: STO function ensures compliance with safety standards

• Flexible Communication: Multiple communication options for seamless integration into various systems
