Allen-Bradley 20AC022A0AYNANC0

Product Description:

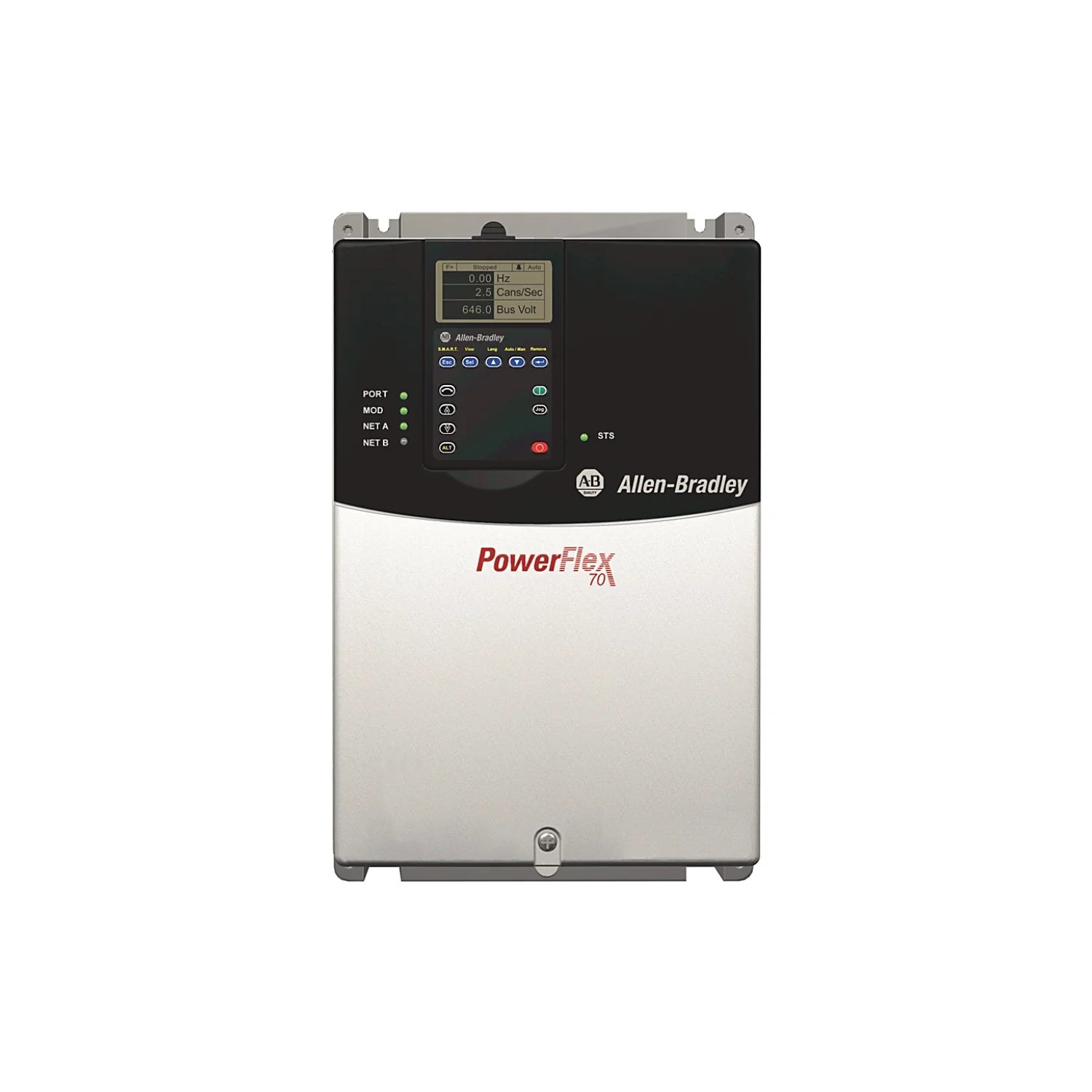

Allen-Bradley PowerFlex 70 20AC022A0AYNANC0 AC Drive – Compact, Cost-Effective, and EMC-Compliant Motor Control with Conformal Coating for Challenging Settings

The Allen-Bradley PowerFlex 70 20AC022A0AYNANC0 AC Drive is a compact, budget-friendly solution ideal for various general-purpose industrial applications adhering to European EMC directives. This drive ensures reliable and efficient motor control with a minimal footprint, perfect for space-limited installations. It is designed for panel mounting and includes a built-in brake IGBT for dynamic braking (external resistor needed). A notable feature is the integrated Second Environment Filter for compliance with CE EMC directives (89/336/EEC). Additionally, it features conformal coating for enhanced protection against harsh conditions.²

Key Features:

• Compact Design: Minimizes space requirement on panels.
• 400V AC, 3-Phase Input: Compatible with European industrial power systems.
• Dual Rating (11kW / 15HP ND / 7.5kW / 10HP HD): Flexibility for handling multiple load profiles.
• Panel Mount - IP20 / NEMA Type 1: Suitable for installation within protected environments.
• Brake IGBT Installed: Offers dynamic braking with an external resistor required.
• Enhanced Control: Advanced features for optimum motor performance.
• No Feedback: Functions in open-loop control mode.
• No HIM (Blank Plate): Configuration typically done via software without a Human Interface Module.
• Without Drive Mounted Brake Resistor: External brake resistor required for dynamic braking.
• Second Environment Filter (CE EMC Directive 89/336/EEC): Includes filter for CE EMC standards in specific environments.
• No Communication Module: Lacks network connectivity options.
• Conformal Coating: Provides enhanced protection against harsh environments like humidity, dust, and corrosive substances.³

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)⁴
• Series: PowerFlex 70
• Model: 20AC022A0AYNANC0
• Input Voltage: 400V AC, 3-Phase
• Output Current: 22 A
• Capacity: 11kW / 15HP (Normal Duty), 7.5kW / 10HP (Heavy Duty)
• Enclosure: Panel Mount - IP20 / NEMA Type 1⁵
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Second Environment Filter (CE EMC Directive 89/336/EEC)
• Communication: No Communication Module⁶
• Control: Enhanced Control
• Feedback: No Feedback
• Conformal Coating: Yes

Applications:

The Allen-Bradley PowerFlex 70 20AC022A0AYNANC0 AC Drive is perfectly suited for a range of general-purpose industrial applications needing CE compliance, especially in challenging settings, such as:

• Conveyors
• Pumps
• Fans
• Material handling equipment
• Small machines
• Simple positioning applications
• Applications requiring compliance with European EMC directives
• Applications in humid, dusty, or corrosive environments

Benefits:

• Cost-Effective Solution: Economic option for fundamental motor control needs.
• Compact Size: Saves essential panel space.
• Simplified Installation: Facilitates easy panel mounting.
• Dynamic Braking Capability: Built-in brake IGBT for controlled deceleration with a proper external resistor.
• CE EMC Compliance: Built-in Second Environment Filter ensures adherence to European EMC directives.⁷
• Enhanced Durability: Conformal coating adds protection against tough environmental conditions.
