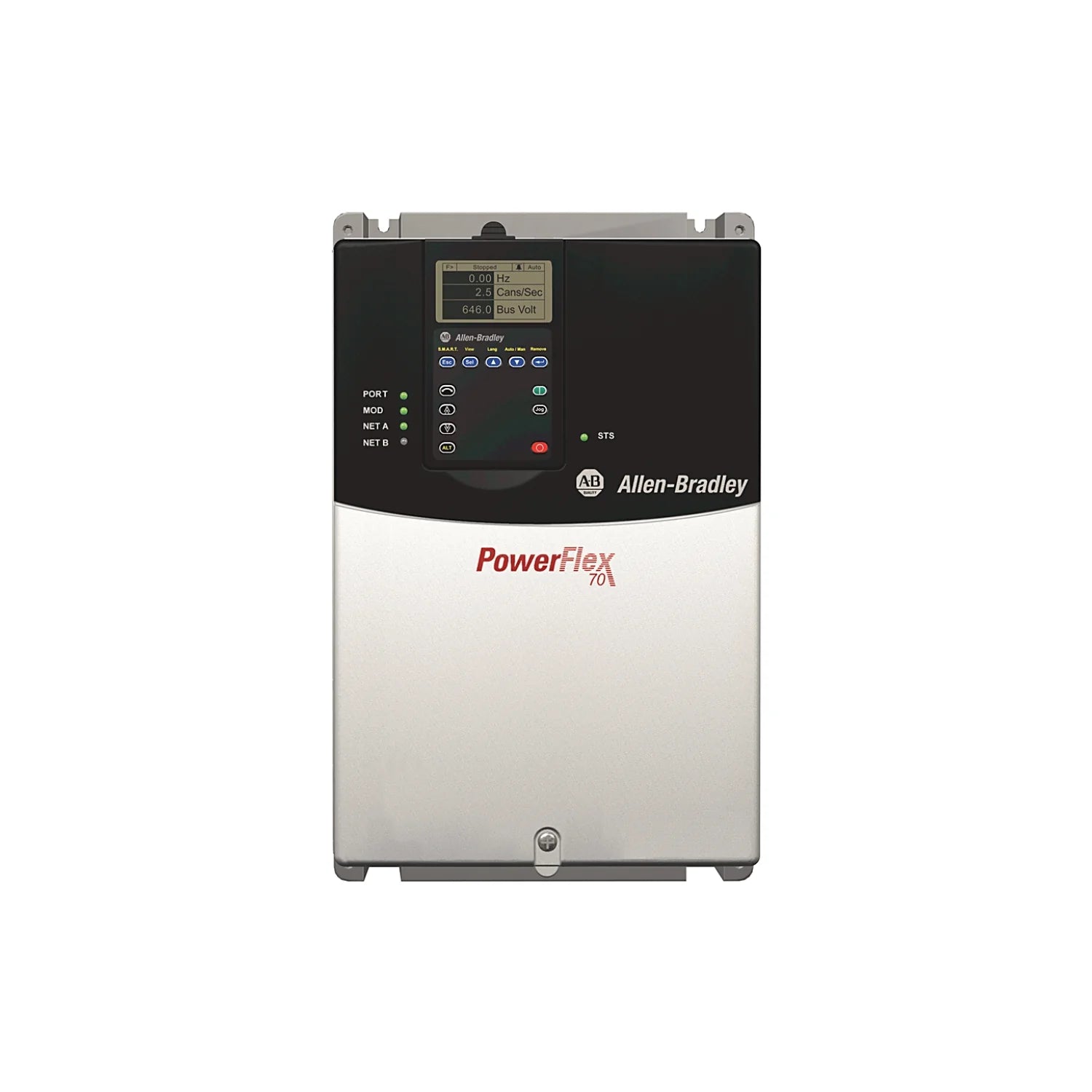

Allen-Bradley PowerFlex 70 20AC015A0AYNANC0 AC Drive – Compact, Cost-Effective, and EMC-Compliant Motor Control for Demanding Environments

The Allen-Bradley PowerFlex 70 20AC015A0AYNANC0 AC Drive provides a compact and economical solution ideal for various general-purpose industrial applications meeting European EMC directives. This drive ensures reliable and efficient motor control with a minimal footprint, perfect for installations with limited space. Designed for panel mounting, it includes a built-in brake IGBT for dynamic braking (requires an external resistor). A notable feature of this model is the integrated Second Environment Filter, ensuring adherence to CE EMC directives (89/336/EEC). This model also comes with conformal coating for enhanced protection in harsh environments.¹

Key Features:

• Compact Design: Small footprint optimizes panel space.²
• 400V AC, 3-Phase Input: Designed for compatibility with standard European industrial power systems.
• Dual Rating (7.5 kW ND / 5.5 kW HD): Offers operational flexibility for handling various load profiles.³
• Panel Mount - IP20 / NEMA Type 1: Designed for mounting within protected industrial environments.
• Brake IGBT Installed: Provides dynamic braking capability for controlled deceleration; an external brake resistor is required for operation.
• Enhanced Control: Offers advanced control features for optimized motor performance.⁴
• No Feedback: Operates in open-loop control mode.
• No HIM (Blank Plate): Does not include a Human Interface Module (HIM); configuration is typically performed via software.
• Without Drive Mounted Brake Resistor: Requires the use of an external brake resistor for dynamic braking functionality.
• Second Environment Filter (CE EMC Directive 89/336/EEC): Includes a filter for compliance with CE EMC standards for use in second environment industrial locations.
• No Communication Module: Lacks an optional communication module for network connectivity.
• Conformal Coating: Provides enhanced protection against harsh environments, including humidity, dust, and corrosive substances.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)⁵
• Series: PowerFlex 70
• Model: 20AC015A0AYNANC0
• Input Voltage: 400V AC, 3-Phase⁶
• Output Current: 15.4 A
• Capacity: 7.5 kW (Normal Duty), 5.5 kW (Heavy Duty)
• Enclosure: Panel Mount - IP20 / NEMA Type 1⁷
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Second Environment Filter (CE EMC Directive 89/336/EEC)
• Communication: No Communication Module
• Control: Enhanced Control
• Feedback: No Feedback
• Conformal Coating: Yes

Applications:

The Allen-Bradley PowerFlex 70 20AC015A0AYNANC0 AC Drive is well-suited for a variety of general-purpose industrial applications requiring CE compliance, especially those in harsh environments, including:

• Conveyors
• Pumps
• Fans
• Material handling equipment
• Small machines
• Simple positioning applications
• Applications requiring compliance with European EMC directives
• Applications in humid, dusty, or corrosive environments

Benefits:

• Cost-Effective Solution: Provides an economical solution for basic motor control requirements.
• Compact Size: Conserves valuable panel space.
• Simplified Installation: Designed for straightforward panel mounting.
• Dynamic Braking Capability: Built-in brake IGBT allows for controlled deceleration when paired with an appropriately sized external resistor.⁸
• CE EMC Compliance: Integrated Second Environment Filter ensures compliance with European EMC directives.⁹
• Enhanced Durability: Conformal coating provides added protection against harsh environmental conditions.¹⁰
