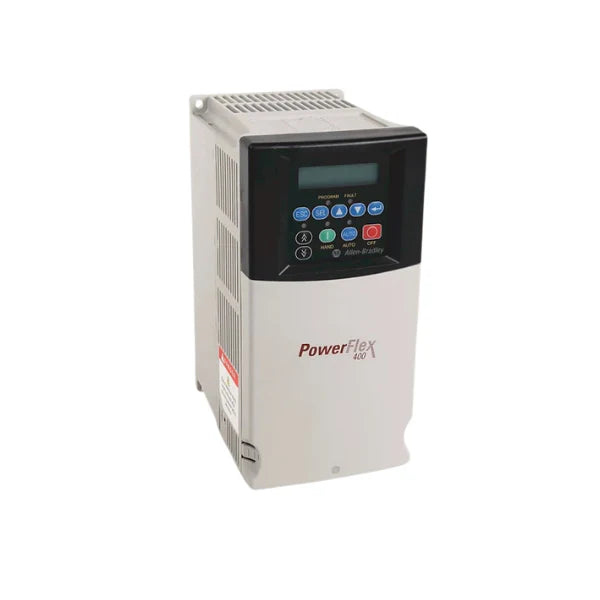

Allen-Bradley 22C-D022N103 drive, 15 HP, 480V, IP20, frame C. RS485 communication, fixed keypad for fan and pump control.

Allen-Bradley 22C-D022N103

Your Price:
$1,410.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 22C-D022N103 | PowerFlex 400 Fan & Pump AC Drive – 15 HP, 480V, Frame C

Overview

The Allen-Bradley 22C-D022N103 offers exceptional PowerFlex 400 AC variable frequency drive (VFD) performance, perfect for fan and pump management. With a 480V AC input, 22 A output, and capability for motors up to 15 HP (11 kW), it provides energy-efficient speed management for HVAC and industrial systems. Housed in a Frame Size C, it features an IP20 open-type enclosure and a fixed keypad for onboard programming and control.

Equipped with integrated RS-485 communication, the 22C-D022N103 ensures seamless integration into automation systems, ideal for controlling centrifugal fans, booster pumps, and irrigation setups.

Key Features

  • Input Voltage: 480V AC, 3-phase

  • Output Current: 22 A

  • Motor Power Rating: 15 HP / 11 kW

  • Frame Size: C

  • Enclosure Type: IP20 (open type)

  • Control Panel: Fixed keypad

  • Integrated Communication: RS-485 (Modbus RTU)

  • Application Type: Optimized for fans and pumps

  • Built-in Features: Flying start, sleep mode, catch-on-the-fly, and auto restart

  • No Brake IGBT – Suitable for standard fan/pump applications without braking demands

Technical Specifications

  • Model Number: 22C-D022N103

  • Series: PowerFlex 400

  • Voltage Class: 480V AC

  • Phases: 3-phase

  • Frequency: 50/60 Hz

  • Output Current: 22 A

  • Motor Rating: 11 kW (15 HP)

  • Frame Size: C

  • Keypad: Fixed, built-in

  • Enclosure: IP20, open style

  • Communication Ports: RS-485 (Modbus RTU, DSI protocol)

  • Operating Temperature: 0 to +50 °C (without derating)

  • Mounting Type: Panel mount

  • Certifications: CE, UL, cUL, RoHS

Applications

  • HVAC Systems – Manage fans, exhaust units, and air handlers

  • Water/Wastewater – Booster and irrigation pumps

  • Industrial Ventilation – For exhaust or air supply fans

  • Chiller Systems – Speed adjustment for efficiency

  • Commercial Buildings – Efficient fan and pump automation

Why Choose the Allen-Bradley 22C-D022N103?

  • Customized for fan and pump tasks with advanced control algorithms

  • Simplified setup with fixed keypad and built-in communication

  • Dependable, efficient performance from a renowned industrial automation brand

Order Now

Ready for prompt international shipment.

Brand-New, Authentic, Factory-Sealed Components At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
PLCVERSE is an independent seller of industrial automation equipment. We are not an authorized distributor, partner, or representative of any of the manufacturers featured on this website. All brand names, trademarks, and logos remain the property of their respective owners. PLCVERSE has no association or endorsement from ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other brands mentioned.
