Allen-Bradley 20AC5P0A0AYYANC0

Product Description:

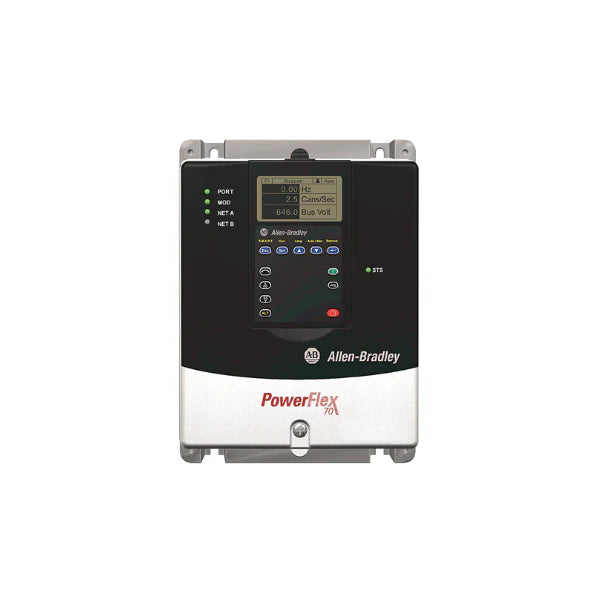

The Allen-Bradley 20AC5P0A0AYYANC0 PowerFlex 70 AC drive delivers flexibility for numerous industrial applications. With a Normal Duty rating of 2.2 kW and Heavy Duty rating of 1.5 kW, it features a 5 Amp output current and is compatible with 400V AC three-phase input.

This model allows panel mounting inside an IP20/NEMA Type 1 enclosure, designed for secure settings. It includes conformal coating to ensure durability in challenging conditions. The model doesn't include HIM (Human Interface Module), relying on external configuration. Equipped with a brake IGBT and drive-mounted brake resistor, it eliminates the necessity for an external brake resistor. Comes with a second environment filter meeting the CE EMC directive (89/336/EEC). Without a communication module, it offers superior control yet lacks feedback. It's IN STOCK and ready for quick shipment.

Key Features and Specifications:

• 2.2 kW (Normal Duty) / 1.5 kW (Heavy Duty) Rating: Suitable for diverse motor operations.
• 400V AC, 3-Phase Input: Compatible with standard industrial power systems.
• 5 Amp Output Current: Provides sufficient current for motors.
• Panel Mount - IP20/NEMA Type 1: Ideal for secure environments.
• Conformal Coating: Provides extra protection against harsh conditions.
• No HIM (Blank Plate): Requires external programming.
• Brake IGBT Installed: Enables dynamic braking.
• Drive-Mounted Brake Resistor Installed: Offers integrated braking functionality.
• Second Environment Filter (CE EMC): Adheres to CE EMC standards.
• No Communication Module: An optional module is needed for networking.
• Enhanced Control: Provides advanced control algorithms.
• No Feedback: Operates using open-loop control.
• In Stock: Order now for fast delivery.

Technical Specifications:

• Catalog Number: 20AC5P0A0AYYANC0
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-Input Voltage, 3-Phase
• Output Current: 5 Amps
• Power Rating: 2.2 kW (Normal Duty), 1.5 kW (Heavy Duty)
• Enclosure: Panel Mount - IP20/NEMA Type 1
• Cooling Method: Convection/Heatsink (Likely)
• Braking: Brake IGBT Installed, Drive-Mounted Brake Resistor Installed
• Resistor Ohms/Watts: (Check documentation. This is important due to the integrated resistor.)
• Filtering: Second Environment Filter (CE EMC)
• Control Method: Enhanced Control (Sensorless Vector Control)
• Feedback: No Feedback (Open Loop)

Applications:

• Perfect for tasks needing frequent or powerful braking.
• Ideal for pumps, fans, and high inertia loads.
• Conveyors.
• Material handling systems.
• General industrial uses where feedback is unnecessary.

Benefits:

• Built-in Braking: Simplifies setup and reduces external parts needed.
• Effective Braking: Provides robust dynamic braking.
• Cost-Effective: More affordable than external brakes in certain applications.
• Advanced Control: Offers superior algorithms for better performance.
• Durable Coating: Suited for demanding environments.

Why Choose the 20AC5P0A0AYYANC0?

• Readily Available: Minimizes downtime.
• Great Prices: Offers competitive pricing.
• Prompt Delivery: We guarantee swift shipping.
• Expert Assistance: Our team supports drive selection and usage.
• USA Support: Local service and speedy shipment within the USA.
• Reliable Supplier.

Looking for more options? Discover our complete range of Allen-Bradley PowerFlex 70 Variable Frequency Drives
