Allen-Bradley 1336S-BRF15-AE-DE4

Product Description

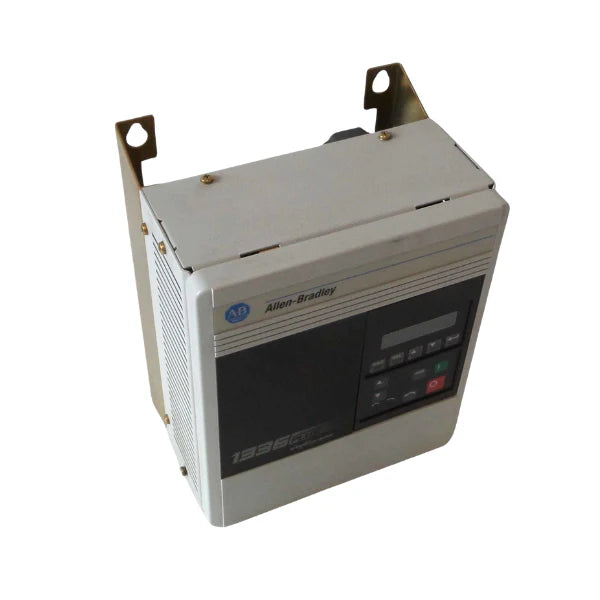

Allen-Bradley 1336S-BRF15-AE-DE4 – Advanced Variable Frequency Drive for Industrial Applications

The Allen-Bradley 1336S-BRF15-AE-DE4 is a high-performance variable frequency drive (VFD) designed to deliver efficient and reliable motor control in industrial applications. This drive provides enhanced flexibility for adjusting the speed and torque of motors, boosting energy efficiency, and lowering operational costs in manufacturing, processing, and other industrial settings.

Technical Specifications

• Model Number: 1336S-BRF15-AE-DE4
• Type: Variable Frequency Drive (VFD)
• Power Rating: 15 HP
• Input Voltage: 380-480V AC
• Output Voltage: 0-480V AC
• Current Rating: 22 Amps
• Frequency Range: 0-400 Hz
• Control Type: Sensorless vector control and V/Hz control
• Cooling Type: Forced air cooling
• Communication Options: Optional communication modules (Modbus, DeviceNet, etc.)
• Protection Features: Overload, overcurrent, undervoltage, overvoltage, and short circuit protection
• Environmental Ratings: IP20
• Temperature Rating: -10°C to 50°C (14°F to 122°F)
• Dimensions: Compact design for easy integration
• Mounting Type: Wall or panel mounting
• Certifications: UL, CE, and CSA certified

Key Features

1. Efficient Motor Control

The 1336S-BRF15-AE-DE4 VFD provides precise and efficient motor control, allowing for variable speed adjustment, smooth torque control, and reduced mechanical stress on motors. It enhances the performance and lifespan of industrial equipment.

2. Energy Savings

By modulating motor speed based on demand, the 1336S-BRF15-AE-DE4 can lower energy consumption, leading to substantial cost savings, particularly in applications with fluctuating load conditions.

3. Wide Frequency Range

This drive supports a frequency range of 0-400 Hz, making it ideal for various industrial motor control applications demanding high-speed or low-speed operation.

4. Robust Protection Features

The 1336S-BRF15-AE-DE4 is equipped with advanced protection features, including overcurrent, undervoltage, and short circuit protection. These features boost the reliability and safety of both the drive and the connected equipment.

5. Easy Integration

With multiple communication options, such as Modbus and DeviceNet, the 1336S-BRF15-AE-DE4 VFD integrates seamlessly into existing automation systems, facilitating easier control and monitoring of motor-driven equipment.

6. Compact Design

The drive’s compact and space-efficient design makes it suitable for applications with limited space, allowing for effortless installation and integration into control panels or machinery.

Applications

The Allen-Bradley 1336S-BRF15-AE-DE4 Variable Frequency Drive is suitable for a broad range of industrial applications, such as:

• Conveyor Systems: Smooth motor control for varying speeds, reducing mechanical component wear.
• Pumps and Fans: Energy-efficient control of pumps, fans, and blowers in HVAC, water treatment, and industrial processing.
• Machinery Control: Precise motor speed and torque control for industrial machinery and equipment.
• Industrial Automation: Integration into automated systems for enhanced motor management and process control.
• Packaging and Material Handling: Efficient speed regulation for consistent production and material handling processes.
