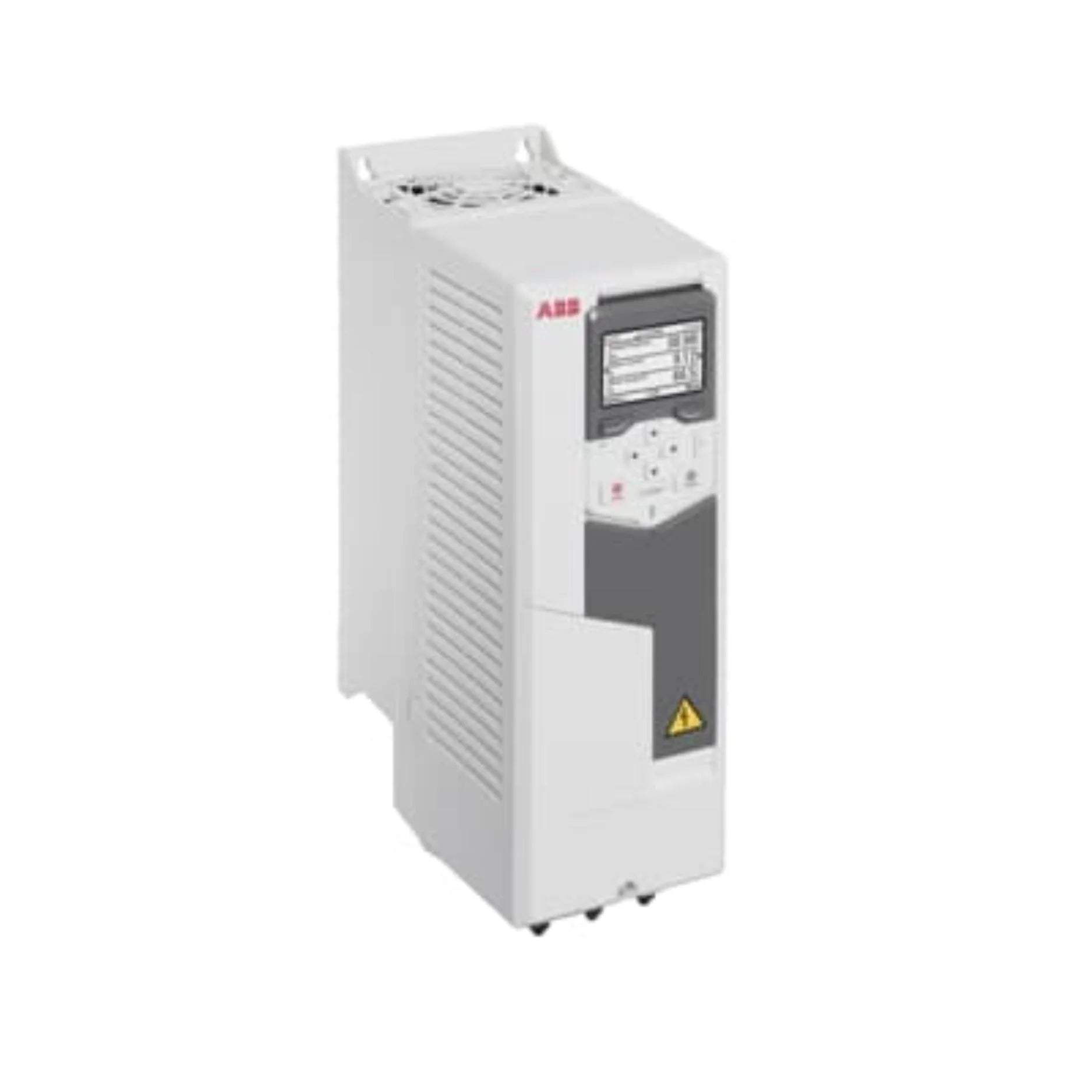

ABB ACS580-01-12A7-4 | 5.5 kW Variable Frequency Drive – 400V 3-Phase, IP21, ACS580 Series
Global Commercial Alias: ACS580-01-12A7-4
Product ID: 3AXD50000038953
ABB Type Designation: ACS580-01-12A7-4
EAN: 6438177459231
Catalog Description:
LV AC general purpose wall-mounted drive, IEC: Pn 5.5 kW, 12.6 A, 400 V (ACS580-01-12A7-4)
Overview
The ABB ACS580-01-12A7-4 is a 5.5 kW (7.5 HP) general-purpose VFD from the ACS580 series, crafted for both constant and variable torque tasks in light industrial settings. With its 400V 3-phase input and IP21 enclosure, it suits usage in pumps, fans, mixers, and conveyor systems.
Key Features
Motor Power: 5.5 kW (7.5 HP)
Input Voltage: 380–480V AC, 3-phase
Output Current: 12.6 A
Output Frequency: 0 to 500 Hz
Control Modes: V/f and Sensorless Vector Control
-
Overload Capacity:
Heavy Duty: 150% for 60 seconds
Normal Duty: 110% for 60 seconds
Enclosure: IP21 (wall-mounted)
Safety Function: Safe Torque Off (STO)
EMC Filter: Built-in, Category C2
Communication: Modbus RTU (RS-485)
User Interface: Integrated keypad with USB connection
Cooling Method: Forced air cooling
Technical Specifications
Model Number: ACS580-01-12A7-4
Rated Output Current: 12.6 A
Input Frequency: 50/60 Hz
Analog Inputs: 2
Digital Inputs: 6
Analog Outputs: 2
Relay Outputs: 3
Operating Temperature: -15°C to +50°C
Dimensions (H x W x D): 443 mm x 203 mm x 229 mm
Weight: Approx. 9.2 kg
Certifications: CE, UL, cUL
Applications
Pumps
Fans
Compressors
Conveyors
Mixers
Centrifuges
Extruders
Used in sectors such as food and beverage, plastics, textiles, material handling, and agriculture.
Product Description
The ACS580-01-12A7-4 is engineered for usability and dependability. All major features are integrated, reducing the need for added hardware. Its user-friendly control panel and setup assistants allow rapid commissioning and smooth operation. Also available in IP55 and flange-mounted versions for more challenging environments.
Why Choose ABB ACS580-01-12A7-4
Integrated functionality minimizes panel complexity
Streamlined setup with built-in assistants
Robust design for diverse industrial uses
Effective control for both variable and constant torque loads
Order Now
Available for immediate global shipping.
