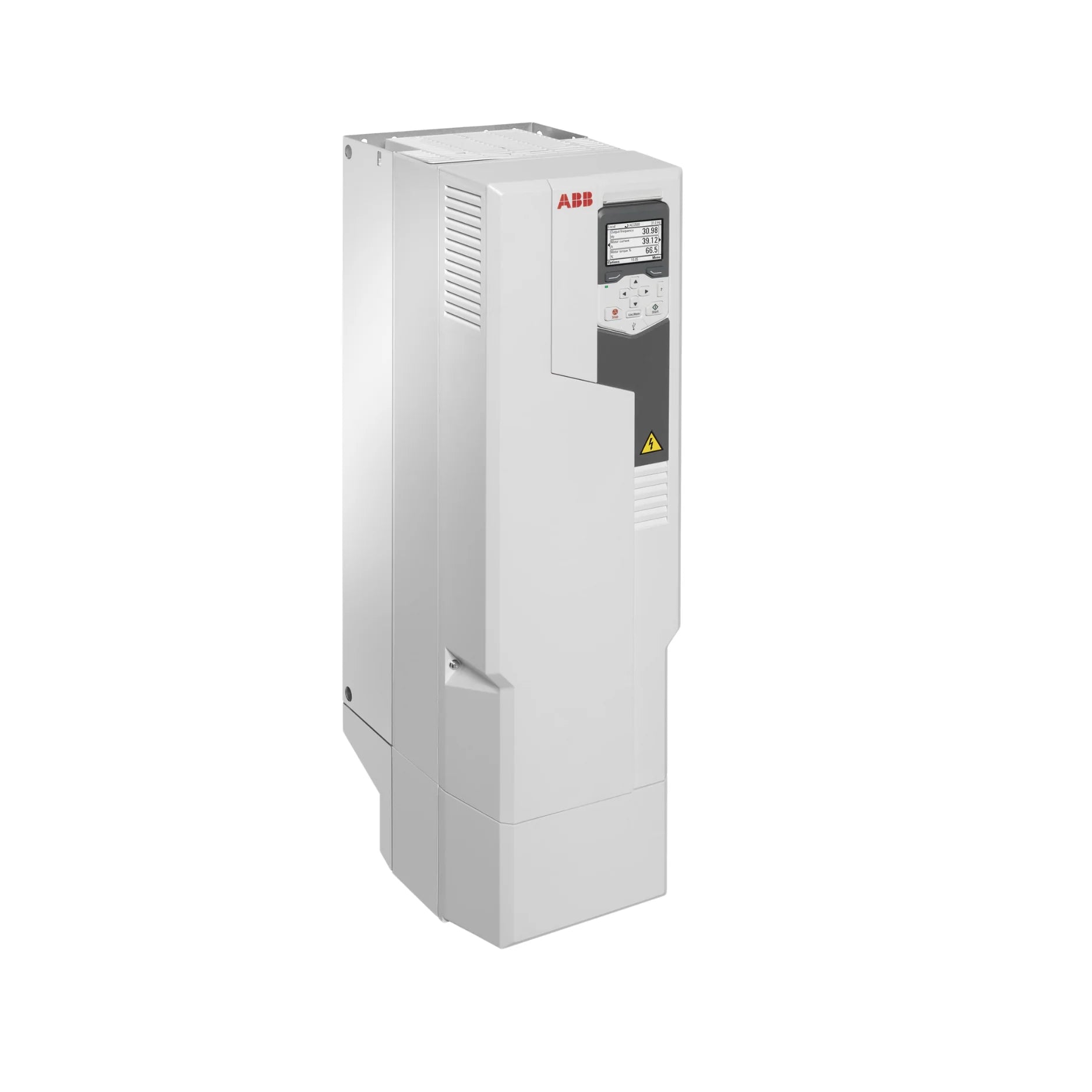

ABB ACS580-01-106A-4 | 55 kW Variable Frequency Drive – 400V 3-Phase, IP21, ACS580 Series
Global Commercial Alias: ACS580-01-106A-4
Product ID: 3AUA0000080503
ABB Type Designation: ACS580-01-106A-4
EAN: 6438177305590
Catalog Description:
LV AC general purpose wall-mounted drive, IEC: Pn 55 kW, 106 A, 400 V (ACS580-01-106A-4)
Overview
The ABB ACS580-01-106A-4 is a 55 kW (75 HP) general-purpose variable frequency drive designed for versatile motor control. Featuring a 106 A output current, a 400V 3-phase input, and an IP21 wall-mounted enclosure, this drive eases installation and configuration with built-in features for reliable performance.
Key Features
Motor Power: 55 kW (75 HP)
Input Voltage: 380–480V AC, 3-phase
Output Current: 106 A
Output Frequency: 0 to 500 Hz
Control Modes: V/f and Sensorless Vector Control
-
Overload Capacity:
Heavy Duty: 150% for 60 seconds
Normal Duty: 110% for 60 seconds
Enclosure: IP21 (standard wall-mounted)
Built-in EMC Filter: Category C2
Safety Function: Safe Torque Off (STO)
Communication: Modbus RTU (RS-485)
Interface: Integrated keypad and USB for PC connectivity
Cooling Method: Forced air
Technical Specifications
Model Number: ACS580-01-106A-4
Input Frequency: 50/60 Hz
Analog Inputs: 2
Digital Inputs: 6
Analog Outputs: 2
Relay Outputs: 3
Operating Temperature: -15°C to +50°C
Dimensions (H x W x D): 725 mm x 302 mm x 285 mm
Weight: Approx. 29.4 kg
Certifications: CE, UL, cUL
Applications
Pumps
Fans
Compressors
Conveyors
Mixers
Centrifuges
Extruders
Ideal for light industrial sectors such as food and beverage, plastics, textiles, material handling, and agriculture.
Product Description
The ACS580-01-106A-4 supports both constant and variable torque loads. Its features lessen the need for additional hardware and simplify commissioning. The durable IP21 design is optimal for standard industrial settings. Optional IP55 and flange-mount versions offer extra protection.
Why Choose ABB ACS580-01-106A-4
All essential features included
Quick setup and reliable performance
Effective motor control for diverse applications
Applicable for light to heavy industrial use
Order Now
Available for global delivery. Contact us for quotes, accessories, or technical support for integration.
