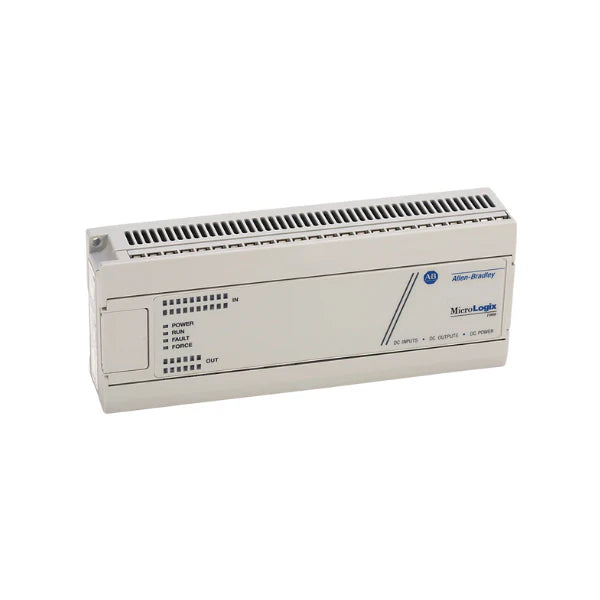

Allen-Bradley 1761-L32BBB
Overview
The Allen-Bradley 1761-L32BBB is a compact MicroLogix 1000 PLC with 32 I/O points, intended for small to medium automation tasks. It features 20 digital inputs, 10 FET outputs, and 2 relay outputs, operating on a 24V DC power supply. With an integrated RS-232 communication port and 1K EEPROM memory, it provides consistent performance for various industrial applications.
Key Features
-
I/O Configuration:
-
20 digital inputs (24V DC)
-
10 FET outputs (24V DC)
-
2 relay outputs (24–125V DC / 0–240V AC)
-
-
Power Supply: 24V DC (20.4–26.4V DC)
-
Memory: 1K EEPROM (approx. 737 instruction words, 437 data words)
-
Communication Port: RS-232 (DF1 protocol)
-
Input Type: Sinking/Sourcing configurable
-
Output Type: Mixed (FET and relay)
-
Mounting: DIN rail or panel mount
-
Dimensions (H x W x D): 3.15 in x 7.87 in x 1.57 in
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
-
Certifications: UL, CSA, CE compliant
Technical Specifications
-
Catalog Number: 1761-L32BBB
-
Input Voltage Range: 14–30V DC
-
Power Consumption: 7W
-
Output Current:
-
FET outputs: 1.0A per point at 55°C, 1.5A per point at 30°C
-
Relay outputs: 2.0A per point
-
-
Isolation Voltage: 1500V AC
-
Shock Resistance: 10G operational, 20G non-operational
-
Vibration Resistance: 5 Hz to 2 kHz, 0.381 mm peak-to-peak
Applications
-
Small machine control
-
Conveyor systems
-
Packaging equipment
-
HVAC systems
-
Water treatment monitoring
Why Choose the 1761-L32BBB?
-
Compact Design: Ideal for tight-space installations.
-
Flexible I/O: Mixed outputs support varied load needs.
-
Reliable Memory: EEPROM maintains programs without battery.
-
Easy Communication: RS-232 port supports simple programming.
-
Cost-Effective: Offers essential PLC features affordably.
Order Now
The Allen-Bradley 1761-L32BBB MicroLogix 1000 PLC is available and ready to ship globally.
Description
Allen-Bradley 1761-L32BBB
Overview
The Allen-Bradley 1761-L32BBB is a compact MicroLogix 1000 PLC with 32 I/O points, intended for small to medium automation tasks. It features 20 digital inputs, 10 FET outputs, and 2 relay outputs, operating on a 24V DC power supply. With an integrated RS-232 communication port and 1K EEPROM memory, it provides consistent performance for various industrial applications.
Key Features
-
I/O Configuration:
-
20 digital inputs (24V DC)
-
10 FET outputs (24V DC)
-
2 relay outputs (24–125V DC / 0–240V AC)
-
-
Power Supply: 24V DC (20.4–26.4V DC)
-
Memory: 1K EEPROM (approx. 737 instruction words, 437 data words)
-
Communication Port: RS-232 (DF1 protocol)
-
Input Type: Sinking/Sourcing configurable
-
Output Type: Mixed (FET and relay)
-
Mounting: DIN rail or panel mount
-
Dimensions (H x W x D): 3.15 in x 7.87 in x 1.57 in
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
-
Certifications: UL, CSA, CE compliant
Technical Specifications
-
Catalog Number: 1761-L32BBB
-
Input Voltage Range: 14–30V DC
-
Power Consumption: 7W
-
Output Current:
-
FET outputs: 1.0A per point at 55°C, 1.5A per point at 30°C
-
Relay outputs: 2.0A per point
-
-
Isolation Voltage: 1500V AC
-
Shock Resistance: 10G operational, 20G non-operational
-
Vibration Resistance: 5 Hz to 2 kHz, 0.381 mm peak-to-peak
Applications
-
Small machine control
-
Conveyor systems
-
Packaging equipment
-
HVAC systems
-
Water treatment monitoring
Why Choose the 1761-L32BBB?
-
Compact Design: Ideal for tight-space installations.
-
Flexible I/O: Mixed outputs support varied load needs.
-
Reliable Memory: EEPROM maintains programs without battery.
-
Easy Communication: RS-232 port supports simple programming.
-
Cost-Effective: Offers essential PLC features affordably.
Order Now
The Allen-Bradley 1761-L32BBB MicroLogix 1000 PLC is available and ready to ship globally.
