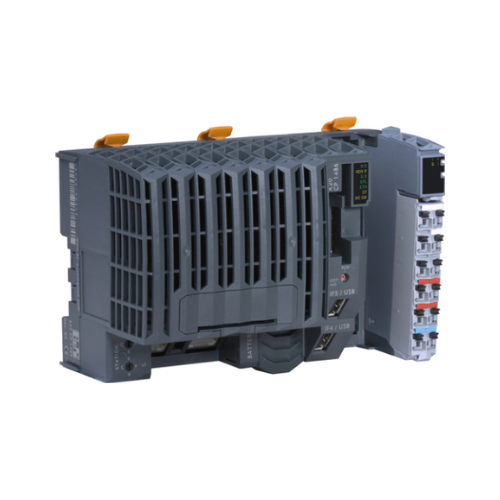

B&R X20CP1586

B&R X20CP1586 | Advanced PLC with Built-In Interfaces

Overview:

The B&R X20CP1586 is a powerful Programmable Logic Controller (PLC) crafted for the X20 system, providing outstanding processing power for tasks needing quick cycle times and significant data processing. With a 1.6 GHz Intel Atom processor and 512 MB DDR2 RAM, this controller suits complex automation tasks. Moreover, it has built-in interfaces like Ethernet Gigabit, POWERLINK, and USB, ensuring flexible connectivity and effective communication in industrial systems.

Key Features:

• High-Performance Processor: Intel Atom E680T, 1.6 GHz, optimized for swift and efficient processing.
• Ample Memory: 512 MB DDR2 RAM for efficient task management and data processing.
• Integrated Interfaces:
  • Ethernet Gigabit: RJ45 interface supporting 10/100/1000 Mbit/s, ensuring quick and stable network communication.
  • POWERLINK: Real-time communication with field devices.
  • USB: Two USB 2.0 Type A ports for peripheral device connections.
• CompactFlash Slot: Enables storage of applications and data on a removable CompactFlash card, facilitating easy updates and maintenance.
• Fanless Design: Silent operation with reduced maintenance, as it eliminates the need for cooling fans.
• Multi-Protocol Support: Integrates seamlessly with various industrial systems using optional communication modules.

Technical Specifications:

• Processor: Intel Atom E680T, 1.6 GHz
• Memory:
  • RAM: 512 MB DDR2 SDRAM
  • User SRAM: 1 MB
• Interfaces:
  • IF1: RS232
  • IF2: Ethernet (RJ45, 10/100/1000 Mbit/s)
  • IF3: POWERLINK (RJ45, 100 Mbit/s)
  • IF4 & IF5: USB 2.0 Type A
  • IF6: X2X Link master
• Power Supply:
  • Input Voltage: 24 VDC (-15% / +20%)
  • Power Consumption: 9.7 W (without interface and USB modules)
• Operating Temperature:
  • Horizontal Mounting: -25 to 60°C
  • Vertical Mounting: -25 to 50°C
• Certifications: CE, UKCA, ATEX Zone 2, UL, DNV, CCS, LR, KR, ABS, BV, KC
• Dimensions: 150 mm (W) x 99 mm (H) x 85 mm (D)
• Weight: 400 g

Applications:

• Industrial Automation: Provides rapid and precise control of complex industrial processes.
• Distributed Control Systems: Ideal for distributed automation architectures, benefiting from integrated communication interfaces.
• Real-Time Applications: Suitable for tasks requiring high-speed processing and real-time execution.
• System Integration: Facilitates seamless communication with various industrial devices and protocols, allowing for flexible system configurations.

Why Choose the B&R X20CP1586?

The B&R X20CP1586 delivers a robust mix of performance, connectivity, and flexibility, making it a top choice for demanding industrial automation needs. Its high-speed processing, multiple built-in interfaces, and compact design allow efficient deployment in various automation settings. Additionally, its expandable communication features and adherence to international standards ensure lasting adaptability and reliability.
