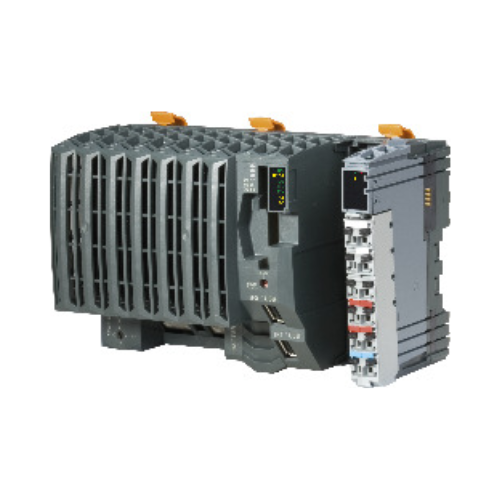

B&R X20CP1585

B&R X20CP1585 | High-Performance PLC for Industrial Automation

Overview

The B&R X20CP1585 is a powerful and compact PLC from the X20 series, equipped with an Intel Atom E640T 1 GHz processor and 256 MB DDR2 SDRAM. Designed for demanding industrial automation applications, it offers a range of integrated interfaces, including Ethernet, POWERLINK, USB, and RS232, facilitating seamless communication and control.

Key Features

• Processor: Intel Atom E640T, 1 GHz

• Memory:

  • 256 MB DDR2 SDRAM

  • 1 MB SRAM for user applications

• Interfaces:

  • Ethernet: 1x RJ45, 10/100/1000 Mbit/s

  • POWERLINK: 1x RJ45, 100 Mbit/s

  • USB: 2x Type A, supporting USB 1.1/2.0

  • RS232: 1x via 12-pin terminal block

• Expansion Slot: 1 slot for modular interface expansion

• CompactFlash Slot: For removable application memory

• Real-Time Clock: Nonvolatile, with ±10 ppm accuracy at 25°C

• Integrated I/O Processor: Handles I/O data points in the background

• Electrical Isolation: Between Ethernet, POWERLINK, X2X Link, and other interfaces

Technical Specifications

• Processor:

  • Type: Intel Atom E640T

  • Clock Frequency: 1 GHz

  • L1 Cache: 24 kB data, 32 kB program

  • L2 Cache: 512 kB

• Memory:

  • RAM: 256 MB DDR2 SDRAM

  • User RAM: 1 MB SRAM

  • Remanent Variables: Up to 256 kB

• Interfaces:

  • Ethernet (IF2): 1x RJ45, 10/100/1000 Mbit/s, Auto-MDI/MDIX

  • POWERLINK (IF3): 1x RJ45, 100 Mbit/s, supports poll response chaining mode (PRC)

  • USB (IF4 & IF5): 2x Type A, max 0.5 A output current each

  • RS232 (IF1): Connection via 12-pin terminal block, max 115.2 kbit/s

  • X2X Link Master (IF6): For real-time I/O communication

• Power Consumption: Max. 3 W

• Operating Conditions:

  • Temperature:

    • Horizontal Mounting: -25°C to +60°C

    • Vertical Mounting: -25°C to +50°C

  • Relative Humidity: 5% to 95%, non-condensing

• Dimensions: 150 mm (W) x 99 mm (H) x 85 mm (D)

• Weight: Approx. 400 g

• Certifications: CE, UKCA, UL, ATEX Zone 2, DNV, among others

Applications

• Industrial Automation: High-speed processing for complex control tasks

• Machine Control: Precise control of machinery with real-time data processing

• Process Automation: Integration into various industrial communication networks

• Data Acquisition: Efficient handling and processing of large data sets from sensors and devices

Why Choose the B&R X20CP1585?

• High Performance: Intel Atom 1 GHz processor ensures rapid and reliable operations

• Versatile Connectivity: Multiple integrated interfaces for flexible communication options

• Expandable: Modular design with an expansion slot for additional interfaces

• Compact Design: Space-saving form factor suitable for various installation environments

• Reliable Operation: Designed for industrial conditions with robust construction and certifications

Order Now

Available for immediate worldwide shipping. Contact us for pricing, availability, and technical support to ensure seamless integration into your automation systems.
