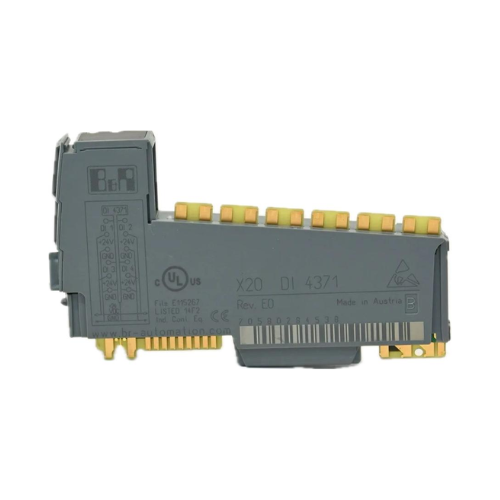

B&R X20DI4371 | 4-Channel Digital Input Module – 24V DC, Sink, X20 Series

Overview

The B&R X20DI4371 is a 4-channel digital input module from the X20 series, designed for 24V DC sink connections with 3-wire configurations. It features configurable input filters and supports counter functions up to 1 kHz, making it ideal for precise signal acquisition in industrial automation systems.

Key Features

Input Channels: 4 digital inputs
Input Type: Sink connection
Input Voltage: 24V DC (-15% / +20%)
Input Current: Typically 3.75 mA per channel
Input Filter: Hardware filter ≤100 μs; software filter configurable from 0 to 25 ms in 0.2 ms increments
Connection Type: 3-wire connections
Counter Inputs: 4 counters with up to 1 kHz frequency
Sensor Power Supply: Provides 24V DC and GND with a maximum summation current of 0.5 A
Diagnostics: Module run/error status via LED indicators
Mounting: DIN rail compatible with X20 terminal blocks

Technical Specifications

Model Number: X20DI4371
Series: X20
Input Voltage Range: 24V DC (-15% / +20%)
Input Current: Typically 3.75 mA per channel
Input Resistance: Approximately 6.4 kΩ
Switching Thresholds:
- Low: <5 VDC
- High: >15 VDC
Isolation Voltage: 500 Veff between channel and bus
Power Consumption:
- Bus: 0.14 W
- Internal I/O: 0.59 W
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95%, non-condensing
Certifications: CE, UL, ATEX Zone 2, DNV GL, GOST-R
Dimensions: Standard X20 module dimensions
Weight: Approximately 100 g

Applications

Industrial Automation: Reliable digital signal acquisition for control systems
Machine Control: Interface for sensors and switches in machinery
Process Monitoring: Collecting status signals from various process equipment
Building Automation: Integration of digital inputs from building management systems

Why Choose B&R X20DI4371?

Configurable Input Filtering: Software-adjustable filters enhance signal quality and noise immunity
Integrated Counter Functions: Supports event counting up to 1 kHz for precise monitoring
Flexible Wiring: 3-wire connections simplify sensor integration
Robust Design: Engineered for industrial environments with compliance to multiple international standards

Order Now

Available for immediate worldwide shipping. Contact us for compatible terminal blocks, bus modules, and technical support to ensure seamless integration into your automation systems.
