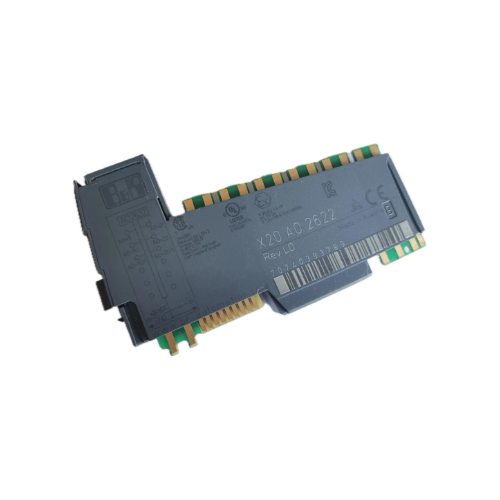

B&R X20AO2622 | Dual-Channel Analog Output Module with Configurable Voltage and Current Signals
Overview:
The B&R X20AO2622 is a flexible analog output module designed for the X20 system, offering two analog outputs that can be separately configured for voltage or current signals. This adaptability suits various industrial applications needing precise analog signal management.
Key Features:
- Dual Analog Outputs: Offers two outputs configurable independently for voltage or current signals.
- Configurable Signal Types: Each output supports ±10 V or 0 to 20 mA signals, allowing flexibility to meet different application requirements.
- High Resolution: Includes a 13-bit digital converter resolution, ensuring precise and accurate signal results.
- Compact Design: Features a slim profile, optimizing space in control cabinets.
- Seamless Integration: Built for easy integration into the B&R X20 system, promoting efficient system expansion and customization.
Technical Specifications:
- Number of Outputs: 2
-
Signal Types: Individually configurable for each channel:
- Voltage: ±10 V
- Current: 0 to 20 mA
- Digital Converter Resolution: 13-bit
- Output Settling Time: 200 µs for all outputs
-
Load Resistance:
- Voltage Output: ≥ 1 kΩ
- Current Output: ≤ 500 Ω
- Power Consumption: Approximately 2 W
- Operating Temperature: 0 to 60°C
- Storage Temperature: -25 to 85°C
- Relative Humidity: 5% to 95%, non-condensing
- Dimensions: Standard X20 module size
- Mounting: DIN rail compatible
Applications:
- Industrial Automation: Controls analog actuators and devices needing precise voltage or current signals.
- Process Control: Manages analog control loops in various process settings, ensuring precise process variable adjustments.
- Machine Control: Interfaces with analog components in machinery, supporting precise control and monitoring.
- Building Automation: Regulates analog devices in building management systems, such as HVAC controls.
Why Choose the B&R X20AO2622?
The B&R X20AO2622 offers a flexible and precise solution for applications needing analog signal outputs. Its capacity to configure each channel for either voltage or current signals, combined with high-resolution output, ensures adaptability and accuracy across different industrial scenarios. The module’s compact design and seamless integration into the X20 system make it a valuable asset for expanding and customizing automation systems.
