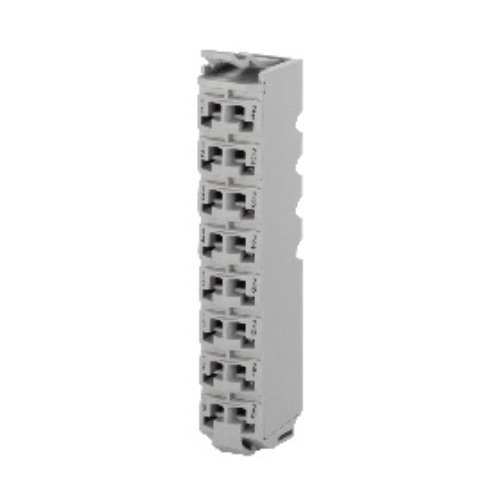

B&R X20TB1F | Compact and Durable Terminal Block Module for Industry
Overview:
The B&R X20TB1F is a high-efficiency terminal block module designed for secure and effective wiring within the X20 automation system. With push-in technology, it enables tool-free wiring, reducing installation time while ensuring strong and reliable electrical connections. The module is crafted to withstand industrial settings, making it a vital component for automation and control systems.
Key Features:
- 16-Pin Terminal Block: Features 16 push-in terminals for streamlined wiring in automation setups.
- Tool-Free Wiring: Equipped with push-in technology, allowing quick and secure connections without additional tools.
- Compact and Robust Design: Designed for space-efficient installation while ensuring maximum durability in industrial settings.
-
Voltage and Current Capacity:
- Supports an operating voltage of 24 VDC (max 50 VDC).
- Nominal current of 2 A per contact, ensuring reliable electrical performance.
-
Versatile Wire Compatibility:
- Solid wires: 0.08 to 1.5 mm² (28 to 16 AWG).
- Fine-stranded wires: 0.25 to 1.5 mm² (24 to 16 AWG).
-
Labeling and Testing Support:
- Each terminal can be labeled, simplifying maintenance and diagnostics.
- Test access for standard probes, enabling quick evaluations.
-
Compliance with Industrial Standards:
- Certified for CE, cULus, ATEX Zone 2, GL, LR, and GOST-R.
Technical Specifications:
- Number of Terminals: 16
- Connection Type: Push-in, tool-free wiring
-
Wire Sizes:
- Solid Wires: 0.08 to 1.5 mm² (28 to 16 AWG)
- Fine-Stranded Wires: 0.25 to 1.5 mm² (24 to 16 AWG)
- Nominal Voltage: 24 VDC (maximum 50 VDC)
- Nominal Current: 2 A per contact
- Temperature Range: -25°C to 60°C
- Protection Rating: IP20
- Certifications: CE, cULus, ATEX Zone 2, GL, LR, GOST-R
Applications:
- Industrial Automation: Provides a reliable and organized wiring interface for various automation systems.
- Process Control: Ensures efficient wiring connections for process control environments.
- Machine Control Panels: Used in compact control cabinets, optimizing space and wiring organization.
- Factory Automation: Supports high-speed wiring requirements in large-scale industrial applications.
Why Choose the B&R X20TB1F?
The B&R X20TB1F terminal block is a vital component for industrial automation systems, offering secure, efficient, and tool-free wiring. With high durability, labeling options, and compliance with major industry certifications, it provides reliable electrical connections for mission-critical automation applications.
Order Now
Fast shipping and worldwide delivery available.
Discover scalable and high-performance PLC solutions for precise control in industrial automation.
Explore the complete B&R portfolio, including HMIs, motion control, servo drives, and more, all available for worldwide shipping.
