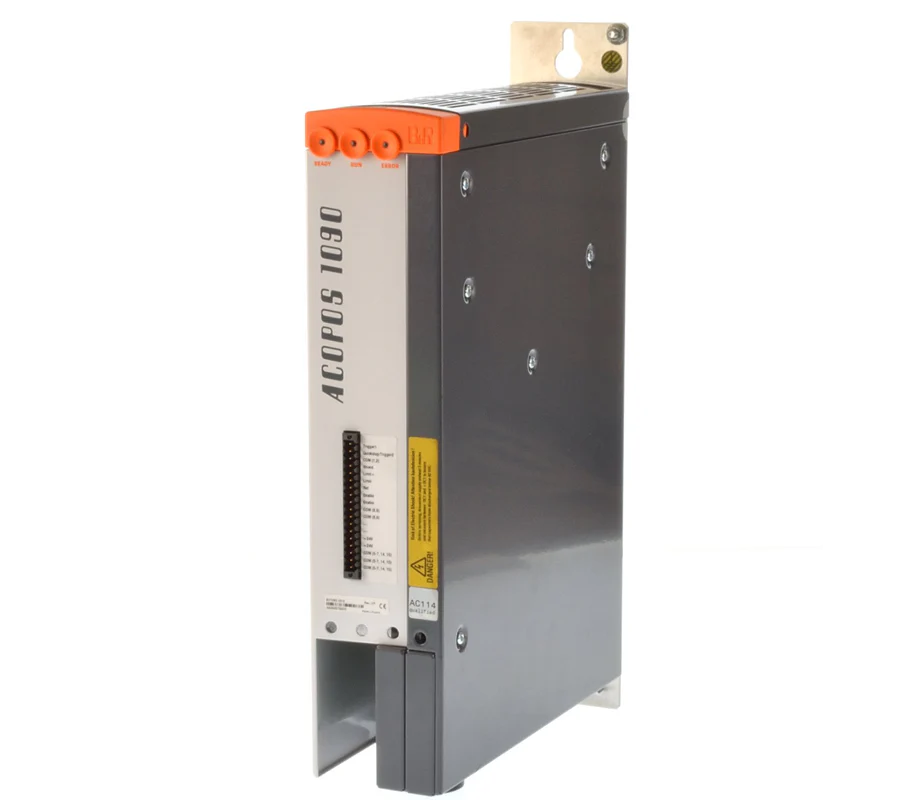

B&R 8V1090.00-2 | ACOPOS Servo Drive – 4 kW, 8.8 A, 3x 400–480V AC

Overview

The B&R 8V1090.00-2 is a high-performance ACOPOS servo drive tailored for precise motion control in industrial automation. Delivering 4 kW of power with an output current of 8.8 A, this drive operates on a 3-phase 400–480V AC supply. Its modular setup includes an integrated line filter, braking resistor, and electronic safe restart inhibit for efficient, secure operation.

Key Features

Power Output: 4 kW
Output Current: 8.8 A continuous, 24 A peak
Input Voltage: 3x 400–480V AC ±10%
Integrated Components:
- Line filter for electromagnetic interference reduction
- Braking resistor for rapid deceleration
- Electronic safe restart inhibit for enhanced safety
Modular Design: Accommodates up to four plug-in modules for expanded functionality
Connections: All connections utilize plug-in connectors for straightforward installation
Protection Functions: Overload, short circuit, and ground fault protection

Technical Specifications

Model Number: 8V1090.00-2
Series: ACOPOS
Input Frequency: 50/60 Hz ±4%
Installed Load: Max. 10 kVA
Starting Current at 400V AC: 7 A
DC Bus Capacitance: 470 µF
24 VDC Supply Input Voltage: 24 VDC ±25%
Motor Connection:
- Continuous Current: 8.8 A
- Peak Current: 24 A
- Max. Output Frequency: 598 Hz
Braking Resistor:
- Peak Power Output: 7 kW
- Continuous Power: 200 W
Limit Switch and Reference Inputs: 3 inputs, sink wiring
Operating Temperature: 5°C to 40°C (nominal), up to 55°C with derating
Installation Elevation: Up to 500 m (nominal), up to 2000 m with derating
Degree of Protection: IP20
Dimensions: 375 mm (H) x 70.5 mm (W) x 235.5 mm (D)
Weight: Approximately 4.4 kg
Certifications: CE, cULus, KC, FSC

Applications

Industrial Automation: Precise control of machinery and production lines
Robotics: Accurate motion control for robotic arms and automated systems
Packaging Machinery: Efficient handling of packaging processes requiring dynamic motion
Material Handling: Control of conveyors, lifts, and sorting systems

Why Choose the B&R 8V1090.00-2?

Integrated Components: Built-in line filter and braking resistor simplify installation and reduce the need for external components
Modular Flexibility: Supports up to four plug-in modules for customizable functionality
Safety Features: Electronic safe restart inhibit enhances operational safety
Robust Protection: Comprehensive protection against overloads, short circuits, and ground faults

Order Now

Available for immediate worldwide shipping. Contact us for compatible plug-in modules, accessories, and technical support to ensure seamless integration into your automation systems.
