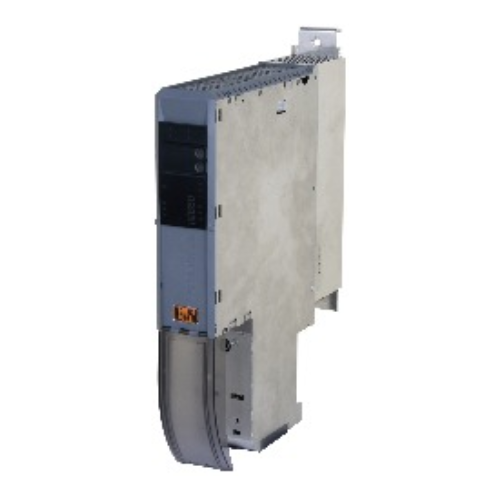

B&R 8B0C0320HW00.002-1 | ACOPOSmulti Auxiliary Supply Module, 32 A, Wall Mounting
Overview:
The B&R 8B0C0320HW00.002-1 is an ACOPOSmulti auxiliary supply module designed to provide a steady 24 VDC output with a continuous current of 32 A. This module is optimized for wall mounting and includes extensive protective measures to ensure reliable operation in industrial automation environments.
Key Features:
- High Continuous Power: Delivers up to 800 W of continuous power at 24 VDC.
- Robust Output: Provides a continuous current of 32 A on the primary output and an additional 5 A on a secondary output.
- Extensive Protective Measures: Features no-load, overload, short-circuit, feedback, and overtemperature protection to ensure safe and reliable operation.
- Flexible Mounting: Designed for wall mounting, suitable for various installation configurations.
- Global Certifications: Complies with CE, UKCA, UL, and KC standards, ensuring adherence to international safety and performance requirements.
Technical Specifications:
-
DC Bus Connection:
- Nominal Voltage: 750 VDC
- Operating Range: 260 to 800 VDC
- Continuous Power Consumption: Max. 880 W
- Power Dissipation: 22 W (0% continuous power), 35 W (50% continuous power), 80 W (100% continuous power)
-
24 VDC Output:
- Continuous Power: 800 W
- Output Voltage: 24 VDC ±6%
- Continuous Current: 32 A
- Residual Ripple: Typically 50 mVSS
-
Operating Conditions:
- Ambient Temperature: Nominal 5 to 40°C, Maximum 55°C
- Installation Elevation: Up to 500 m without derating; derating applies above 500 m
- Degree of Protection: IP20
-
Mechanical Properties:
- Width: 53 mm
- Height: 317 mm
- Depth: 263 mm
- Weight: Approximately 3.2 kg
Applications:
- Industrial Automation: Provides reliable auxiliary power to various automation components, ensuring continuous operation.
- Process Control Systems: Supplies stable power to control systems, enhancing process reliability and efficiency.
- Machine Tools: Delivers consistent power to machine tool systems, supporting precision and performance.
- Robotics: Powers robotic systems, facilitating accurate and dependable functionality.
Why Choose the B&R 8B0C0320HW00.002-1?
The B&R 8B0C0320HW00.002-1 auxiliary supply module offers a robust and reliable solution for providing auxiliary power in industrial settings. Its high continuous power output, extensive protective features, and compliance with international standards make it a trusted choice for ensuring the uninterrupted operation of critical systems.
Order Now
Fast shipping and worldwide delivery available.
Brand-New, Authentic, Factory-Sealed Components
At PLCVERSE, every item we offer is guaranteed to be brand-new, original, and delivered in its factory-sealed packaging. Our parts are sourced with strict quality control to ensure you receive genuine automation components that meet top industry reliability and performance standards.
1-Year Warranty Coverage
Every new product purchased from PLCVERSE includes a full 1-year warranty. We stand behind the quality and durability of our automation components, providing protection against manufacturing defects under normal use. Our commitment is to ensure you receive dependable, high-performance parts with complete peace of mind.
