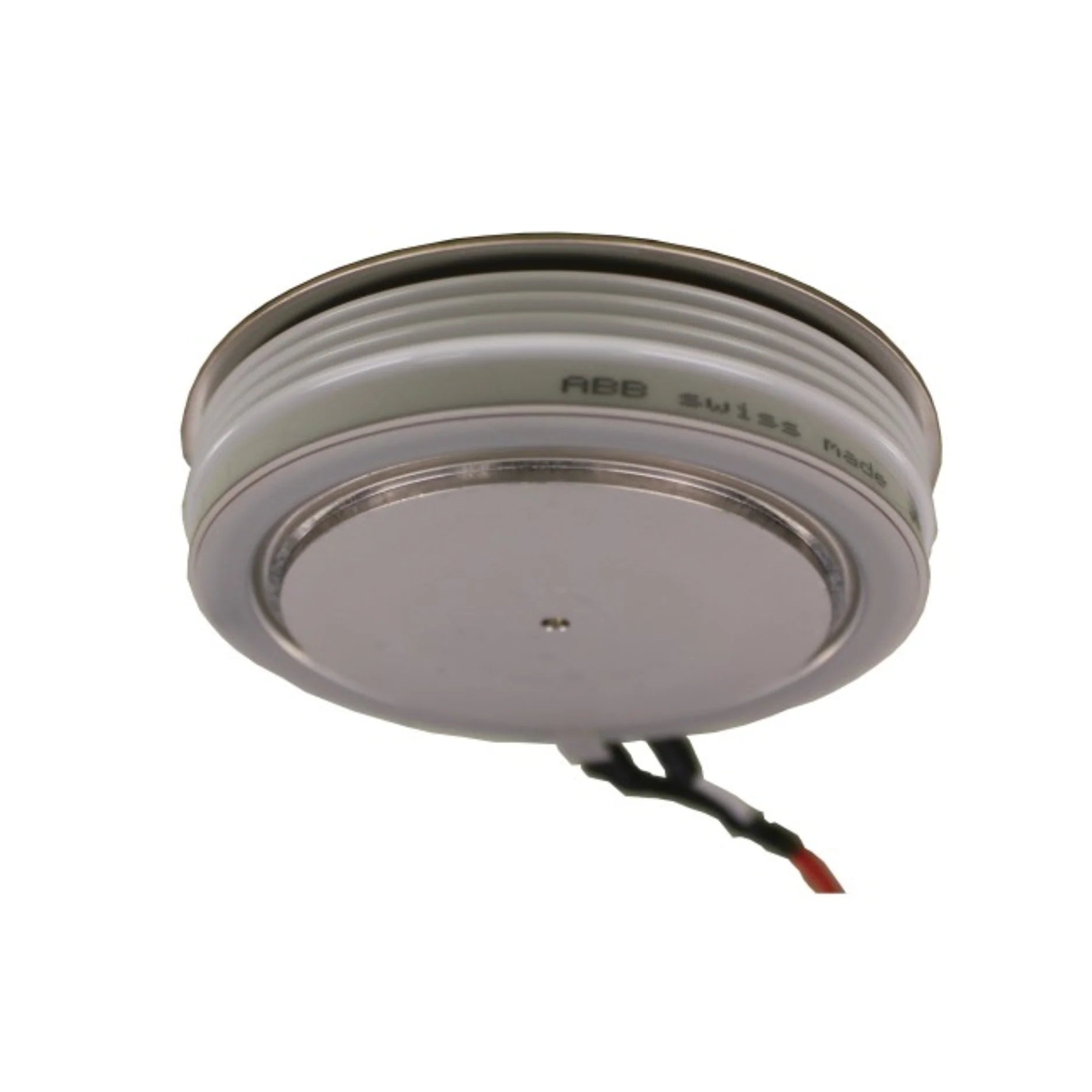

ABB 5SGA15F2502
Overview
The ABB 5SGA15F2502 is a high-performance asymmetric Gate Turn-Off (GTO) thyristor rated at 1500 A and 2500 V. Designed for high-power applications, this component features patented free-floating silicon technology, low on-state and switching losses, and an annular gate electrode for enhanced reliability and control. Built in an industry-standard 75 mm housing, it withstands cosmic radiation and is ideal for demanding industrial and traction applications.
Key Features
Rated current: 1500 A
Blocking voltage: 2500 V
Asymmetric GTO design
Low conduction and switching losses
Free-floating silicon structure
Annular gate electrode for improved current distribution
Withstands cosmic radiation
Standard 75 mm package
Robust mechanical construction for high mounting force (15 kN)
Designed for high-power inverters, drives, and traction systems
Technical Specifications
Product ID: 5SGA15F2502
Type: Asymmetric Gate Turn-Off Thyristor (GTO)
VDRM: 2500 V
ITGQM: 1500 A
Package Diameter: 75 mm
Package Height: 26 mm
Gross Weight: 0.6 kg
Mounting Force: 15 kN
Housing: Industry-standard round package
Application Areas: Traction converters, industrial drives, power inverters
Withstand Rating: High immunity to cosmic radiation
Applications
High-power industrial inverters
Locomotive and traction systems
Electric propulsion systems
Static VAR compensators
Heavy-duty DC choppers
Why Choose the 5SGA15F2502
Proven ABB semiconductor quality
High current and voltage capability
Efficient switching with reduced losses
Mechanical and thermal robustness
Compliant with demanding industrial environments
Order Now
The ABB 5SGA15F2502 GTO thyristor is available for immediate purchase. Built for precision and durability in high-power applications, with worldwide shipping available.
Description
ABB 5SGA15F2502
Overview
The ABB 5SGA15F2502 is a high-performance asymmetric Gate Turn-Off (GTO) thyristor rated at 1500 A and 2500 V. Designed for high-power applications, this component features patented free-floating silicon technology, low on-state and switching losses, and an annular gate electrode for enhanced reliability and control. Built in an industry-standard 75 mm housing, it withstands cosmic radiation and is ideal for demanding industrial and traction applications.
Key Features
Rated current: 1500 A
Blocking voltage: 2500 V
Asymmetric GTO design
Low conduction and switching losses
Free-floating silicon structure
Annular gate electrode for improved current distribution
Withstands cosmic radiation
Standard 75 mm package
Robust mechanical construction for high mounting force (15 kN)
Designed for high-power inverters, drives, and traction systems
Technical Specifications
Product ID: 5SGA15F2502
Type: Asymmetric Gate Turn-Off Thyristor (GTO)
VDRM: 2500 V
ITGQM: 1500 A
Package Diameter: 75 mm
Package Height: 26 mm
Gross Weight: 0.6 kg
Mounting Force: 15 kN
Housing: Industry-standard round package
Application Areas: Traction converters, industrial drives, power inverters
Withstand Rating: High immunity to cosmic radiation
Applications
High-power industrial inverters
Locomotive and traction systems
Electric propulsion systems
Static VAR compensators
Heavy-duty DC choppers
Why Choose the 5SGA15F2502
Proven ABB semiconductor quality
High current and voltage capability
Efficient switching with reduced losses
Mechanical and thermal robustness
Compliant with demanding industrial environments
Order Now
The ABB 5SGA15F2502 GTO thyristor is available for immediate purchase. Built for precision and durability in high-power applications, with worldwide shipping available.
